Installing a Secondary Battery Pack in the UltraBay
8
760
CD

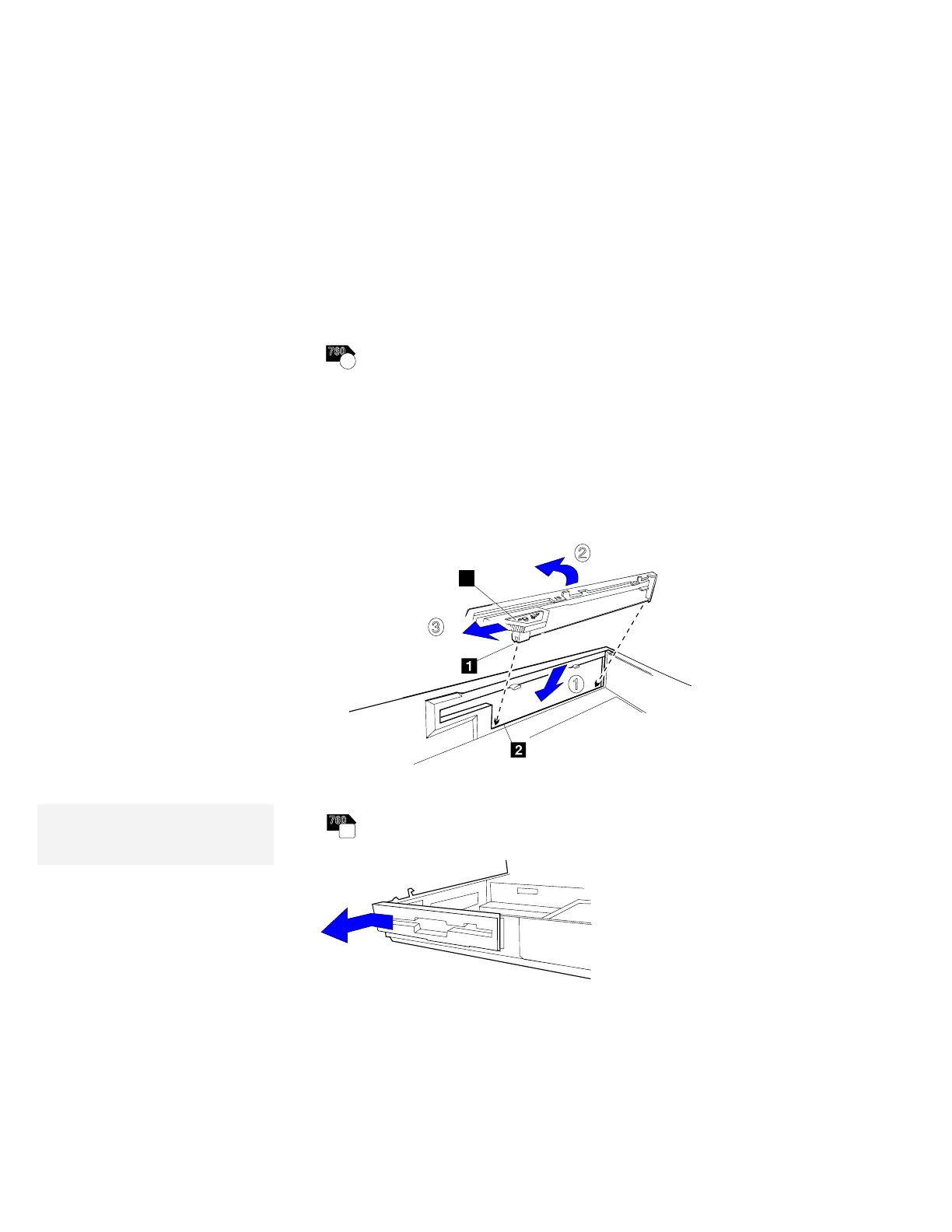

Install the blank front bezel on the
inside
of the computer.
a) Fit notch 1 on the lower portion of the bezel into the
catch at the bottom of the drive bezel slot 2 .
b) Push the upper portion of the bezel into the slot until it
snaps into place.
c) Slide the lever 3 on the bezel to the left as shown.
The following figure shows the installation as seen from the
inside of the computer.
1
2
3
3
9
Go to step 12 on page 141.
Note:
Keep the diskette drive bezel for
future use.
10
760
FDD
Slide the diskette drive bezel slightly to the left and
remove it by pulling toward the front.
140 IBM ThinkPad 760E, 760ED, or 760EL User's Guide
