Using the Enhanced Video/MPEG Functions
S-Video Out
Video Out
To microphone jack
of the computer
Audio-Out Left
Audio-Out Right
A
B
or
Cables, except for the video in-out cable 2 , are not
supplied with the computer.

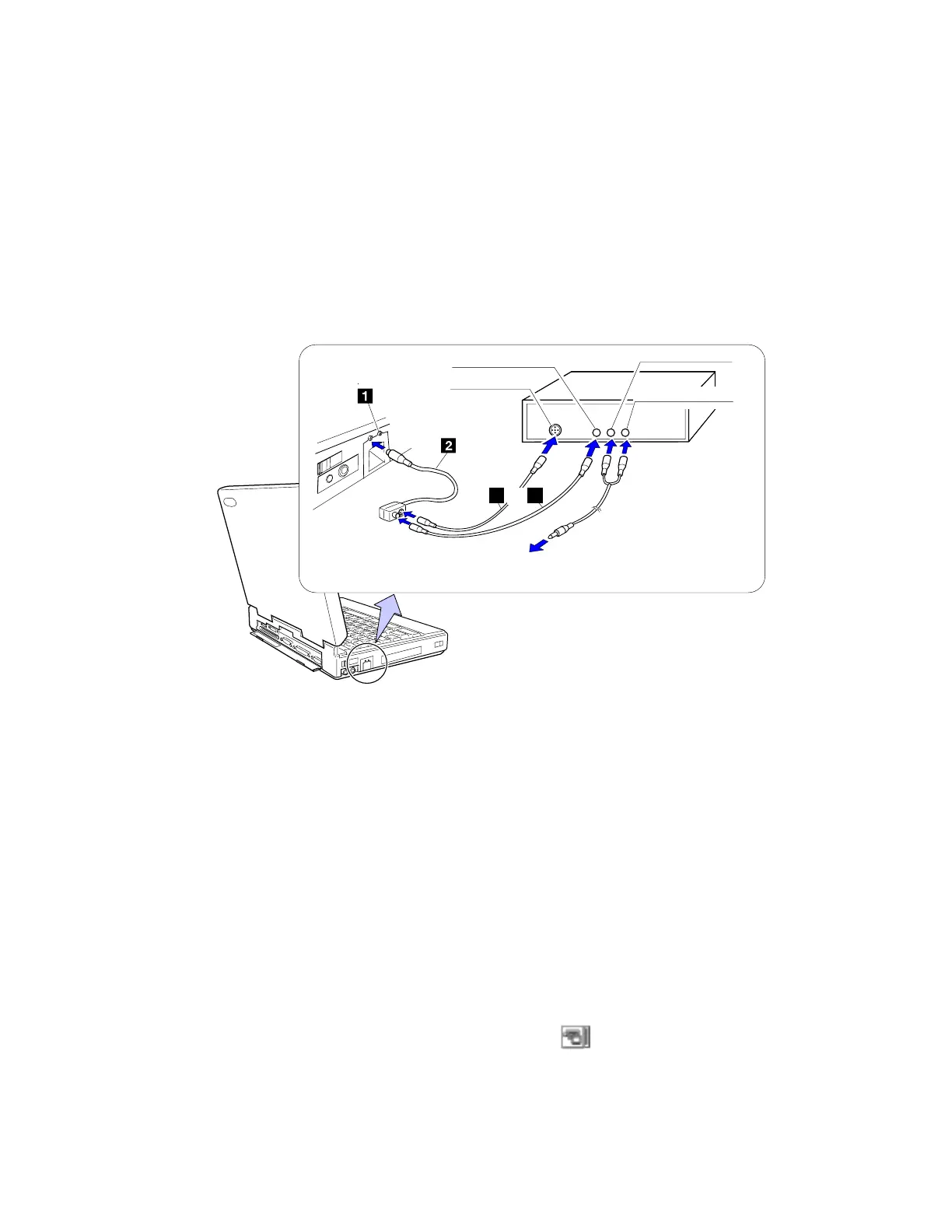

If you are using video equipment with S-video output,
connect the S-video port of the video in-out cable to the
S-video-out connector of your video equipment A for
better picture quality.
If you are
not
using video equipment with S-video output,
connect the composite video port of the video in-out cable
and the video-out port of your video equipment B .
If your video equipment has only one audio output
connector, use the left-audio connector on the audio cable
for connection.
3
Check the Enhanced Video status.
a) Open the ThinkPad Features program.
b) Select the Enhanced Video (
) icon.
c) If Video capture/MPEG status is enabled, go to step 5 on
page 77.
If not, continue to the next step.
76
IBM ThinkPad 760E, 760ED, or 760EL User's Guide
