Table 15: Drive rear layout (continued)
Item number Item name and details
6 Dual port 8 Gbps or 16 Gbps for 60F Fibre Channel ports
7
Fibre Channel: 8 Gb label, or 16 Gb label for 60F
8 Handle
Note: All EH7/EH8/55F/60F drives are encryption-capable.
Drive LED indicators
The drive LED indicators are identied in Figure 4 on page 31 and their functions and meanings are listed
in Table 16 on page 31.
a05m0368
Port
0
Port
1
8Gb
0
1
3592
EH8
3
4
5
6
1
2

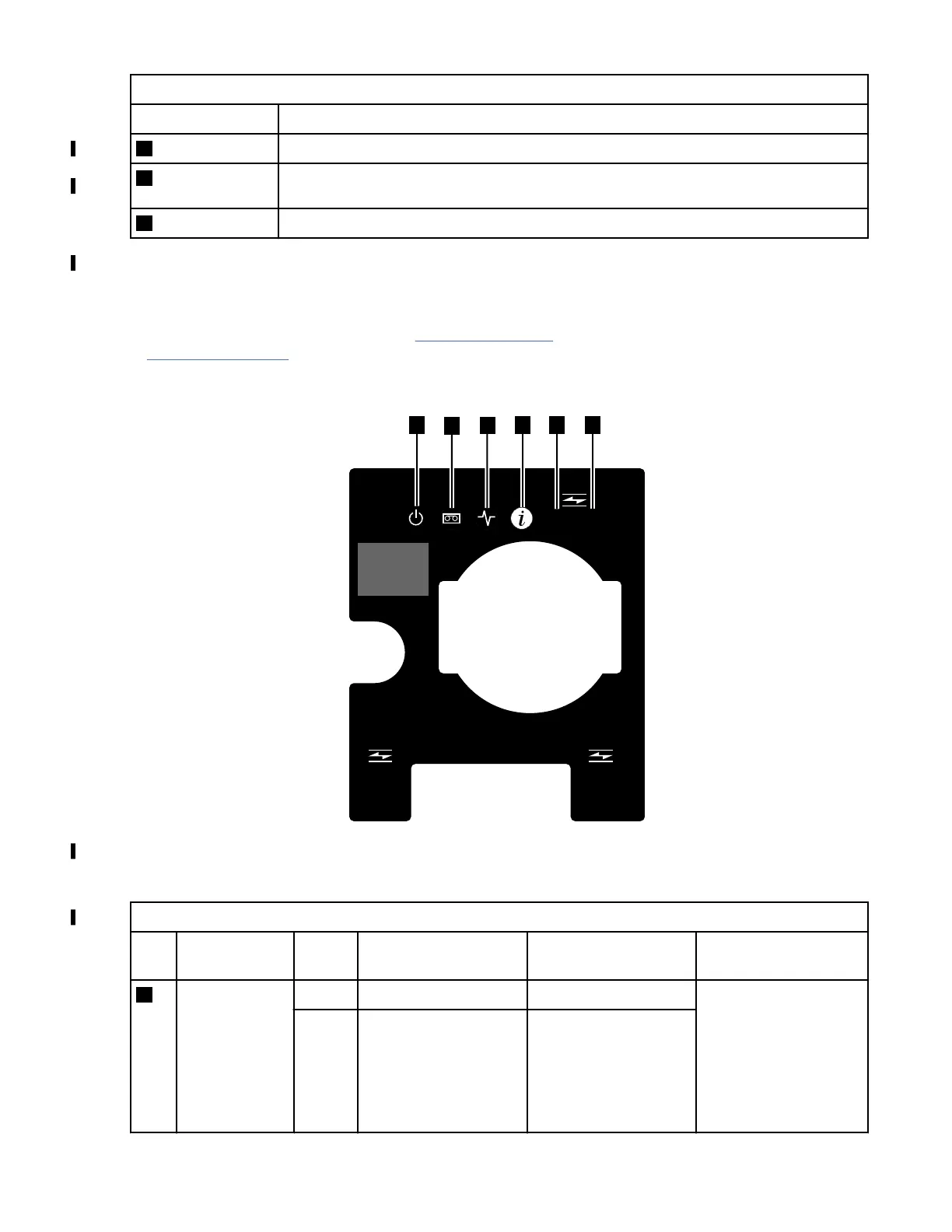

Figure 4: LED locations for EH7/EH8/55F/60F
Table 16: LED indicators for EH7/EH8/55F/60F
LED LED name LED
color
LED-on indicates: Flashing LED
indicates:
No LED indicates:
1 Drive power Yellow N/A N/A +5 V dc or +12 V dc is
missing at drive
Green +5 V dc or +12 V dc is
present at drive
During reset, LED
might flash, indicating
drive is attempting to
unload cartridge
before actual reset
process
Introduction 31
