2 PANEL DESCRIPTION

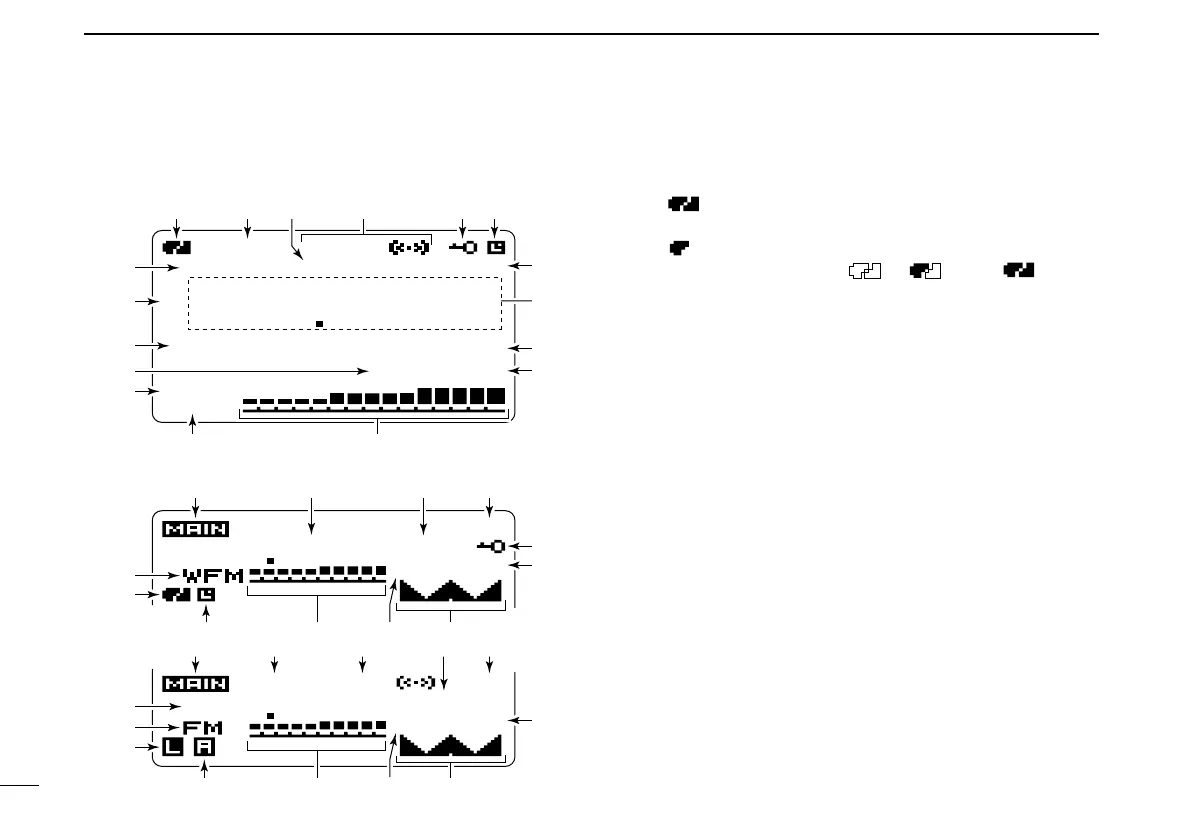

■ Function display
qBATTERY INDICATOR (pgs. 10, 12)
➥ “ ” (battery indicators) appear when the Li-Ion bat-
tery pack is attached.
➥ “ ” appears when the battery pack must be charged.
➥ The indicators show “ ,” “ ” and “ ” in se-
quence while charging the attached battery pack.
wDUPLEX INDICATORS (p. 29)
“+DUP” appears when plus duplex, “–DUP” appears when
minus duplex is selected.
ePRIORITY WATCH INDICATOR (p. 83)
Appears when priority watch is in use.
rTONE INDICATORS
• While operating in FM mode;
➥ “TONE” appears while the subaudible tone encoder is
in use. (pgs. 29, 106)
➥ “TSQL” appears while the tone squelch function is in
use. (p. 110)
➥ “DTCS” appears while the DTCS squelch function is in
use. (p. 110)
➥ “S” appears with the “TSQL” or “DTCS” indicator
while the pocket beep function
(with CTCSS or DTCS) is
in use. (p. 111)
• While operating in DV mode;
➥ “DSQL” appears while the call sign squelch function is
in use. (p. 110)
➥ “CSQL” appears while the digital code squelch function
is in use. (p. 110)
