■ MB-75 installation
An optional MB-75 flush mount kit is available for mounting
the transceiver to a flat surface such as an instrument panel.
KEEP the transceiver and microphone at least 1 m (3.3 ft)
away from the vessel’s magnetic navigation compass.
q Using the attached template, carefully cut a hole into
the instrument panel (or wherever you plan to mount the
transceiver).

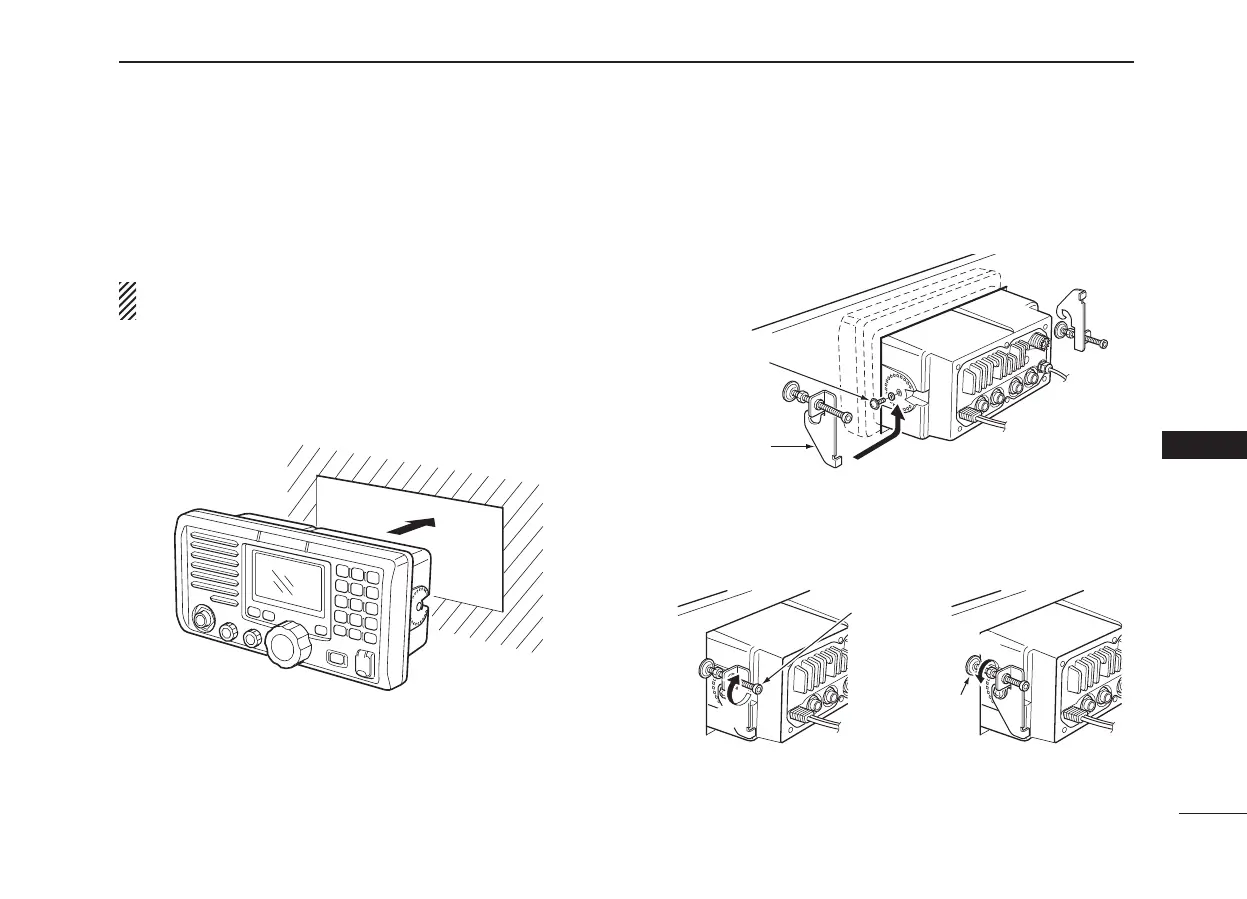

w Slide the transceiver through the hole as shown below.
e Attach the 2 supplied bolts (M5 × 8 mm) on either side of
the IC-M604.
r Attach the clamps on either side of the IC-M604.
• Make sure that the clamps align parallel to the IC-M604’s body.
t Tighten the end bolts on the clamps (rotate clockwise) so
that the clamps press firmly against the inside of the in
-
strument control panel.
y Tighten the locking nuts (rotate counterclockwise) so that
the IC-M604 is securely mounted in position as below.
u Connect the antenna and power cable, then return the
instrument control panel to its original place.
