95
12
CONNECTIONS AND MAINTENANCE
New2001
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

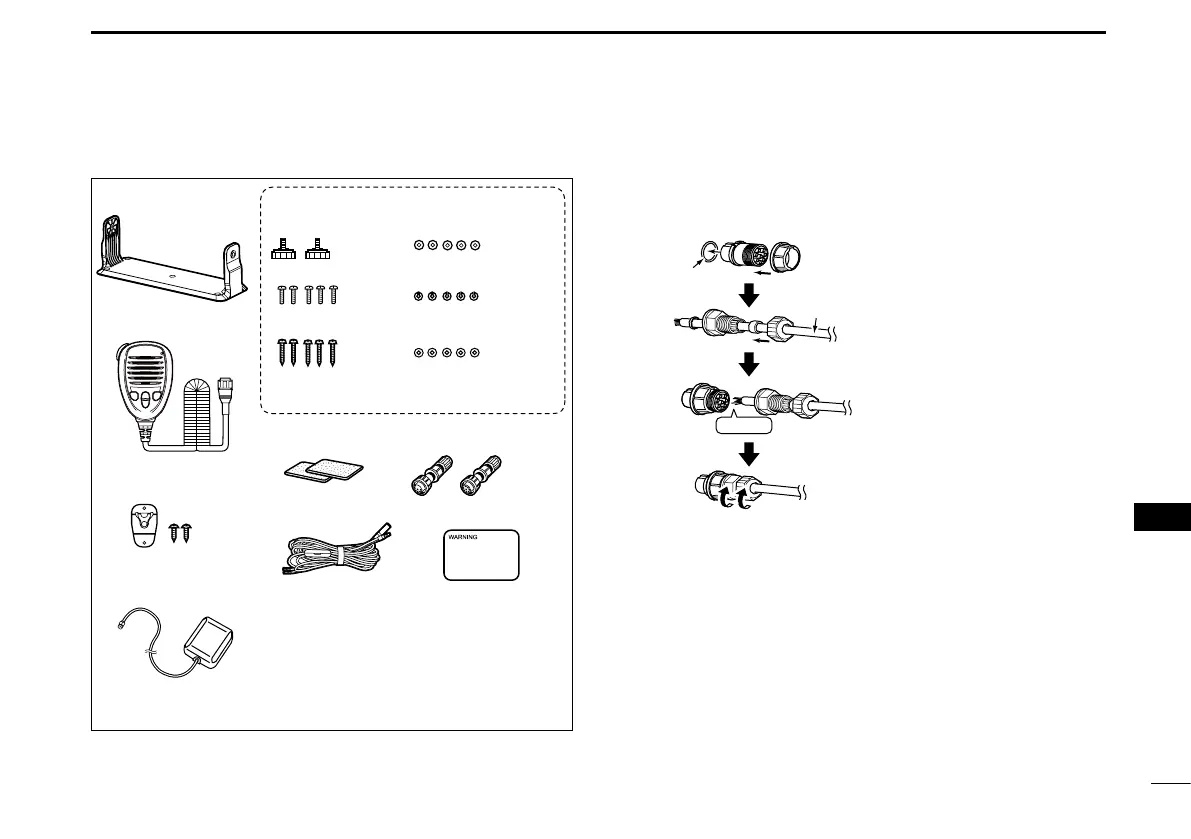

D Accessory connectors set up
The accessory connectors are used on the accessory
cables.
*
2
Be sure to set this ring to keep the waterproof capability.
Solder
ACC Cable
These illustrations are for the
8-pin connector.
■ Supplied accessories
Mounting bracket
For the mounting bracket
Knob bolts Flat washers (M5)
Screws (M5×20 mm)
Spring washers (M5)
Microphone
Microphone hanger
and screws (3×16 mm)
Sponges Accessory connectors
6-pin 8-pin
DC power cable
(OPC-1174A)*
1
*
1
Used for the
transceiverʼs
operation check.
(12 V DC only)
*
2
GPS antenna
Screws (5×20 mm) Nuts (M5)
Warning sticker*
2
*
2
For only the USA
version.
To Next Page
