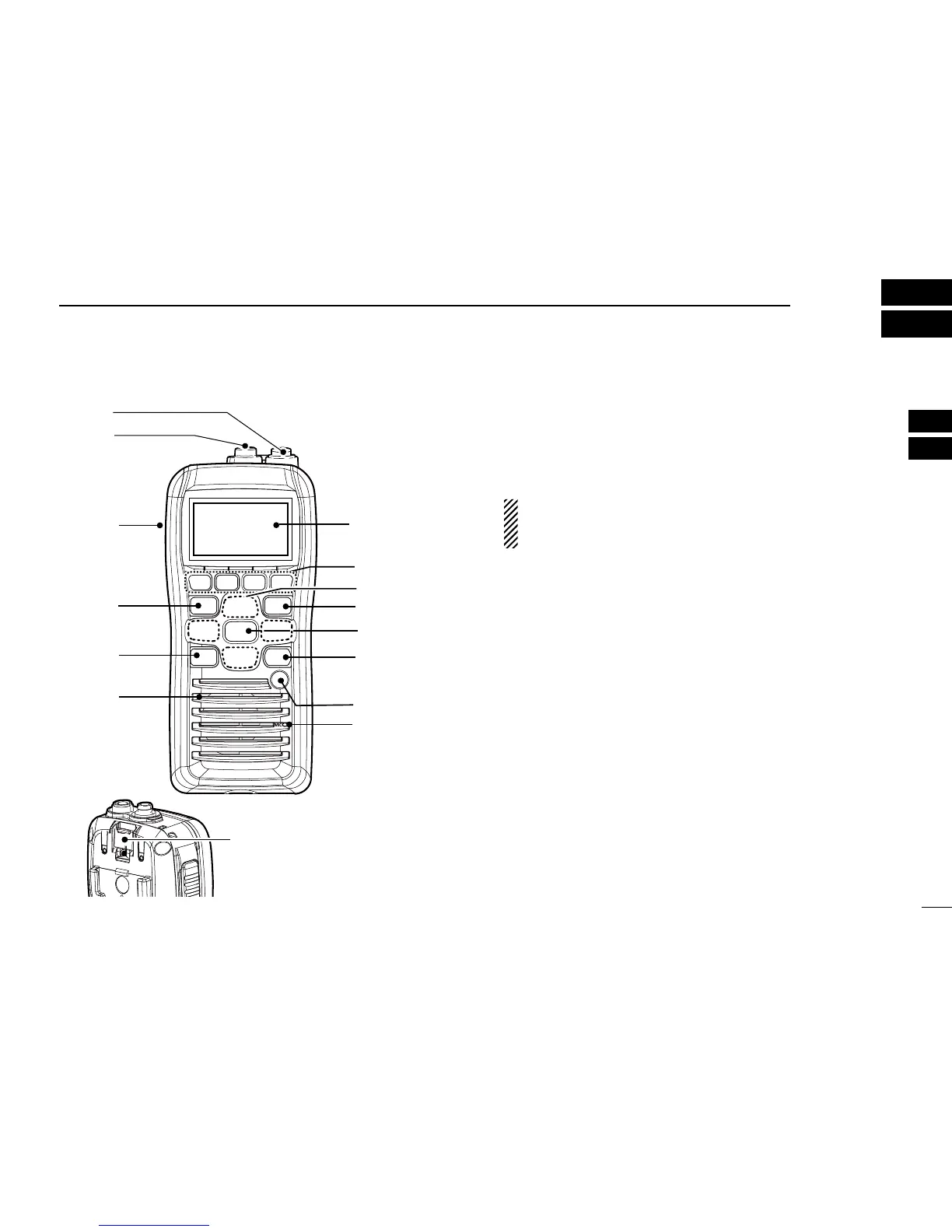

PANEL DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Front, top, side and rear panels ■
Distress button
(p. iii)
Function
display
(pp. 6, 7)
Microphone
t
r
e
y
w
q
!0
i
u
o
Speaker
!1
/+%
q ANTENNA CONNECTOR (p. 2)
Connects the supplied antenna.
w
SPEAKER-MICROPHONE CONNECTOR [SP MIC] (p. 25)
Connects the optional external speaker-microphone.
NOTE: Attach the [SP MIC] cap when the optional
speaker-microphone is not used. Otherwise, water will
get into the transceiver.
e PTT SWITCH [PTT]
Push and hold to transmit; release to receive. (p. 10)
r MENU KEY
Push to enter the Menu mode to select from the following
menus:
Adjustment Mode, Inspection Mode, DSC Calls, DSC
Settings, Radio Settings, Configuration, MMSI/GPS Info, MOB,
Waypoint or GPS Status.
Continued on the next page.
