BATTERY CHARGING
Regular battery charger ■

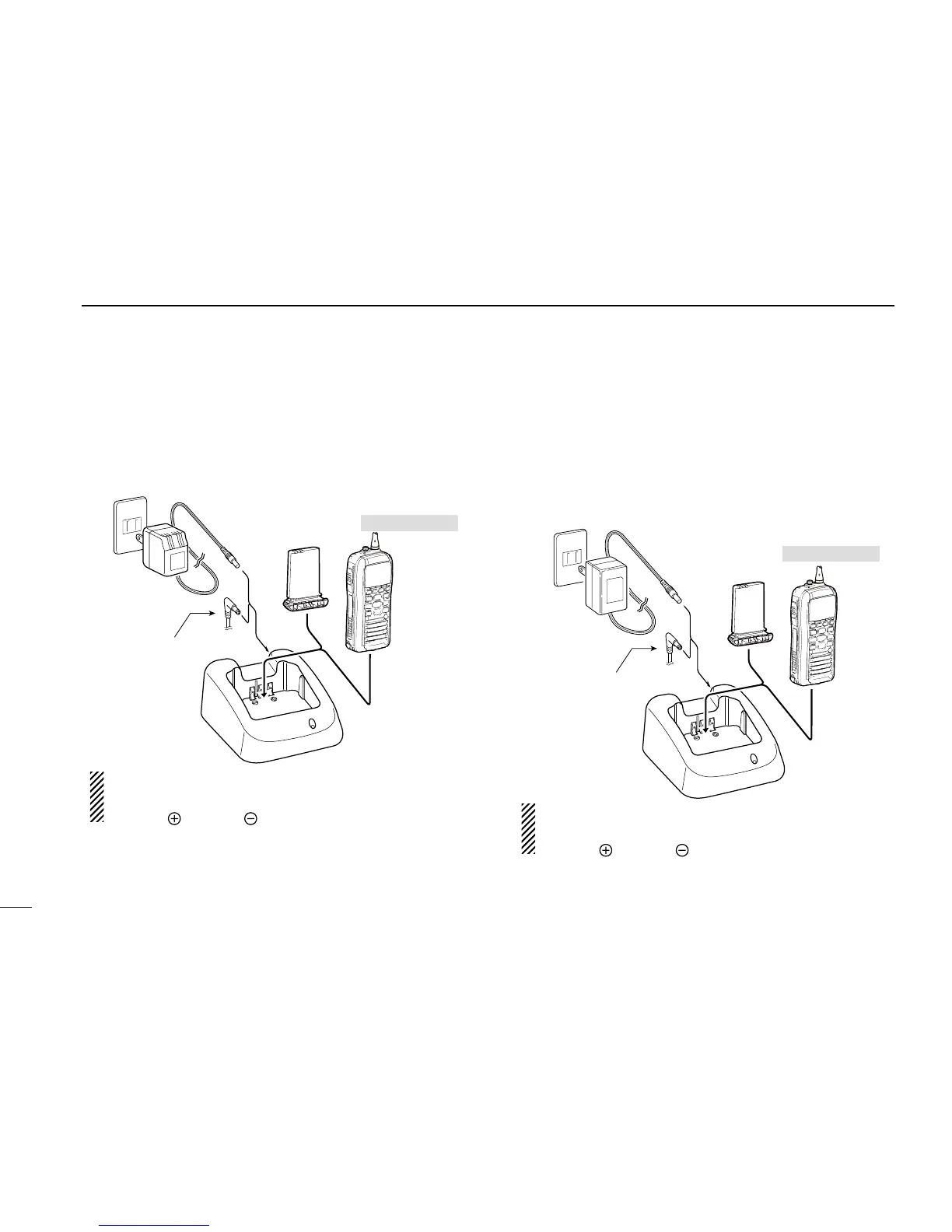

Regular charging with the BC-204 + BC-147S D
The supplied BC-204 with BC-147 provide regular charging
of the Li-ion battery pack.
BC-147S
CP-25 or optional
OPC-515L* (for
13.8 V power
source) or CP-23L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
TransceiverBattery
pack
Tu rn power OFF
CAUTION: NEVER connect the OPC-
515L to a power source using reverse
polarity. This will ruin the battery charger.
White line: Black line
:
*
Optional battery chargers ■
Rapid charging with the BC-205 + BC-145S D
The optional BC-205 provides rapid charging of the Li-ion
battery pack.
•AnACadapter(maybesuppliedwithBC-205dependingonver-
sion) or the DC power cable (OPC-515L/CP-23L) is additionally
required.
BC-145S
AC adapter
CP-25 or optional
OPC-515L* (for
13.8 V power
source) or CP-23L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
TransceiverBattery
pack
Tu rn power OFF
CAUTION: NEVER connect the OPC-
515L to a power source using reverse
polarity. This will ruin the battery charger.
White line: Black line
:
*
