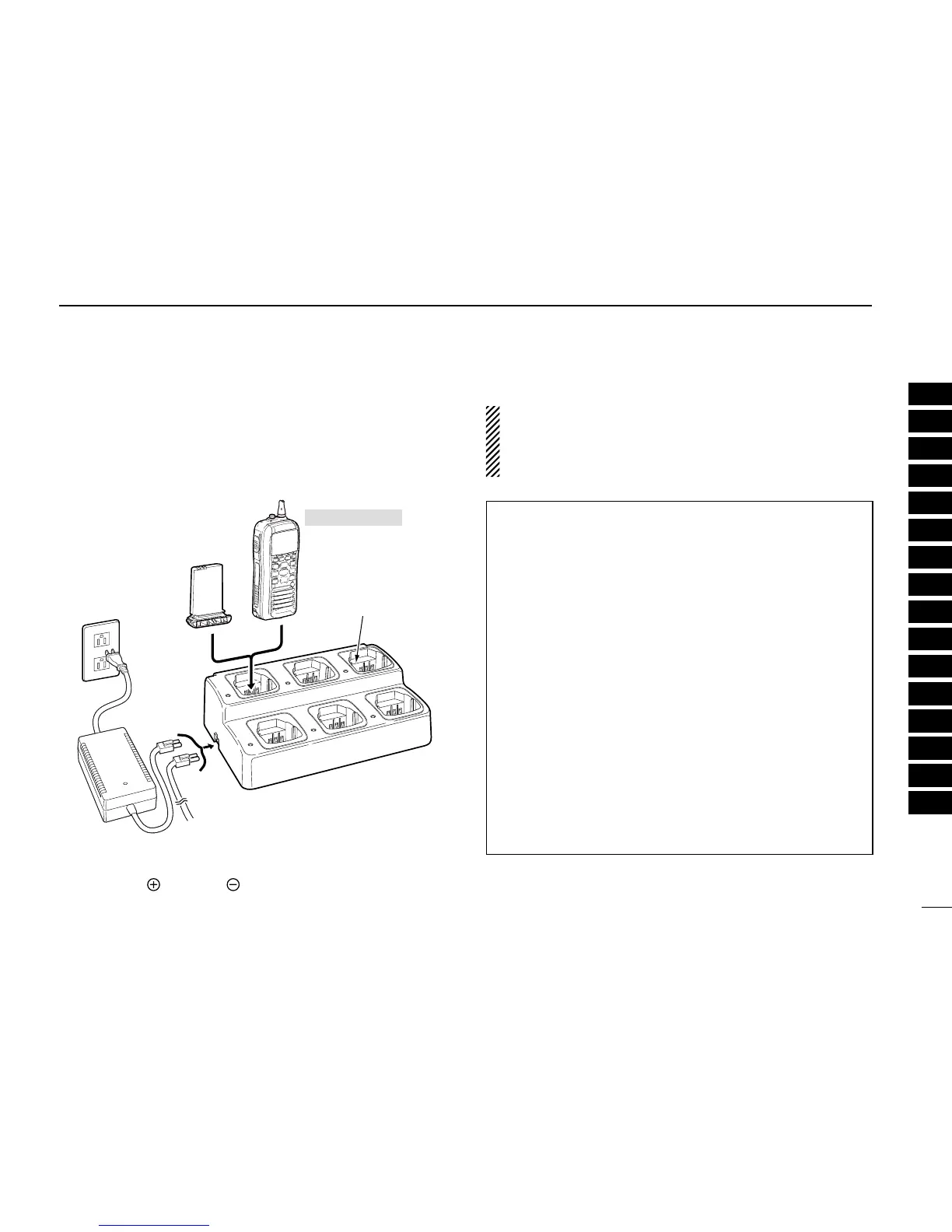

Rapid charging with the BC-197+BC-157S D
The optional BC-197 allows up to 6 Li-ion battery packs to be
charged simultaneously. The following items are additionally
required.
•SixBC-157Schargeradapter
• An optional AC adapter or the DC power cable (OPC-656)
Battery
pack
AD-157S charger
adapters are installed
in each slot.
AC adapter
(Purchased
separately)
Transceiver
DC power cable (OPC-656)
(Connect with the DC power supply; 13.8 V/at least 7 A)
*Abou the OPC-656
Red line : Black line :
Tu rn power OFF
IMPORTANT: Battery charging caution
Ensure the guide tabs on the battery pack are correctly
aligned with the guide rails inside the charger adapter.
(This illustration is described with the BC-160.)
