QUICK REFERENCE GUIDE
■ Preparation

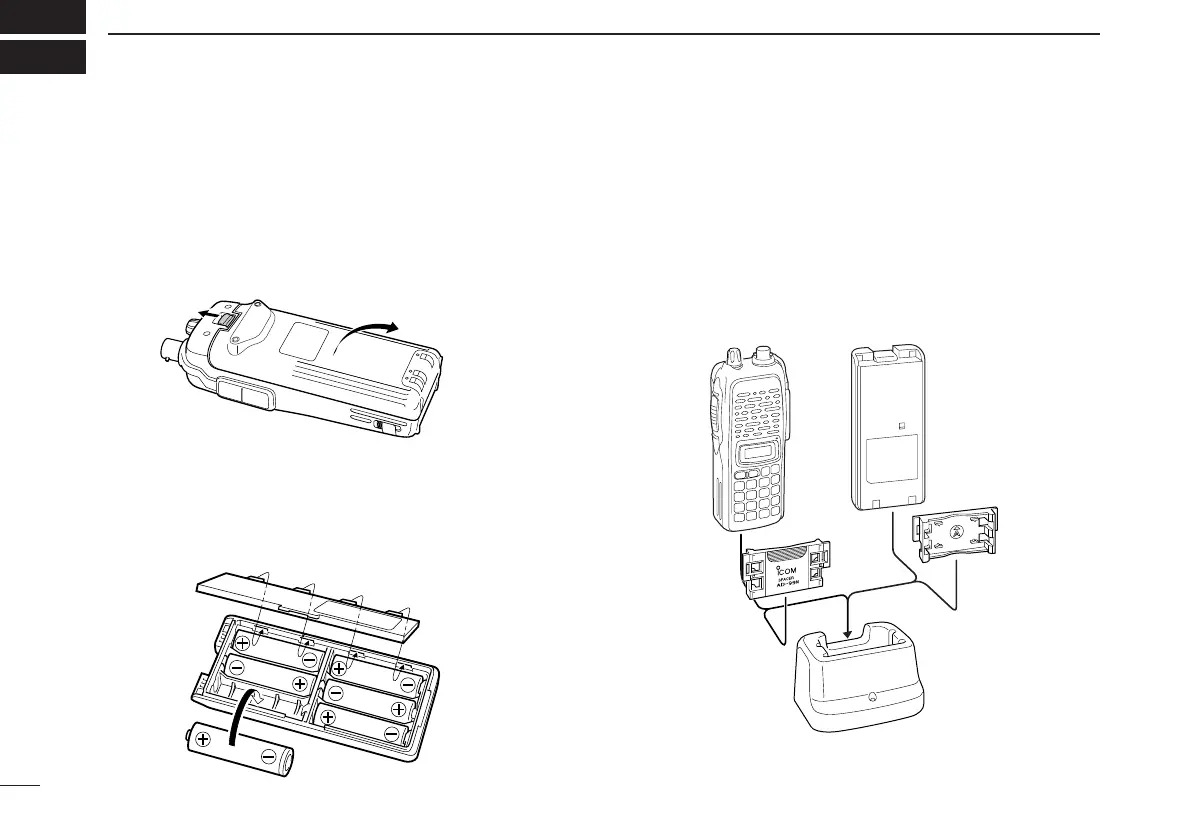

D Battery pack replacement
Before replacing the battery pack, push and hold [PWR] for 1
sec. to turn the power OFF.
• Slide the battery release forward, then pull the battery pack upward
with the transceiver facing away from you.
D Battery case— optional for some versions
When using a BP-208N
BATTERY CASE
attached to the trans-
ceiver, install 6 AA (LR6) size alkaline batteries as illustrated
below.
D Charging with the BC-144N/146
The optional BC-144N provides rapid charging, and the BC-
146 provides regular charging of an optional battery pack with
or without a transceiver attached. The following is addition-
ally required:
• An optional AC adapter. (An AD-99N is supplied with BC-144N or
BC-146.)
