WindO/I-NV4 User’s Manual 22-7
2 Multimedia Function Configuration Procedure
22
Multimedia Function
● Playing Images Recorded with the Event Recording Function
Play the recorded movie file on the Video Display.
Configuration Procedure

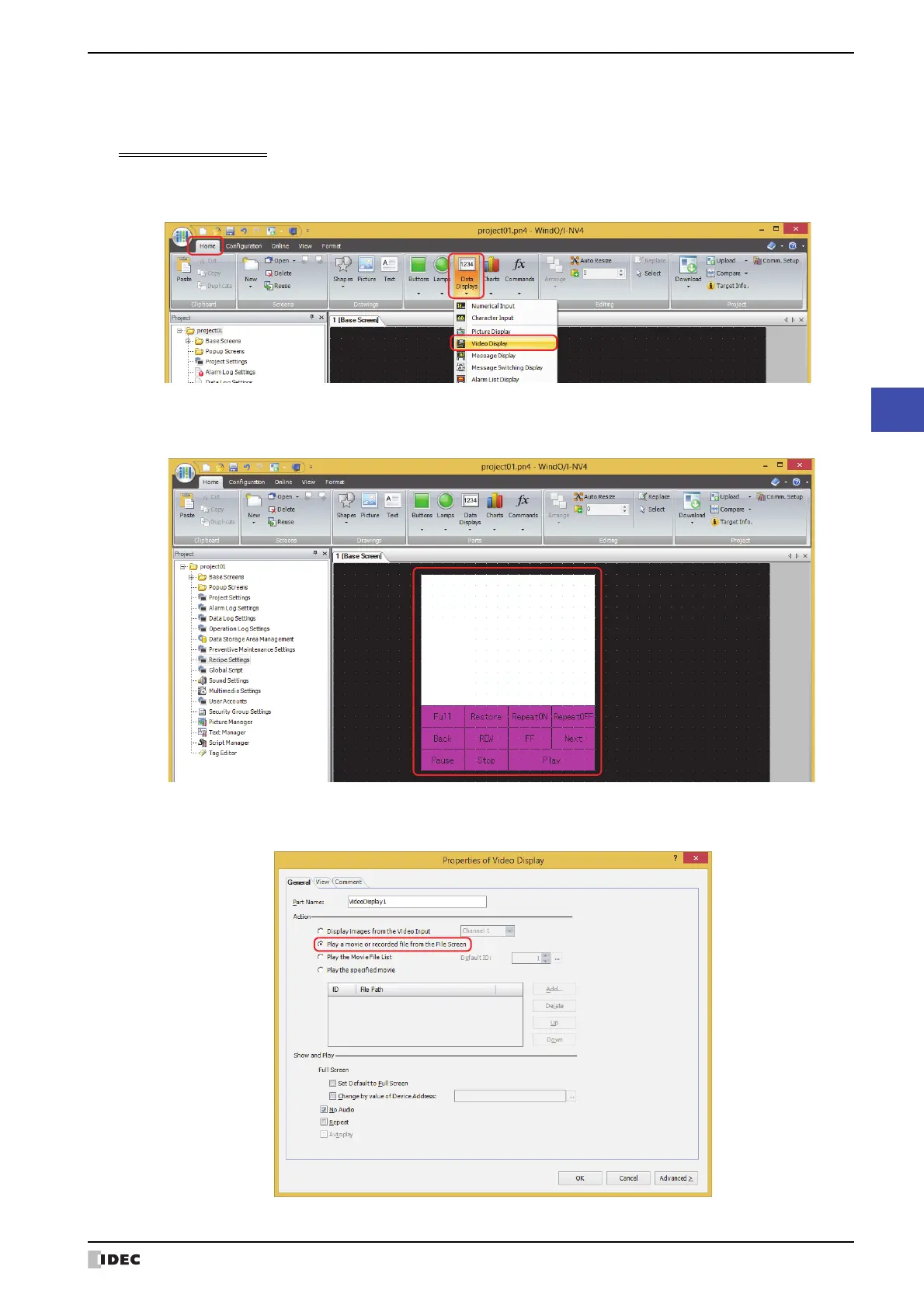

1 Create the Video Display to play the recorded images.
On the Home tab, in the Parts group, click Data Displays, and then click Video Display.
2 Click a point on the edit screen where you wish to place the Video Display.
3 Double-click the dropped Video Display and the Properties dialog box is displayed.
4 On the General tab, under Action, select Play a movie or recorded file from the File Screen.
This option selects and plays movie files using the File Screen.
To Next Page
