IDEC MICRO/I HG1G-4VT22TF Series User Manual

1 Bar Chart
11-2 WindO/I-NV4 User’s Manual

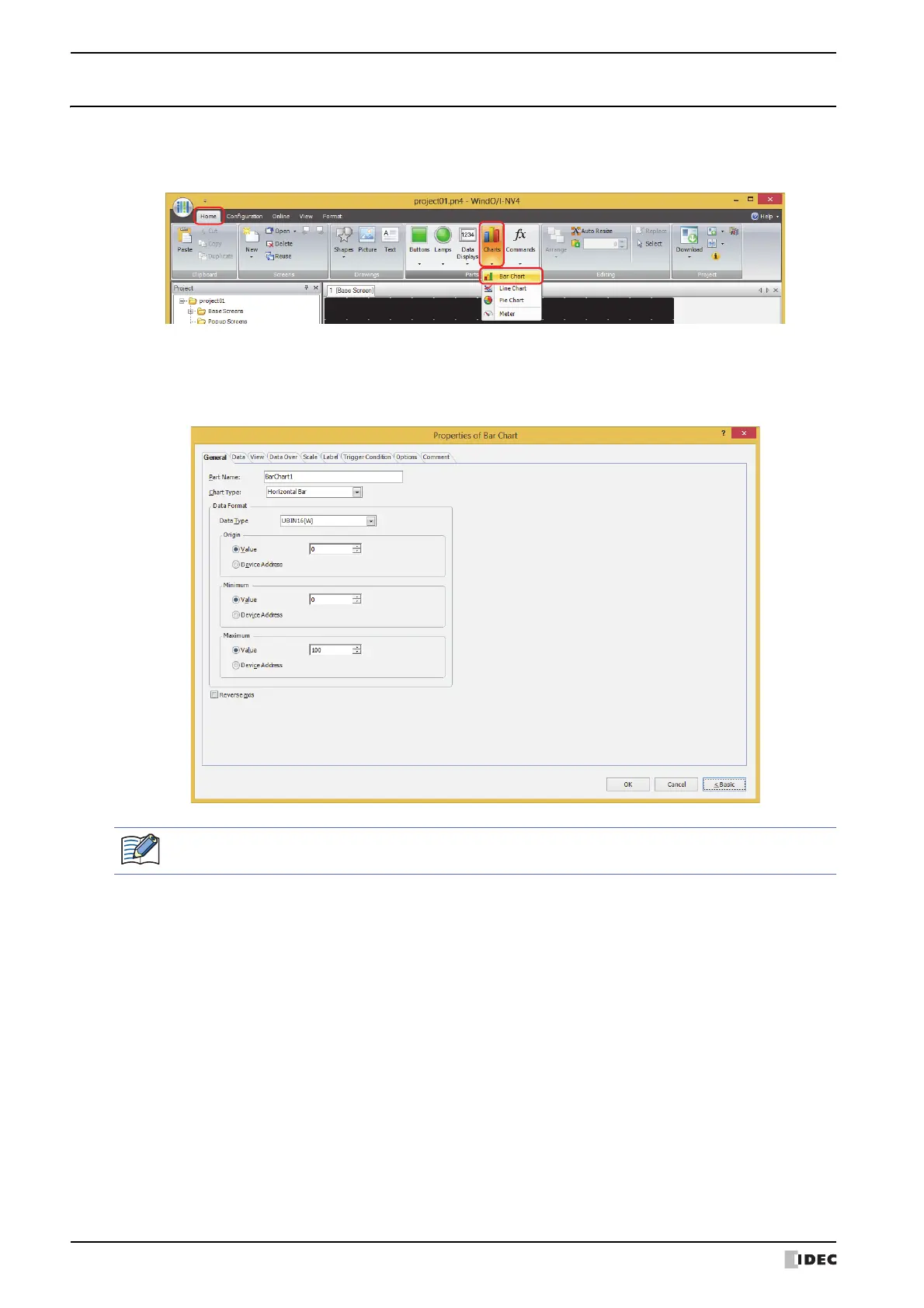

1.2 Bar Chart Configuration Procedure
This section describes the configuration procedure for bar charts.
1 On the Home tab, in the Parts group, click Charts, and then click Bar Chart.
2 Click a point on the edit screen where you wish to place the Bar Chart.
3 Double-click the dropped Bar Chart and a Properties dialog box will be displayed.
4 Change the settings on each tab as necessary.
The Data Over tab, Scale tab, Label tab, Trigger Condition tab and Options tab only appear in
Advanced mode.
