WindO/I-NV4 Users Manual 4-53
3 Project Settings Dialog Box
4
Project Settings

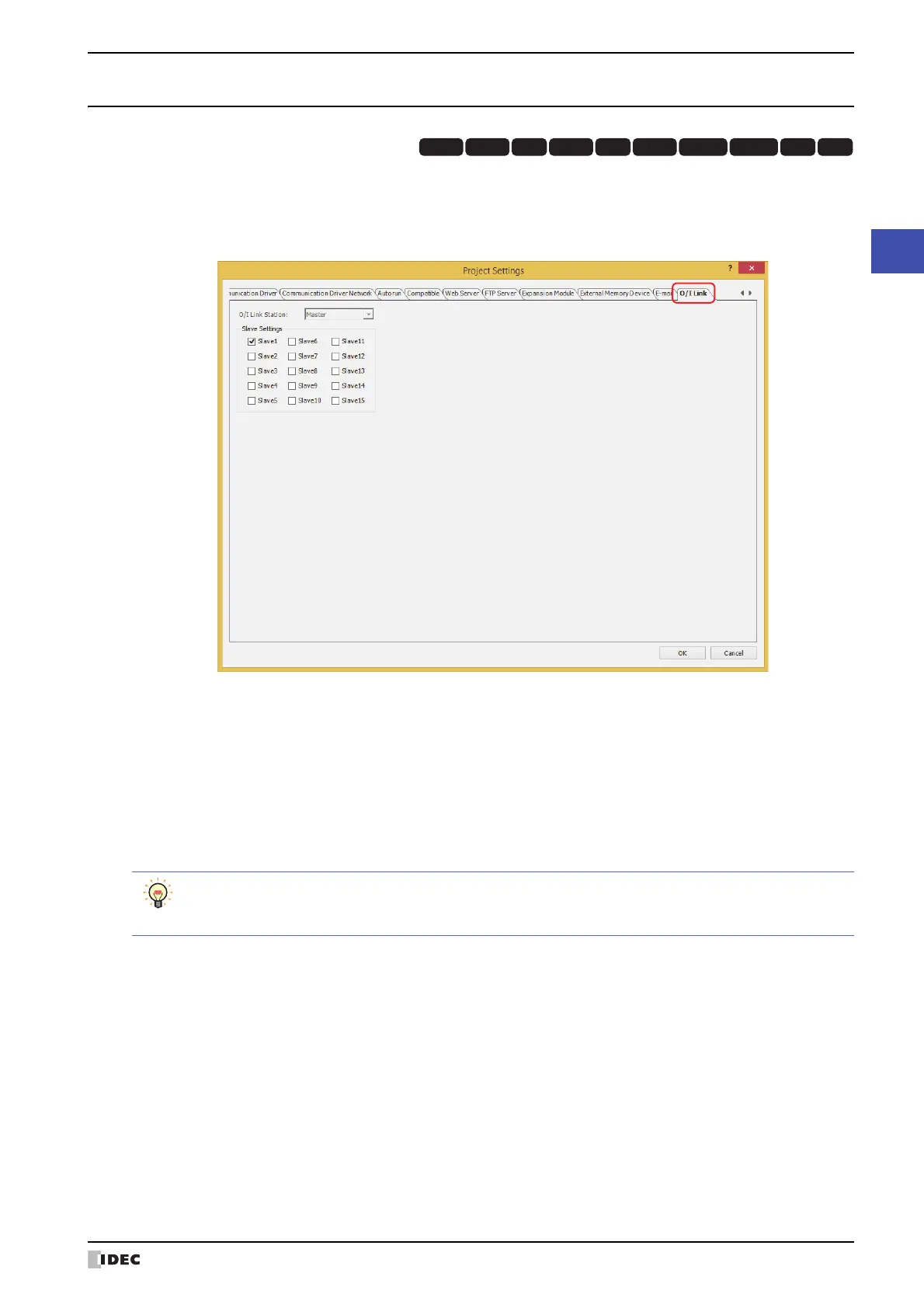

3.5 O/I Link Tab
The O/I Link tab configures the slave stations to connect to when the MICRO/I is used as the O/I Link
communication master. It configures the O/I link station when the MICRO/I is used as a slave. For details, refer to
Chapter 3 “2 O/I Link Communication” on page 3-3. These options can only be configured when O/I Link Master or
O/I Link Slave is selected for Function under Interface Settings on the Communication Interface tab.
O/I Link Station
Selects the slave station (Slave1 to Slave15).
This option can only be configured when O/I Link Slave is selected for Function under Interface Settings on the
Communication Interface tab.
Slave Settings
Select the check boxes for the slave stations to connect to.
This option can only be configured when O/I Link Master is selected for Function under Interface Settings on
the Communication Interface tab.
HG3G
HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T
HG4G HG1G HG1P
The slave stations to connect to when the MICRO/I is used as an O/I link communication master are
enabled after the project is downloaded. The slave station number when the MICRO/I is used as a slave is
also enabled after the project is downloaded.
