WindO/I-NV4 User’s Manual 14-13
3 Data Log Settings Dialog Box
14
Data Log Function
This section describes the items and buttons on the
Data Log Settings
dialog box and the
Individual Settings
dialog box.

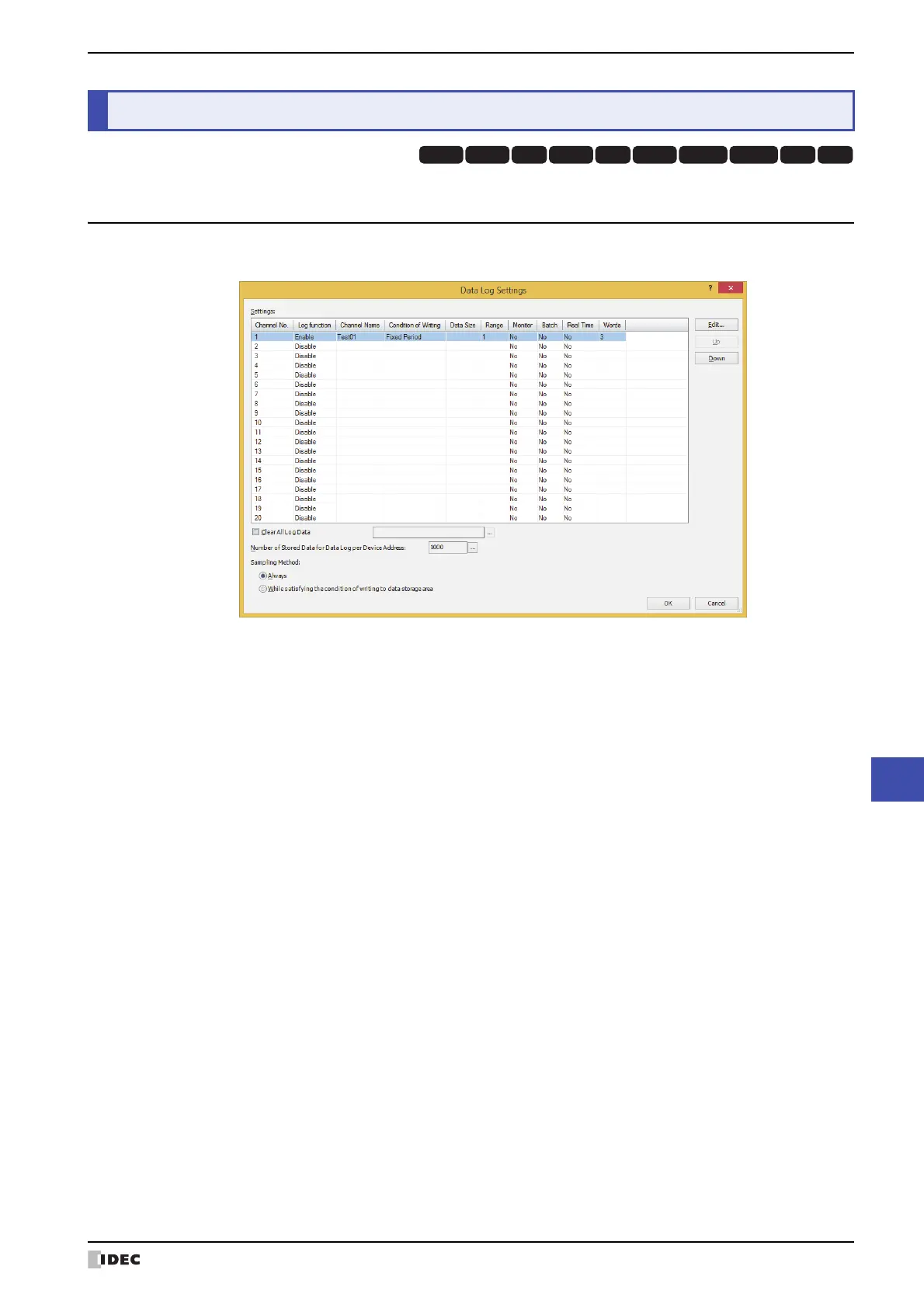

3.1 Data Log Settings Dialog Box
All the device addresses to sample values from and their sampling conditions and Condition of Writing to Data Storage
Area are collectively managed in the Data Log Settings dialog box.
■ Settings
Edits the Data Log settings for each channel.
3 Data Log Settings Dialog Box
HG3G
HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T
HG4G HG1G HG1P
Channel No.: Shows the channel number. Double clicking the cell displays the Individual Settings dialog box
where you can edit the settings. For details, refer to “3.2 Individual Settings Dialog Box” on page
14-16.
Log function: Shows whether or not the Data Log function is used. Double clicking the cell switches between
Enable and Disable. If switched to Disable, that channel’s settings all return to the default
settings.
Channel Name: Shows the channel name. Double clicking the cell displays the Individual Settings dialog box
where you can edit the settings. For details, refer to “3.2 Individual Settings Dialog Box” on page
14-16. This option can only be set when Enable is selected in Log Function.
Condition of Writing: Shows the condition for writing to data storage area. Double clicking the cell switches between
Fixed Period, Event Bit, and Event Word. This option can only be set when Enable is
selected in Log Function.
Data Size: Shows the data size for the device address that is the Condition of Writing to Data Storage
Area. Double clicking the cell switches between 16-bit and 32-bit. This option can only be set
when Event Word is selected in Condition of Writing to Data Storage Area.
To Next Page
