WindO/I-NV4 User’s Manual 5-25
4 Popup Screen
5
Screen
â–  (Close) Button
Closes the Popup Screen.
â–  Screen Display Area
The area where drawing objects and parts are placed.

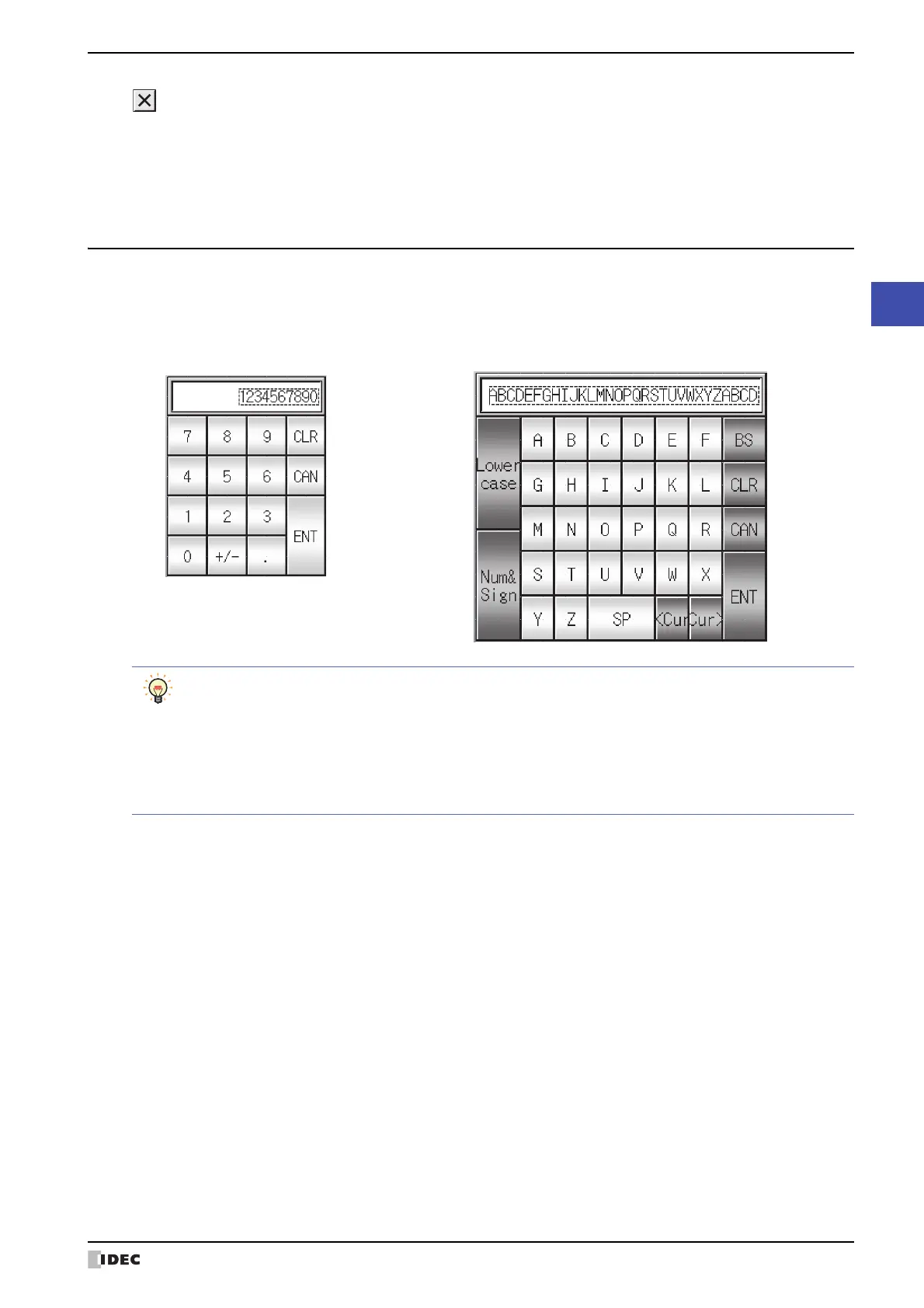

4.3 Standard Keypad Popup Screen
A Popup Screen that places a regular Keypad used for Numerical Input, Character Input, inputting for E-mail and clock
settings on screen numbers 3001 to 3015 with the WindO/I-NV4.
Example: HG2G-5T
Decimal (Number Value) Keypad Uppercase (Alphabet) Keypad
• The Keypad Popup Screen will differ depending on the model selected.
• The Keypad Popup Screen can also place drawing objects and parts in the same manner as Popup Screen
numbers 1 to 3000.
• Screen numbers 3001 to 3015 are screen numbers that are empty when a new project has been created
and are handled as normal Popup Screens.
• Deleting a Keypad Popup Screen and recreating a new Popup Screen of the same screen number will
place the same Keypad.
