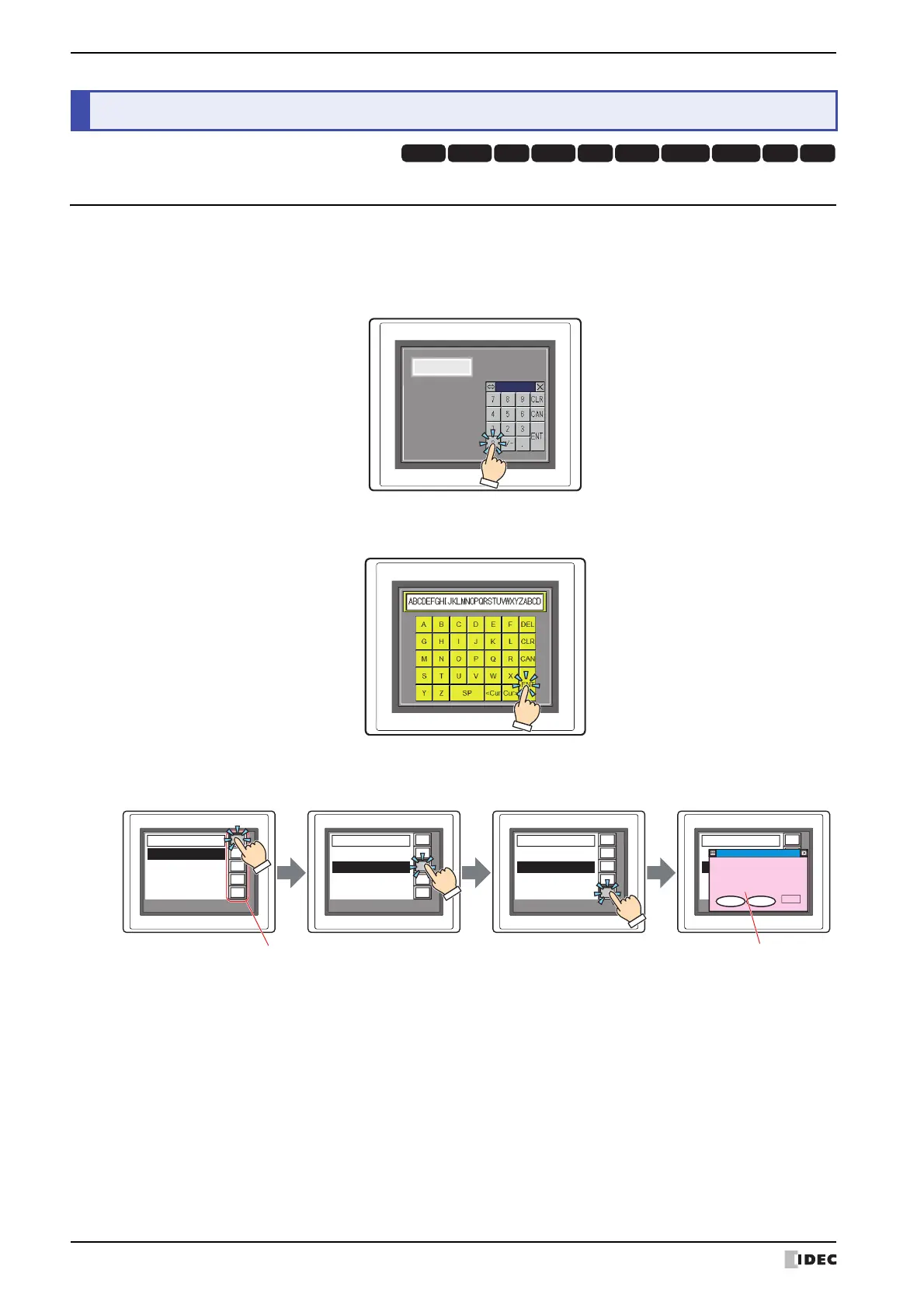

5 Key Button
8-72 WindO/I-NV4 User’s Manual
5.1 How the Key Button is Used
Performs a variety of functions including uploading and downloading, copying files, and operating other parts.
• Entering numbers in the Numerical Input
• Entering characters in the Character Input
• Operating the Alarm List Display or Alarm Log Display
5 Key Button
HG3G
HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T
HG4G HG1G HG1P
1230
MICRO/I
MICRO/I
Show focus Move focus
Key Buon
Display reference screen
Time
09:15 Motor fault
Message
10:02 Pump1 fault
REV
Up
Dwn
Del
Ref.
10:28 High pressure
13:02 Pump 1 fault
Time
09:15 Motor fault
Message
10:02 Pump1 fault
REV
Up
Dwn
Del
Ref.
10:28 High pressure
13:02 Pump 1 fault
Time
09:15 Motor fault
Message
10:02 Pump1 fault
REV
Up
Dwn
Del
Ref.
10:28 High pressure
13:02 Pump 1 fault
Time
09:15 Motor fault
Message
10:02 Pump1 fault
REV
Up
Dwn
Del
Ref.
10:28 High pressure
13:02 Pump 1 fault
Pump 1 faultPump 1 fault
Pump 1 output low
Stop Start
Press Stop, check the air,
then press Start.
Air Press.
kg/m
2
0000
Reference screen
