4 Meter

11-64 WindO/I-NV4 User’s Manual

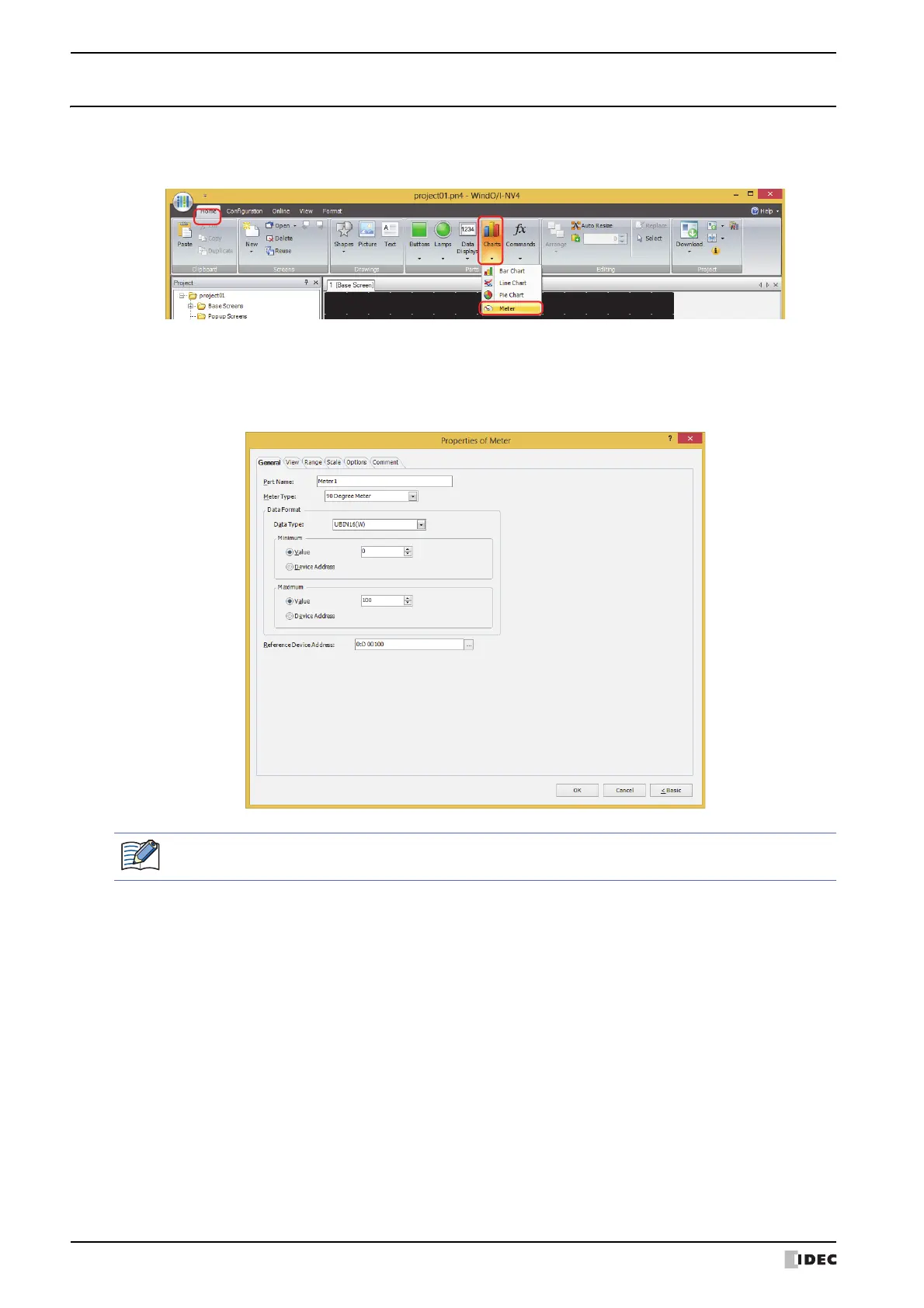

4.2 Meter Configuration Procedure

This section describes the configuration procedure for meters.

1 On the Home tab, in the Parts group, click Charts, and then click Meter.

2 Click a point on the edit screen where you wish to place the Meter.

3 Double-click the dropped Meter and a Properties dialog box will be displayed.

4 Change the settings on each tab as necessary.

The Range tab, Scale tab and Options tab only appear in Advanced mode.
