3 Picture Display
10-60 WindO/I-NV4 User’s Manual

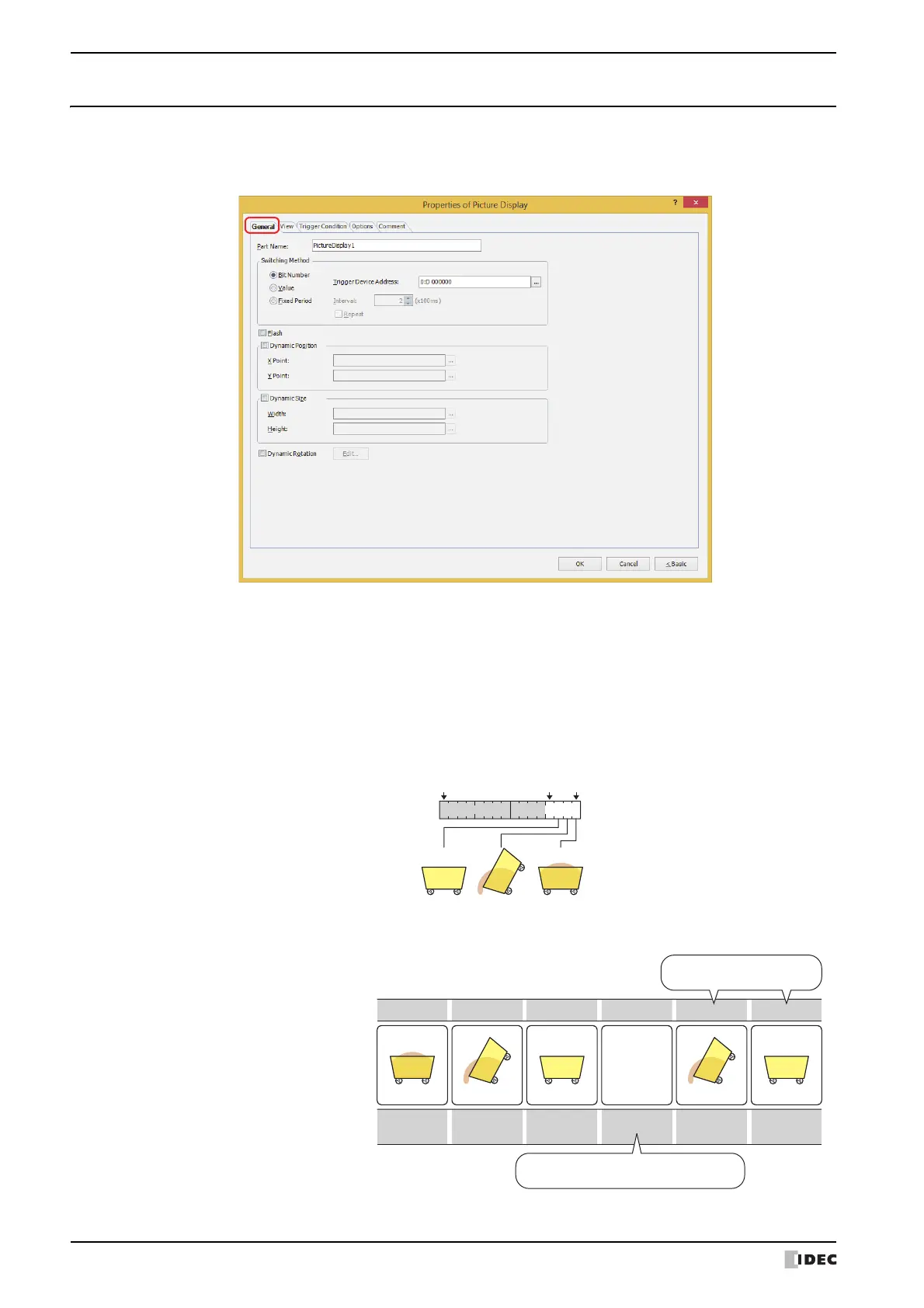

3.3 Properties of Picture Display Dialog Box
This section describes items and buttons on the properties dialog box.
●
General Tab
■ Part Name
Enter a name for the part. The maximum number is 20 characters.
■ Switching Method
Specifies the method for switching pictures to display from the following. Register pictures in Picture List on the
View tab.
Bit Number: Switches the picture to display according to the status of bits in a device address.
Example: When Bit Number is selected and the bits of trigger device address D0 are allocated to
the following pictures.
Switches the picture to display according to the status of the bits.
bit15 bit0
bit3
Trigger device address D0
Pic0Pic1Pic2
0001
Picture to display
Trigger device address
D0 bit state
0010 0100
1000
Display picture
for bit 0
Display picture
for bit 1
Display picture
for bit 2
No picture
Display picture
for bit 1
Display picture
for bit 2
Action
1110
1100
Pic 0 Pic 1 Pic 1Pic 2 Pic 2
If all bits in the device address are 0 or if a bit with
no associated picture becomes 1, display nothing.
If multiple bits are 1, display the
picture for the lowest order bit.
