2 Security Function Configuration Procedure
23-26 WindO/I-NV4 User’s Manual

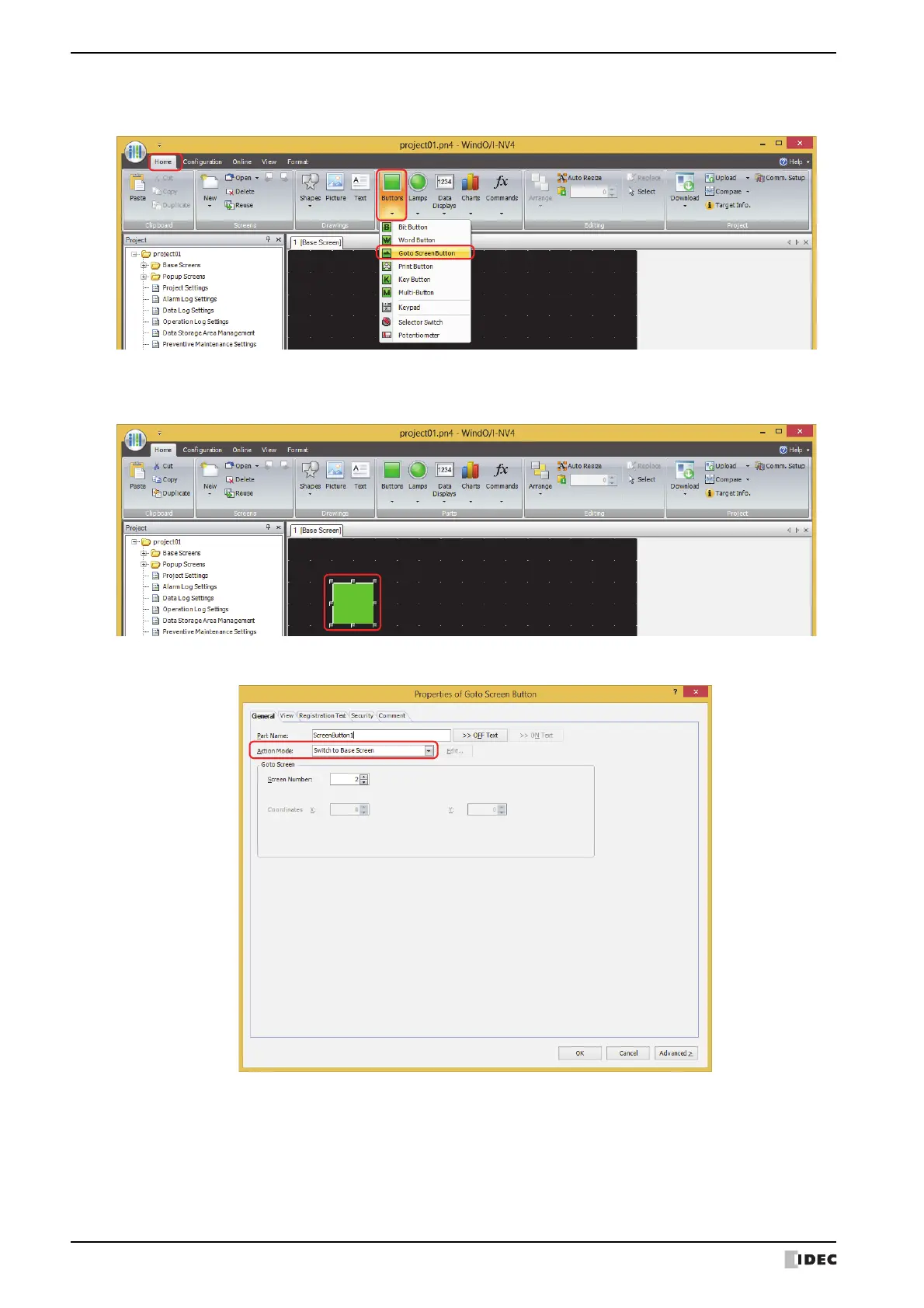

2 Place a Goto Screen Button on base screen 1.
On the Home tab, in the Parts group, click Buttons, and then click Goto Screen Button.
3 Click a point on the edit screen where you wish to place the Goto Screen Button.
4 Double-click the dropped Goto Screen Button and the Properties dialog box is displayed.
5 Select Switch to Base Screen for Action Mode.
6 Specify the screen number of the base screen to switch to with Screen Number under Goto Screen.
2 is specified here.
7 Click OK.
Close the Properties of Goto Screen Button dialog box.
