WindO/I-NV4 User’s Manual 3-23
5 User Communication
3
Communication

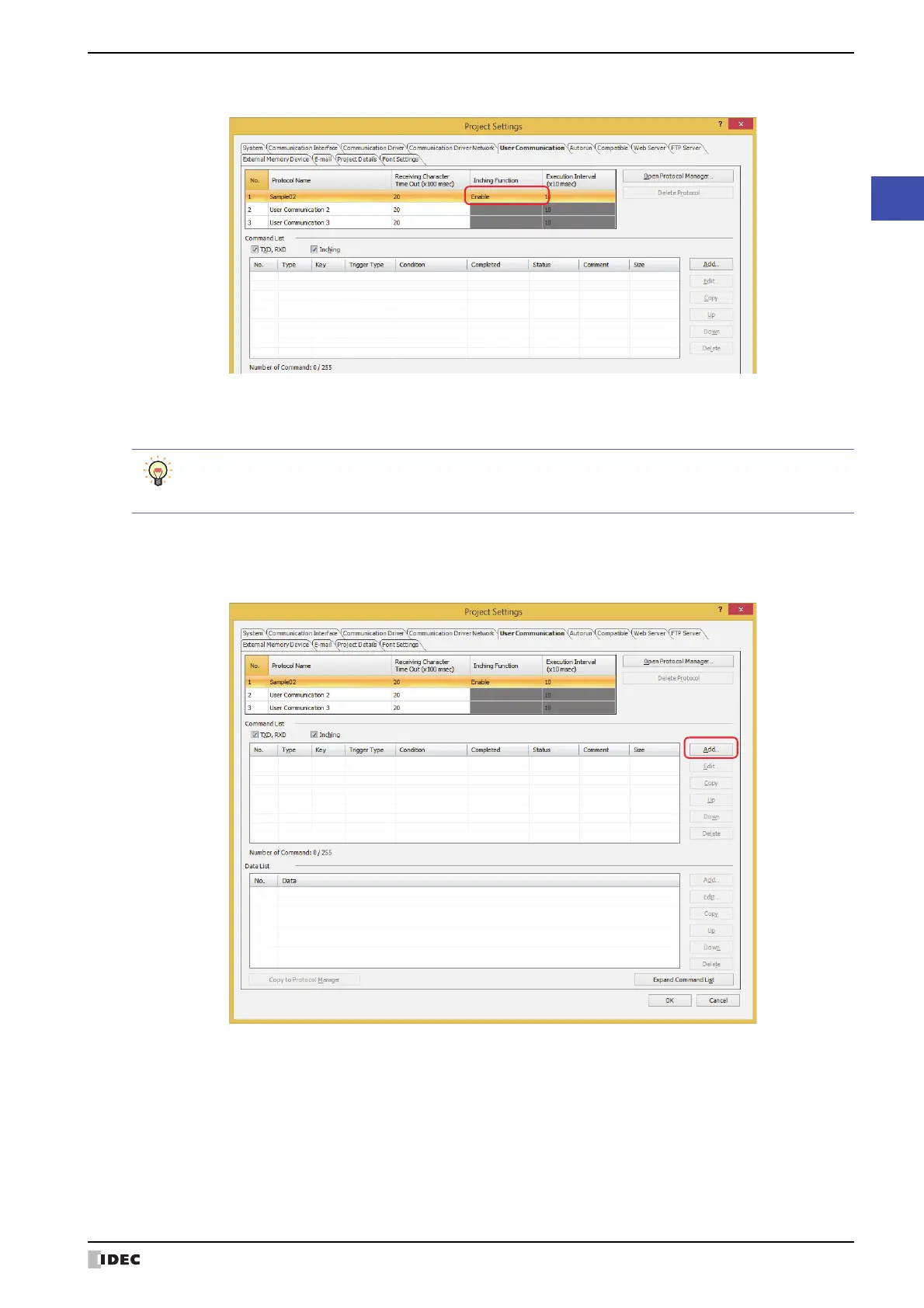

7 Double click the cell under Inching Function and select Enable.
8 Specifies the Execution Interval (x10 msec) as 40 to 1000 (20 ms increments).
9 Select the Inching check box.
10
Configure the transmission command for the Inching Function.
Click Add under Command List.
The Command Settings dialog box is displayed.
The items displayed in Command List can be changed with the TXD, RXD and Inching check boxes.
Commands in Command List are displayed in the order they were created, but commands for inching
function are always displayed above the transmission and receive commands in the list.
To Next Page
