MICRO/I Specifications

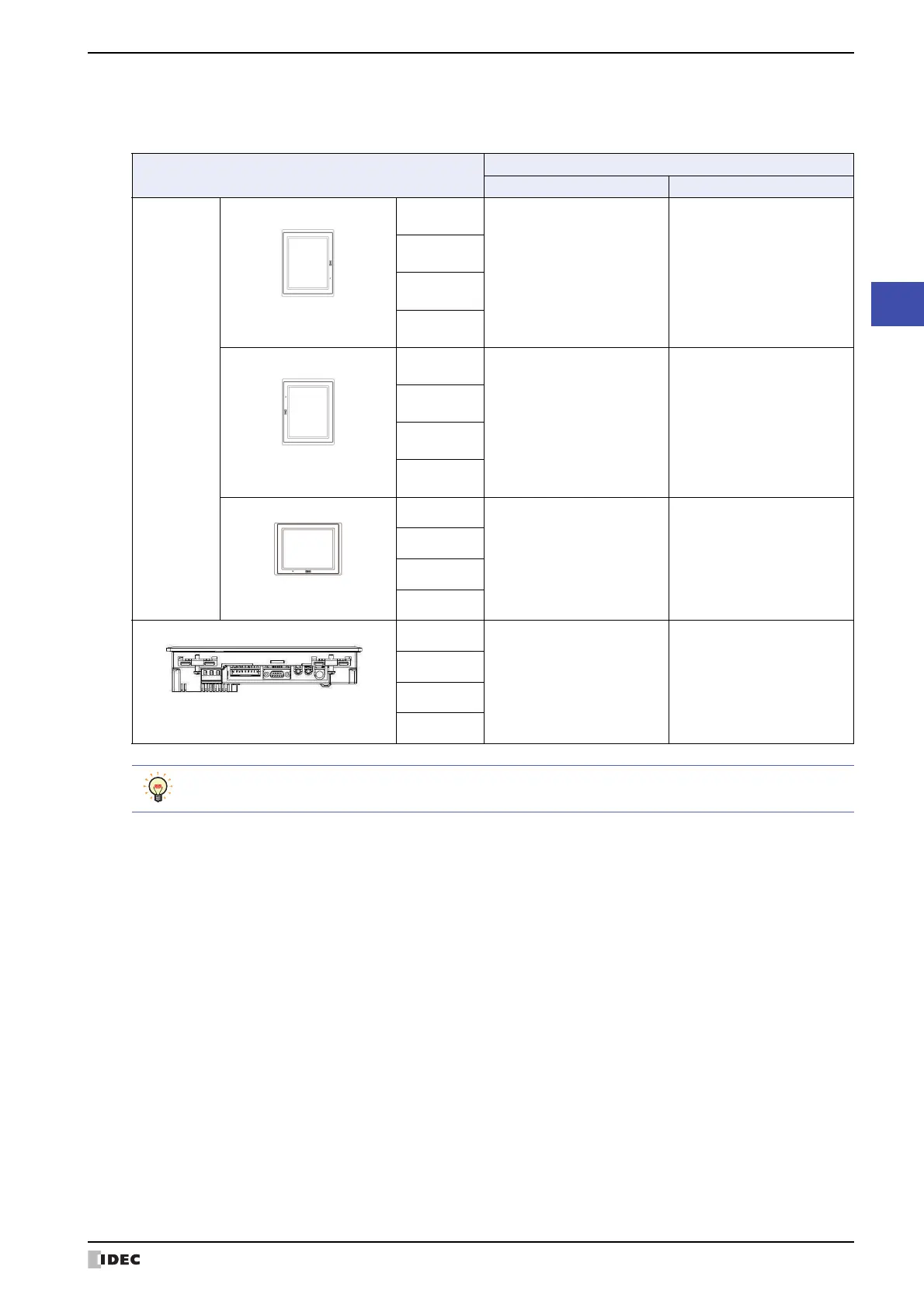

● HG5G/4G/3G/2G-V Orientation
The HG5G/4G/3G/2G-V is designed to install on a vertical landscape. If you install it using any other orientation,
confirm the limitations about operating temperature and the use of MICROSmart expansion modules.
Orientation
Operating Temperature
w/o expansion modules w/ expansion modules
Vertical
Portrait (Counter Clockwise)
HG5G-V
-20 to 60°C -10 to 50°C
HG4G-V
HG3G-V
HG2G-V
Portrait (Clockwise)
HG5G-V
-20 to 60°C unavailable
HG4G-V
HG3G-V
HG2G-V
Landscape
HG5G-V
-20 to 60°C unavailable
HG4G-V
HG3G-V
HG2G-V
Horizontal
HG5G-V
-20 to 60°C unavailable
HG4G-V
HG3G-V
HG2G-V
• When installing the HG5G/4G/3G/2G-V in a diagonal, the limitations are same as a horizontal.
• Confirm the visibility of the display in a final installation.
