MICRO/I Specifications

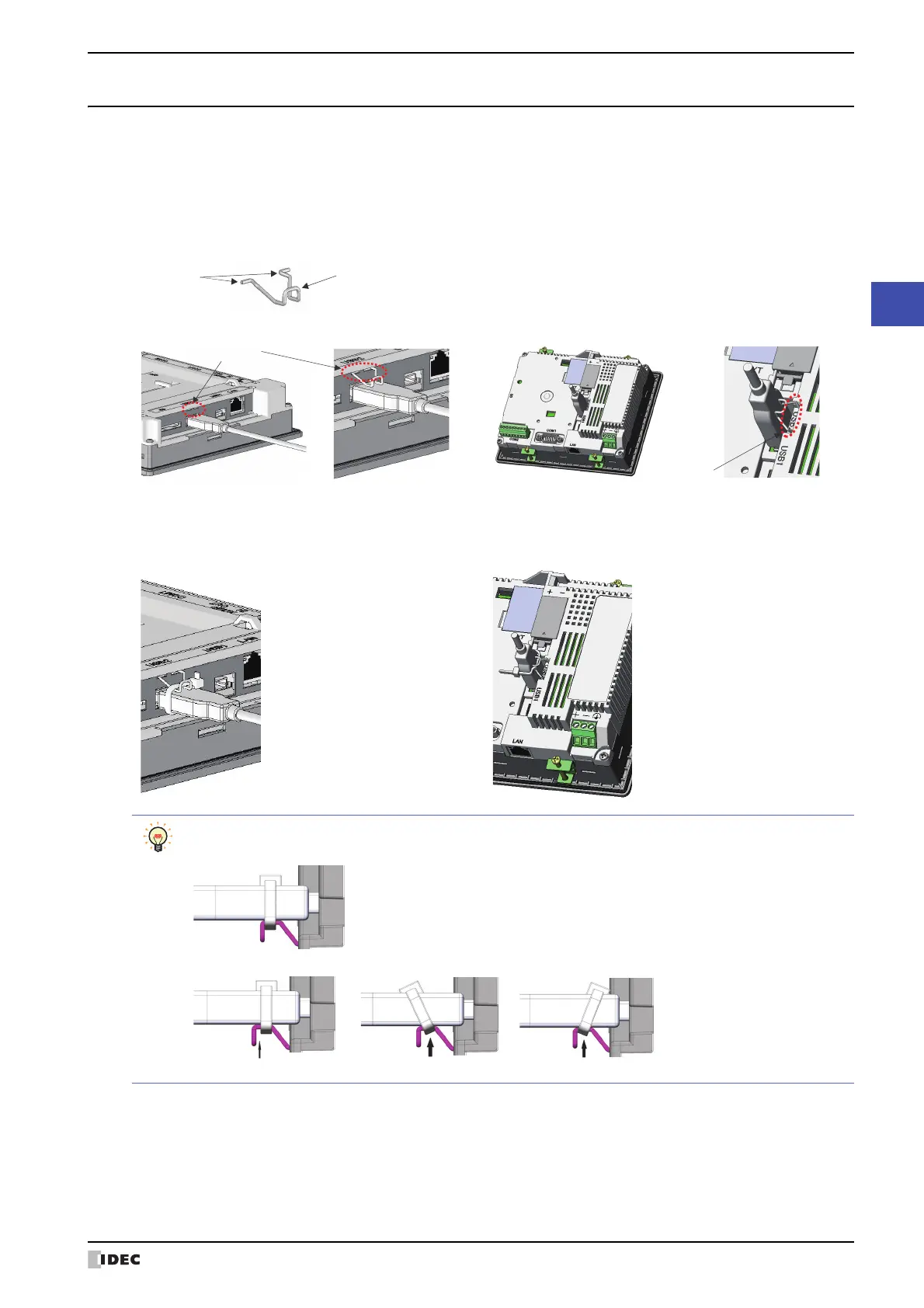

1.9 USB Cable Lock Pin Attachment
When using the USB device, attach the USB Cable Lock Pin to prevent disconnecting the USB cable from the HG5G/4G/
3G/2G-V.
1 Insert the USB cable into the USB2 port.
2 Strain the [Edge part] of the USB Cable Lock Pin, and insert the [Edge part] to the 2 holes upper the USB2 port.
3 Fasten the USB Clamp Band around the USB cable and the [Clamp part], secure them tightly.
Upper Holes
Fasten the USB Clamp Band without the space between the [Clamp part] and it, and the inclination.
OK
NG NG
With a gap
Slanted
Slanted
NG
