2 Line Chart

11-48 WindO/I-NV4 User’s Manual

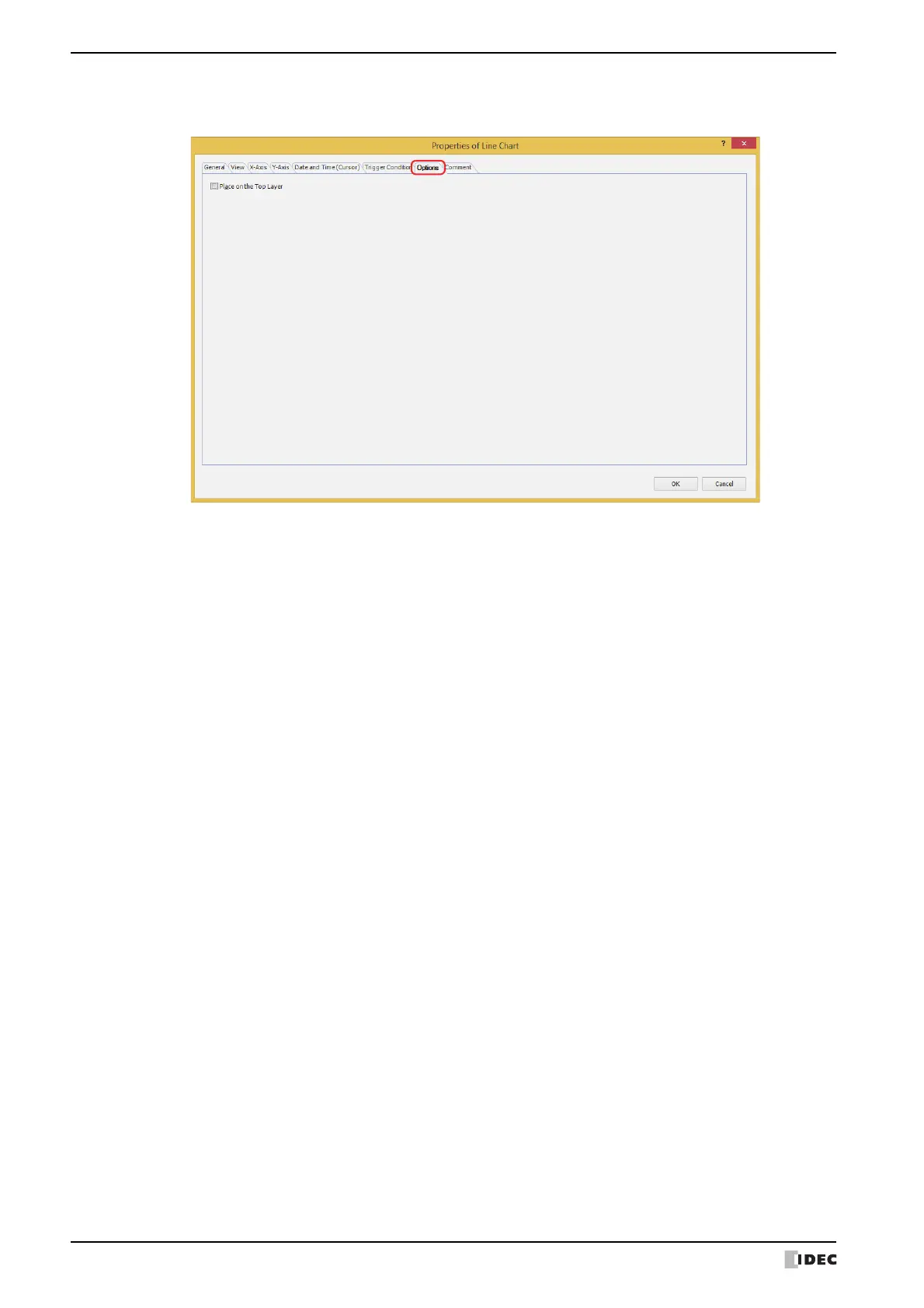

● Options Tab

The Options tab is displayed in Advanced mode.

■ Place on the Top Layer

Select this check box to display the parts on the top layer. The parts will have precedence when other drawings and

parts are overlapping with it. For details, refer to Chapter 6 “4 Drawings and Parts Overlapping” on page 6-5.
