WindO/I-NV4 User’s Manual 11-67
4 Meter
11
Charts

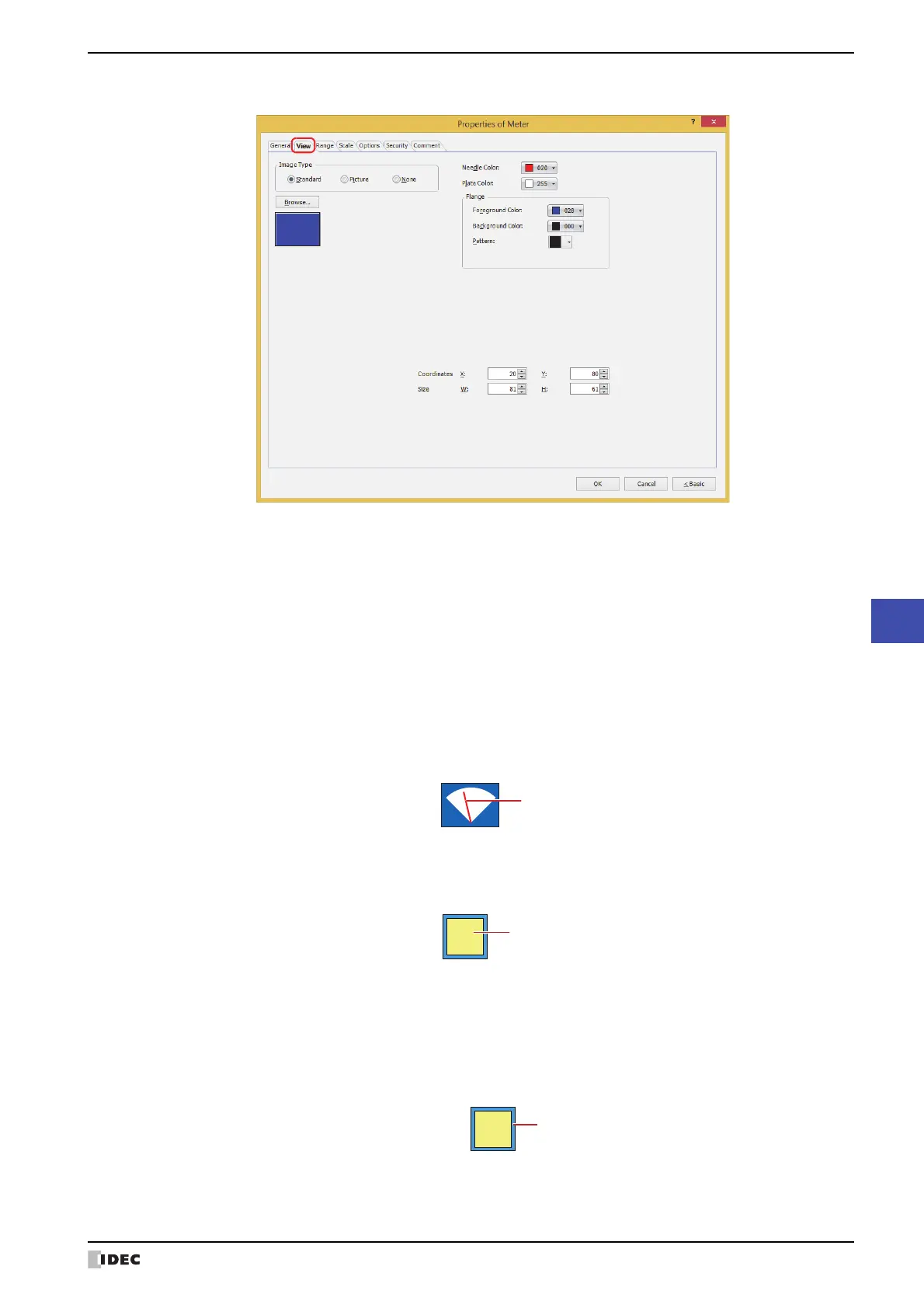

● View Ta b
■ Image Type
Select the type of graphic to be used to represent the part.
■ Browse
Select the type of graphic to be used to represent the part from the list of graphics. Click this button to display the
View Browser or Picture Manager, depending on the setting for Image Type.
■ Needle Color
Selects the needle color of the Meter (color: 256 colors, monochrome: 16 shades).
Click Color to display the Color Palette. Select a color from the Color Palette.
■ Plate Color
Selects the plate color of the standard graphic (color: 256 colors, monochrome: 16 shades).
Click Color to display the Color Palette. Select a color from the Color Palette.
■ Flange
Standard: Uses the default graphic for WindO/I-NV4.
Picture:
Uses an image file saved using Picture Manager.
For details about image file restrictions, refer to Chapter 2 “1.4 Available Image Files” on page 2-20.
None: The plate and the flange of the part are not displayed.
Plate color
Foreground Color, Background Color: Selects the foreground and background colors of the flange of the standard
graphic (color: 256 colors, monochrome: 16 shades).
Click Color to display the Color Palette. Select a color from the Color Palette.
Pattern: Selects a pattern for the flange of the standard graphic.
Click Pattern to display the Pattern Palette. Select a pattern from the Pattern Palette.
