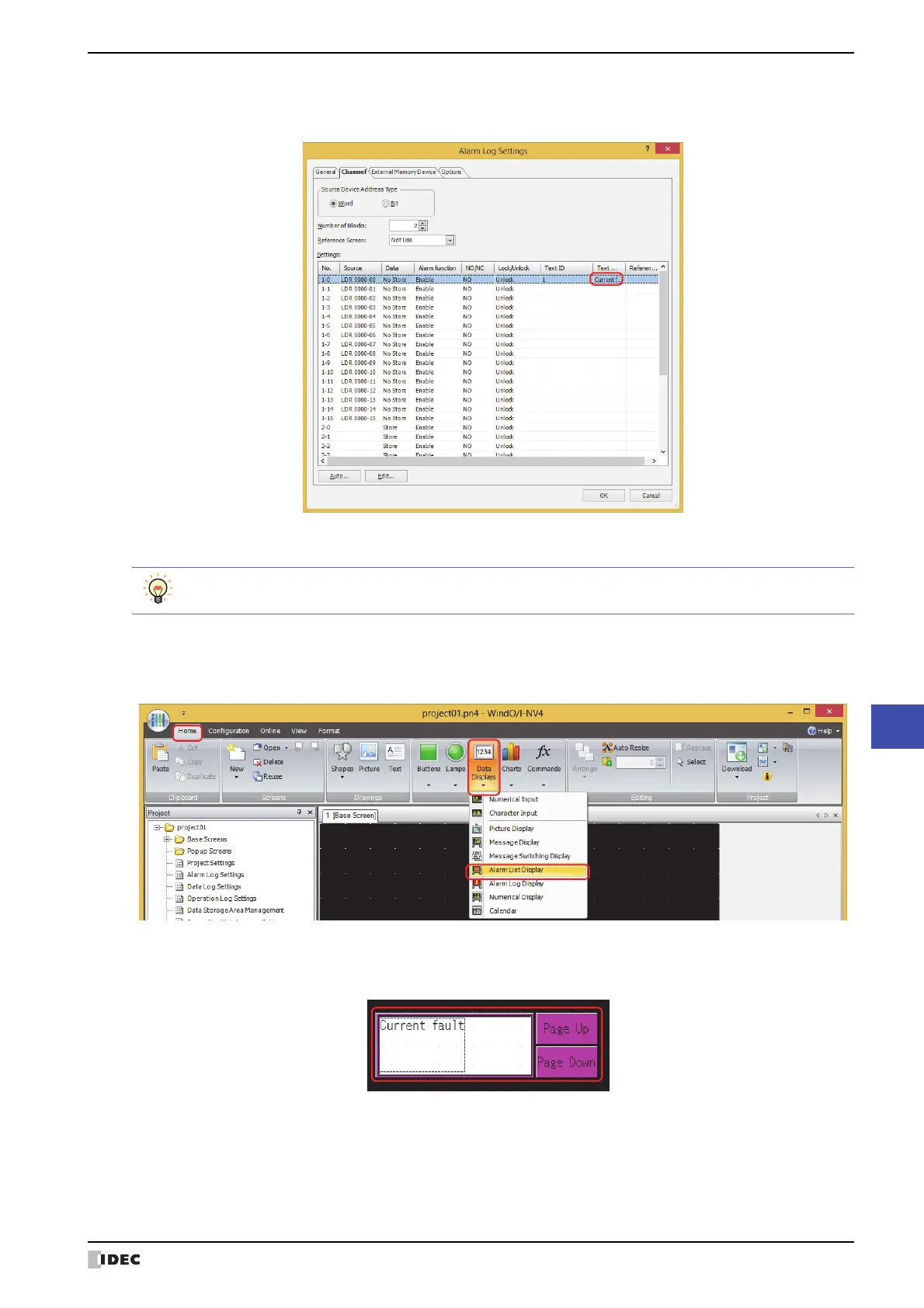

WindO/I-NV4 User’s Manual 13-35
4 Using Data and Detected Alarms
13
Alarm Log Function
9 Click OK.
The registered message is displayed in Settings.
10
Repeat steps 3 through 9 to register messages for all the channels.
11
Click OK.
The Alarm Log Settings dialog box closes.
12
On the Home tab, in the Parts group, click Data Displays, and then click Alarm List Display.
13
Click a point on the edit screen where you wish to place the Alarm List Display.
14
Double-click the dropped Alarm List Display and a Properties dialog box will be displayed.
The messages to use can be registered in advance in Text Manager.
To Next Page
