2: P
RODUCT
S
PECIFICATIONS
2-94 FC6A S
ERIES
M
ICRO
S
MART
A
LL
-
IN
-O
NE
T
YPE
U
SER
’
S
M
ANUAL
FC9Y-B1722
Communication Cartridges
Communication cartridges can add RS-232C communication ports and RS-485 communication ports when connected to the CPU
module's cartridge slots. These cartridges support the maintenance communication function, the user communication function,
and the Modbus communication function. The RS-485 cartridge also supports the data link function.
Note: The communication cartridges can be used by connecting them to the CPU module's cartridge connectors. They cannot be used in the HMI
module's cartridge connector.

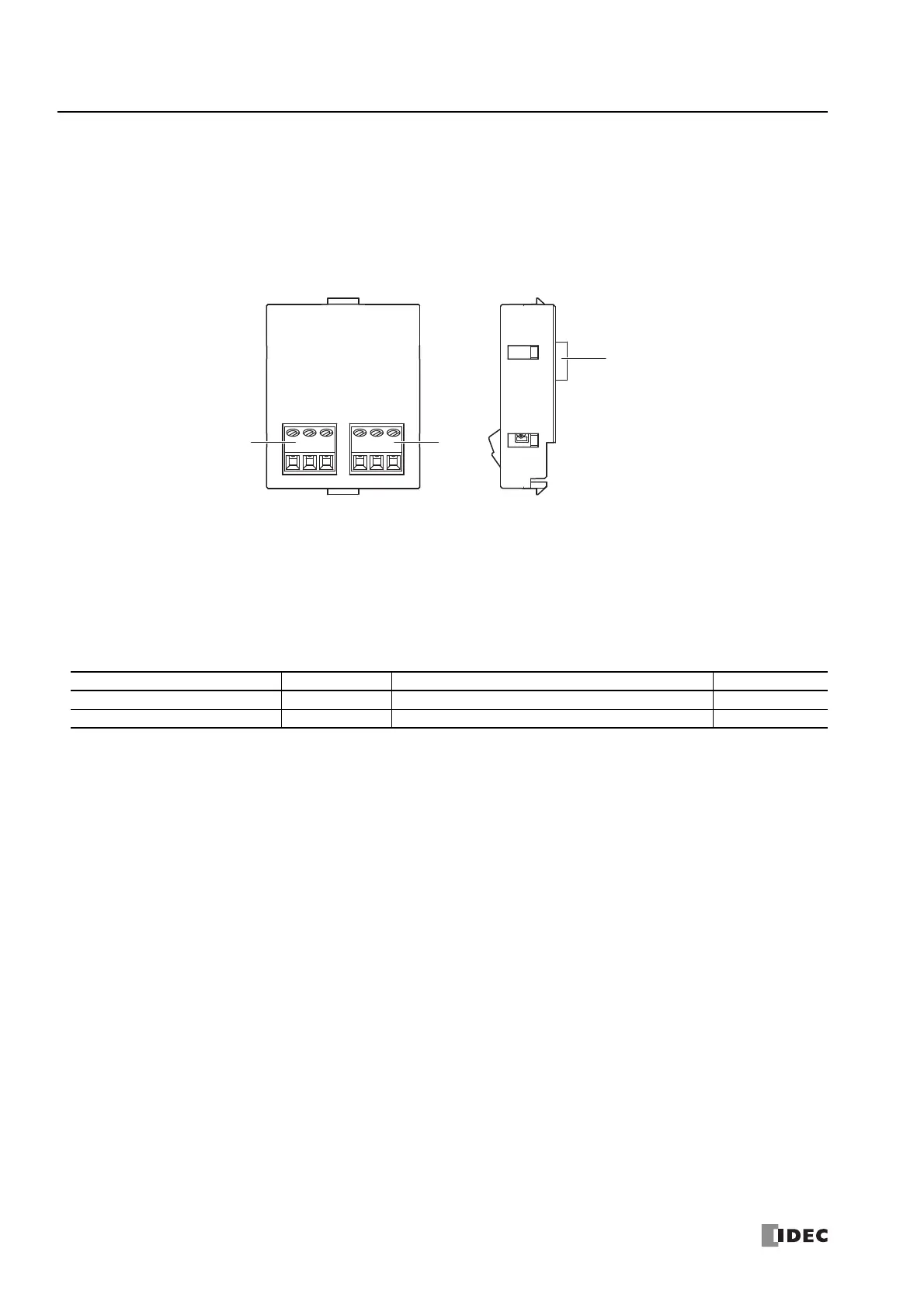

Parts Description
(1) Terminals
These terminals connect a device equipped with a serial interface (RS-232C or RS-485). The devices that can be connected
differ by the type of communication cartridge.
(2) Connector
Connects the cartridge to Cartridge Slot 1 or 2 of the CPU module.
Model List
Cartridge Type Points Type Type No.
RS-232C communication cartridge 1 Serial interface (RS-232C) FC6A-PC1
RS-485 communication cartridge 1 Serial interface (RS-485) FC6A-PC3
(1)
(2)
(1)
