Assembling the HMI Module and a Cartridge
The following procedure describes the assembly of the HMI module (cartridge slot 3) and an analog cartridge.
1. Unlock and open the front cover of the HMI module.
For details, see "Opening the Front Cover" on page 3-8.
2. Insert a flathead screwdriver into each of the screwdriver slots (two locations) on the HMI module and remove the dummy
cartridge straight off the All-in-One Type by pushing in the dummy cartridge tabs.
3. Take care with the vertical orientation of the analog cartridge and firmly push the analog cartridge connector onto cartridge
slot 3 on the HMI module.
Note: You can only connect an analog cartridge to cartridge slot 3 on the HMI module. You cannot connect a communication cartridge.
4. Close and lock the front cover of the HMI module.
For details, see "Closing the Front Cover" on page 3-8.

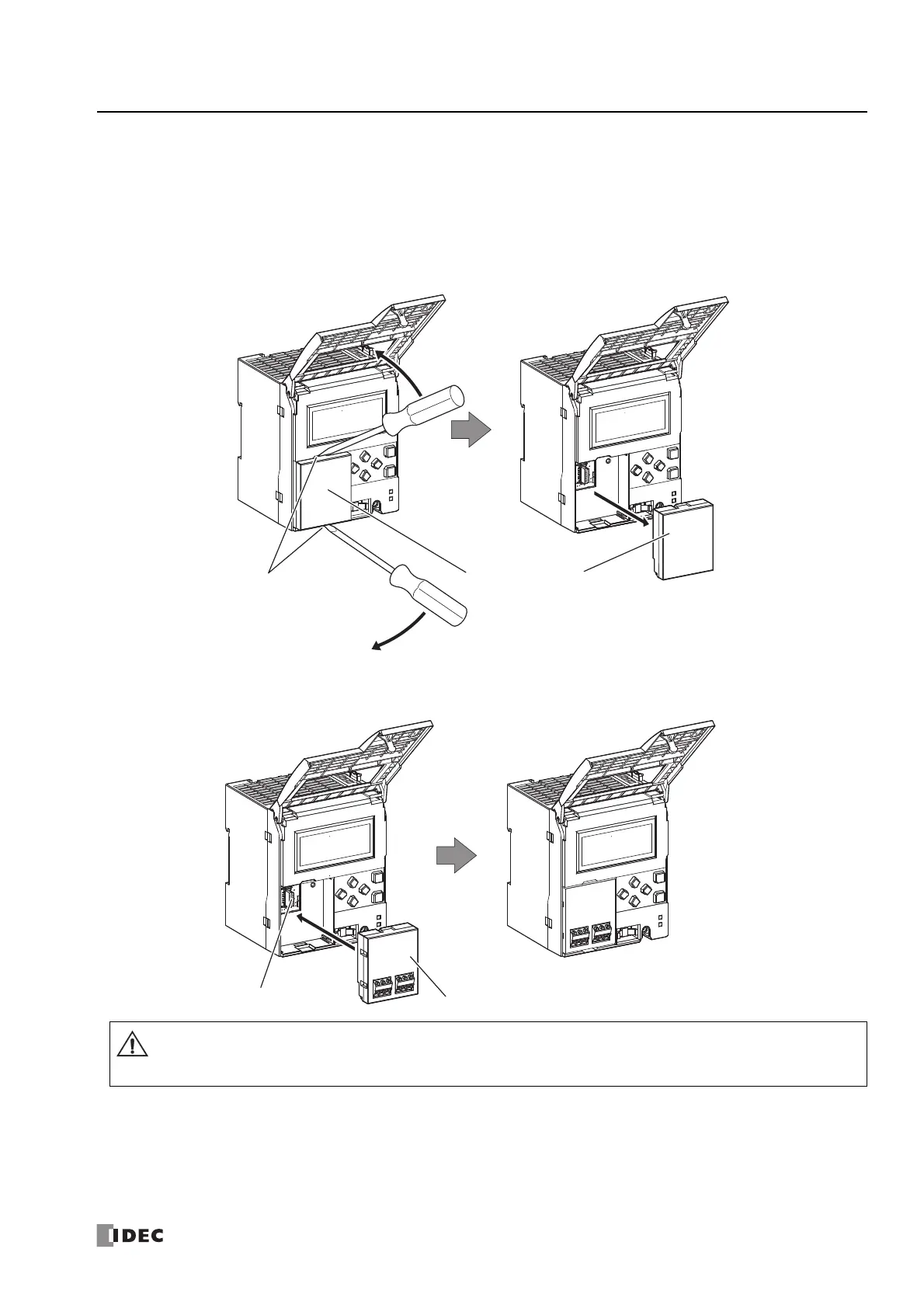

Dummy Cartridge
Screwdriver Slot
Analog CartridgeCartridge Slot 3
• Do not perform this work when the FC6A Series MicroSmart is powered. Otherwise there is a risk of damage.
• Attach and remove the cartridge straight in relation to the HMI module. If you attach or remove the cartridge at an angle,
there is a risk of damage or communication failure.
