Removing and Attaching the Ethernet Port 1 Cover
The following procedure describes how to remove and attach the Ethernet port 1 cover.
Removing the Ethernet Port 1 Cover

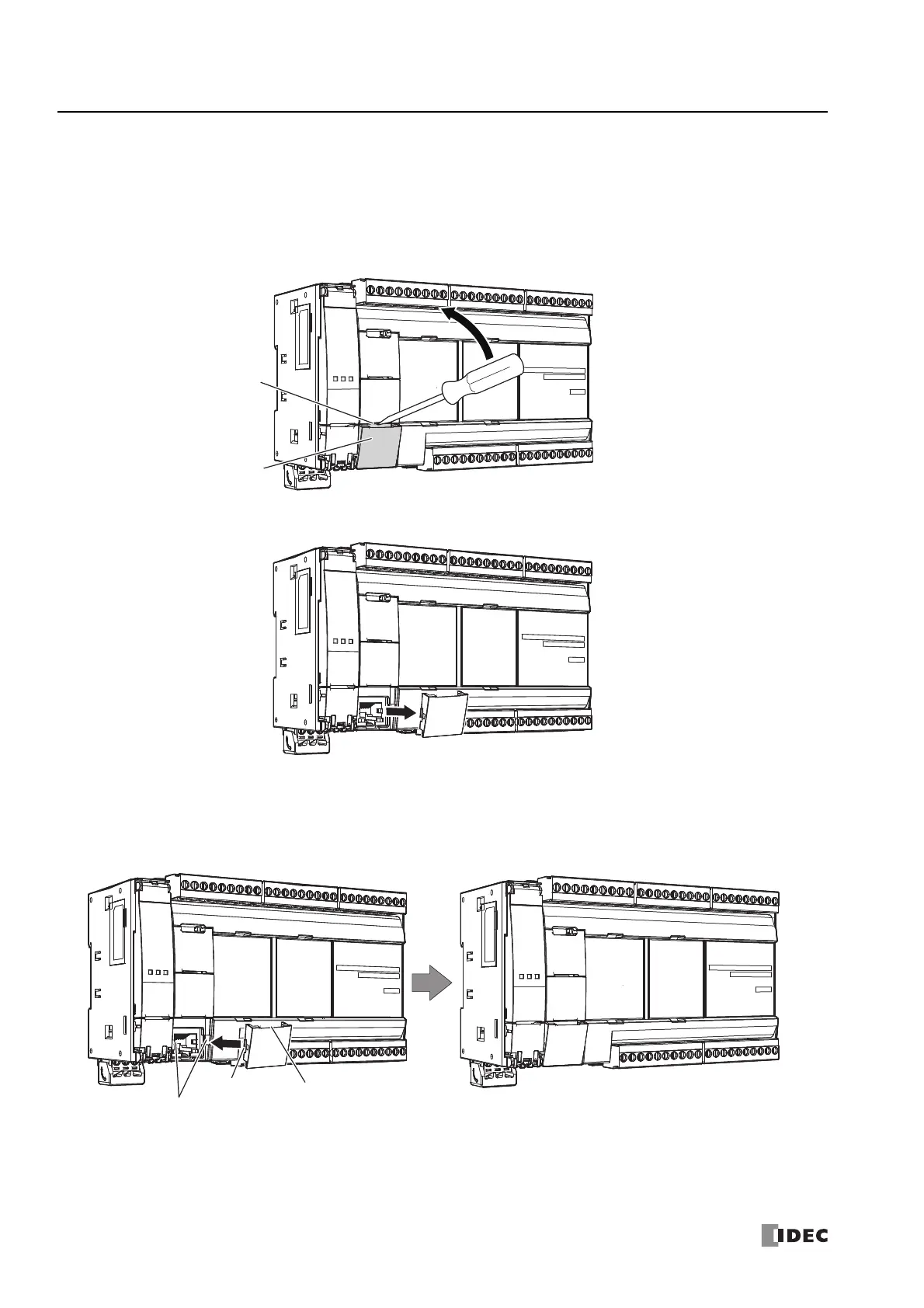

1. Insert a flathead screwdriver into the screwdriver slot on the Ethernet port 1 cover and slowly move the screwdriver in the
direction of the arrow to unlock the top lock.
2. Lift the Ethernet port 1 cover straight up in the direction of the arrow to remove it.
Attaching the Ethernet Port 1 Cover
When not using Ethernet port 1, attach the Ethernet port 1 cover.
1. Insert the Ethernet port 1 cover tabs into the grooves on the left and right sides of Ethernet port 1 and push the cover straight
in to attach it.
Note: Take care with the orientation of the Ethernet port 1 cover. The groove to insert the screwdriver goes on the bottom.
Ethernet Port 1 Cover
Screwdriver Slot
Tab
Screwdriver Slot Groove
Ethernet Port 1 Groove
