FC6A S ERIES M ICRO S MART A LL - IN -O NE T YPE U SER ’ S M ANUAL FC9Y-B1722 3-23
3: I NSTALLATION AND W IRING
Opening and Closing the USB Port Cover
The following procedure describes how to open and close the USB port cover.
Opening the USB Port Cover

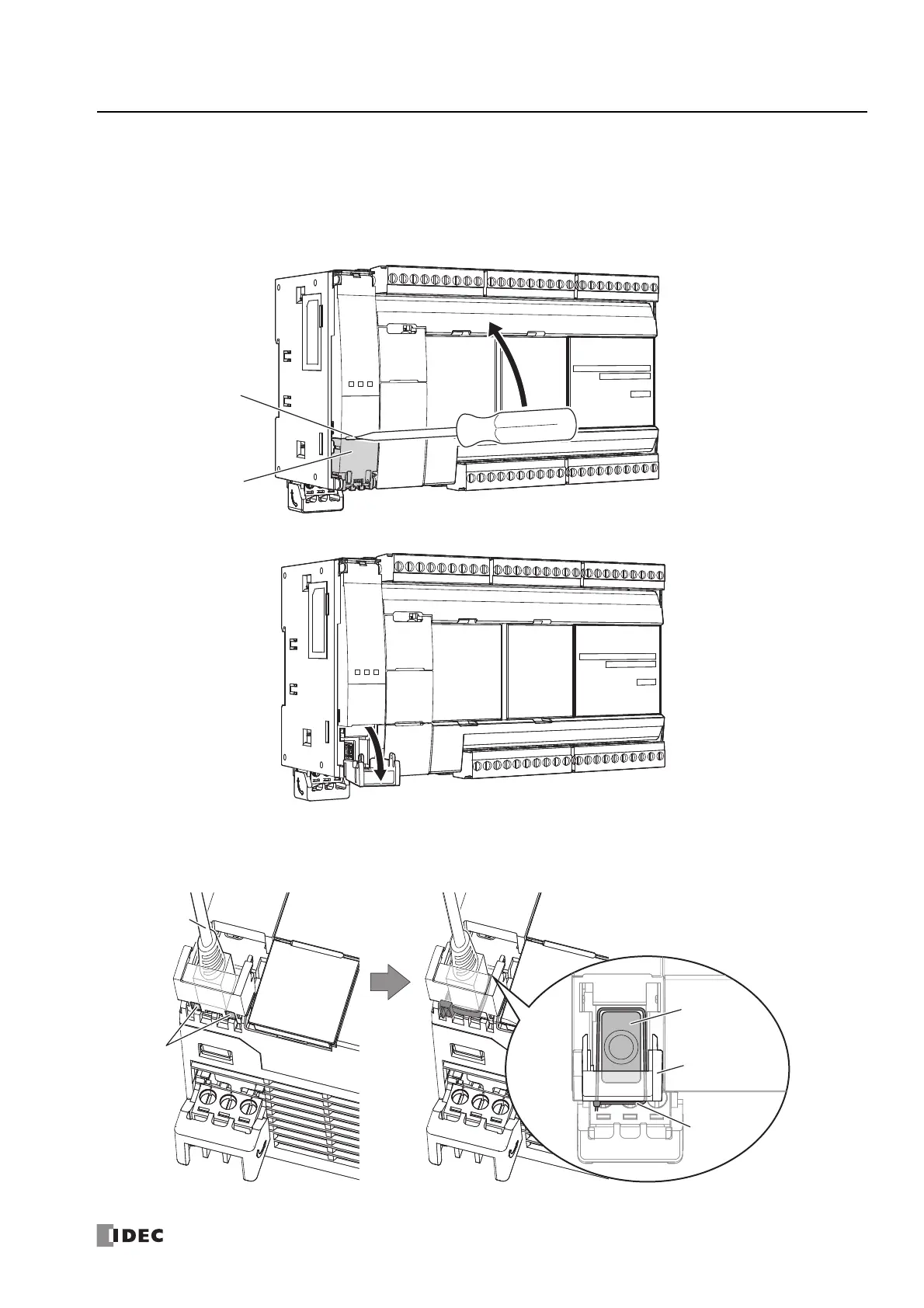

1. Insert a flathead screwdriver into the screwdriver slot on the USB port cover and slowly move the screwdriver in the direction
of the arrow to unlock the top lock.
2. Open the USB port cover in the direction of the arrow.
To communicate with a computer, use the USB cable (model: HG9Z-XCM42).
If you use the USB extension cable (model: HG9Z-XCE21), you can perform maintenance on an FC6A Series MicroSmart installed
in a control panel from the face of the panel. We recommend securing the USB extension cable to the USB port cover with a cable
tie (HellermannTyton cable tie: T18R) so the USB extension cable is not disconnected from the FC6A Series MicroSmart.
USB Port Cover
Screwdriver Slot
USB Cable
Hole
USB Cable
USB Port Cover
Cable Tie
