1.2 Printer inside features
1.2.1 SMART-30 inside feature.
In SMART-30 printer, the ribbon is installed by a ribbon cartridge which can be used
semipermanently. The following shows the inside functional features found on your SMART-30
printer.

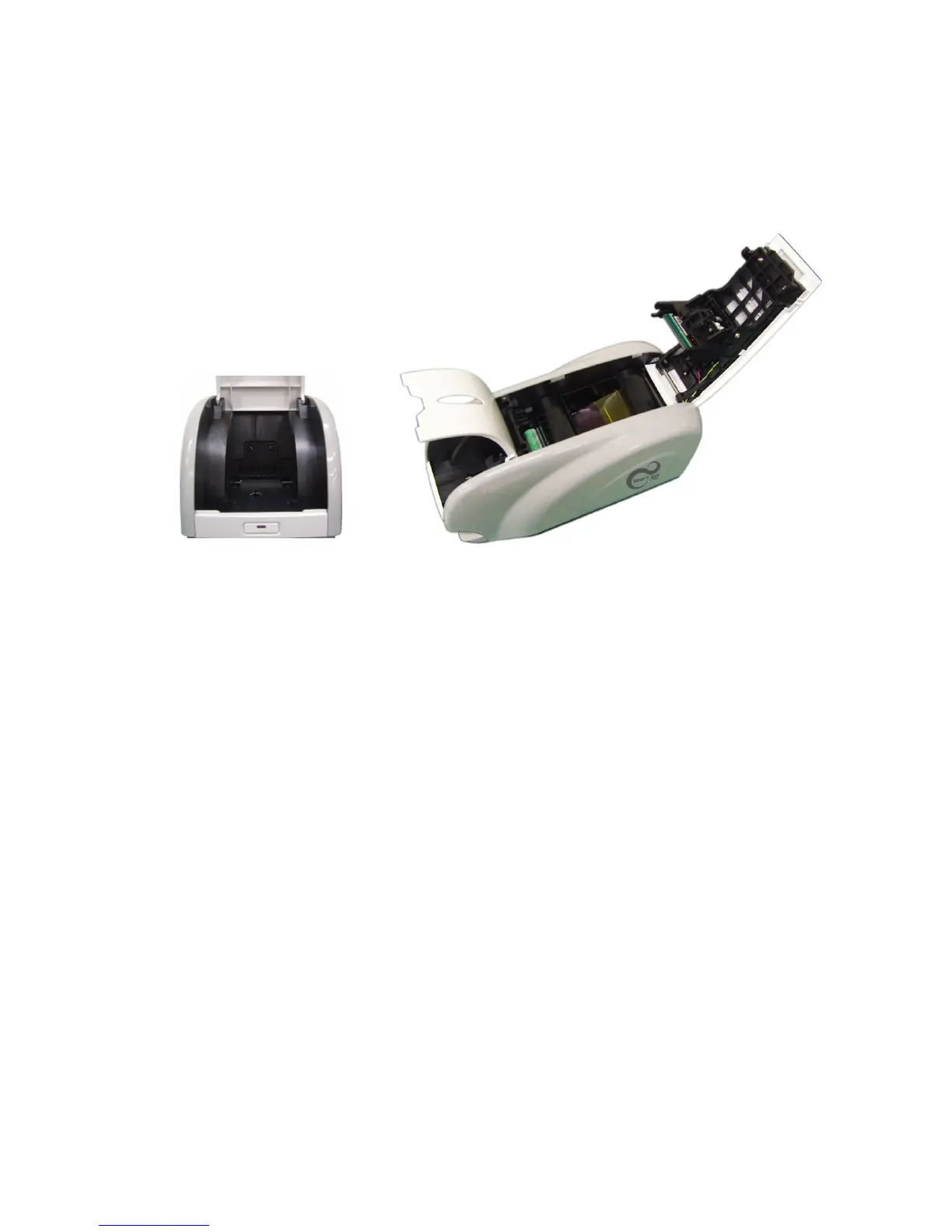

Pic.8 SMART-30 Inside features
① Output hopper(Stacker)
Collect the printed card and/or encoded cards.
② Input hopper
Load the cards for printing.
③ Card thickness control lever
Adjust the cards thickness.
④ Ribbon cartridge
Install the ribbon and the disposable cleaning roller.
⑤ Thermal Print Head
This enables the cards to be printed.
(Caution!: This is very hot after printing. Do not contact the surface of the Thermal Print Head
with fingers or a sharp metal object to avoid degrading print quality or damaging printer head
permanently.)
