idp SMART-50D - Network Configuration

36
2.5. Network configuration
2.5.1 Connecting network port

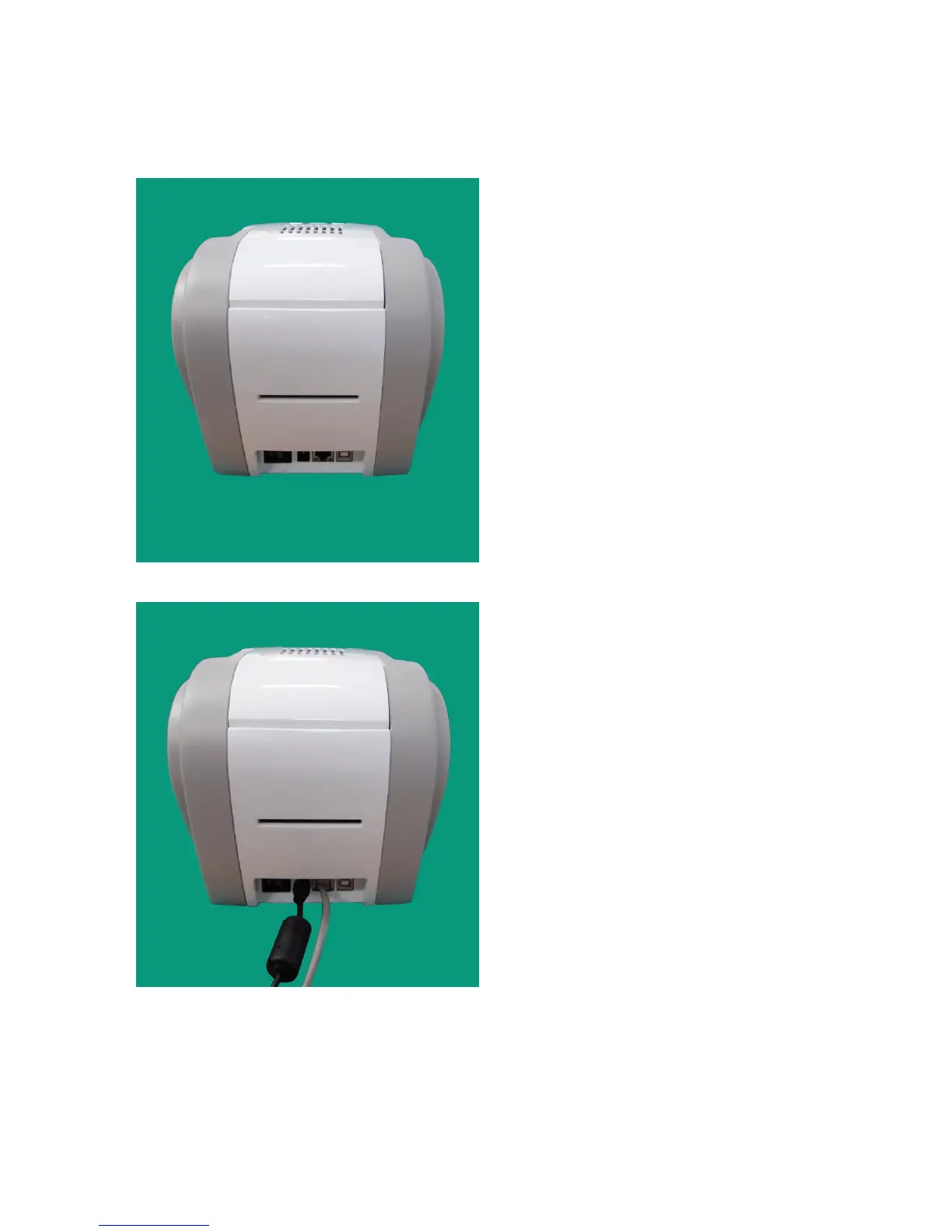

Pic.76 Rear view of SMART-50 printer 1
The printer which installed with
network option has
a port for network
connection as shown in the Pic.76 - ③.
① Power Switch
② Power Supply Connector
③ Network Port
④ USB Port
Pic.77 Rear view of SMART-50 printer 2
Please conne
ct network
cable (RJ45)
to a printer.
(Network cable is not supplie
d. Please ask
network administrator for more questions.)
① ② ③ ④
