66
“ICH Discontact” is to separate the encoder head from the IC chip of smartcard physically.
“Init” is to recognize and display the installed contact smartcard reader. The recognized
encoder will be displayed at the pull down control.
“Contact” is to contact with the smartcard electrically and initialize.
“Reset” is to finish the function electrically. After “Contact”, you can run “Get ATR”, “Read”,
“Write” and “Clear”.
“Get ATR” is to read the ATR data.
“Read” and “Write” are to read and write the defined data (Name, Address and Phone). These
could not be applied to all cards.
“Clear” is to clear the displayed data (ATR, Name, Address and Phone).
In case the data is read and written using APDU, Read/Write can be done by APDU commands.
“Load APDU” is to read the stored APDU commands.
“Save APDU” is to save the displayed APDU commands.
“Clear APDU” is to clear the APDU section.
“Send APDU” is to run the APDU commands.
Batch process repeats the following steps sequentially, Card “IN” Move “IC” IC “ICH
Contact” IC “Init” IC “Contact” IC “Reset” IC “ICH Dis-contact” Card “OUT”.

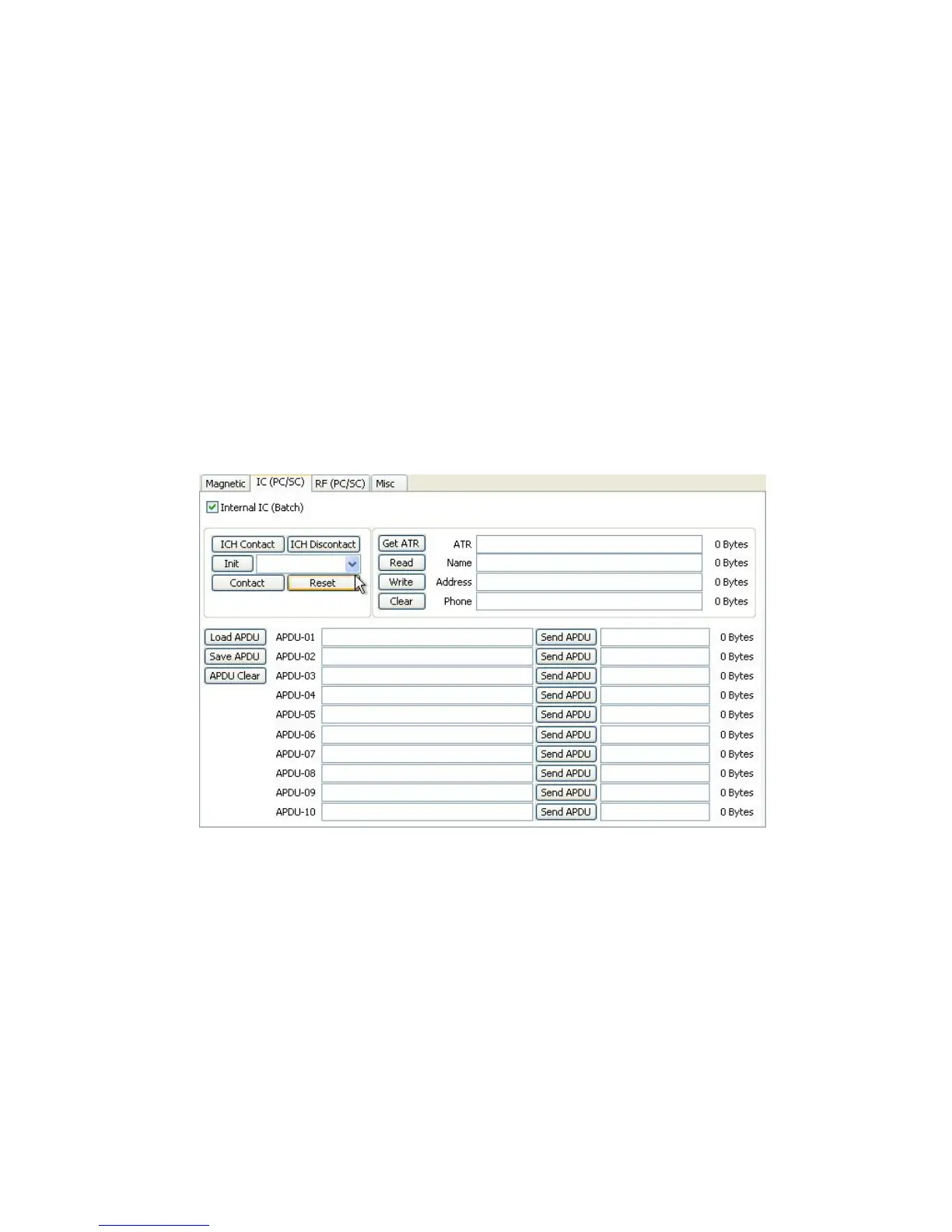

Pic.118 Contact smartcard encoding
RF(PC/SC) : Contactless Smartcard Encoding
In SMART-30 printer, a contactless smartcard encoder can be installed and SMART-50 printer
has the internal and external contactless smartcard encoder. RF(PC/SC) is to read and write the
contactless smartcard. Using internal encoder, the printer brings a card into the printer from input
hopper and encodes a smartcard. Using external encoder, after putting a card on the top cover,
you can encode because the antenna installed under the top cover is used. Therefore, “Batch” is
applied only to the internal contactless smartcard encoding.
“Contact” is to contact with the contactless smartcard electrically and initialize.
“Reset” is to finish the function electrically. After “Contact”, you can run “Read”, “Write” and
“Clear”.
“Get UID” is for getting Chip Serial Number(CSN)
“Read” and “Write” are to read and write the defined data (Name, Address and Phone). These
could not be applied to all cards.
