2.2. Loading the cards
This section shows how to load the plastic cards.

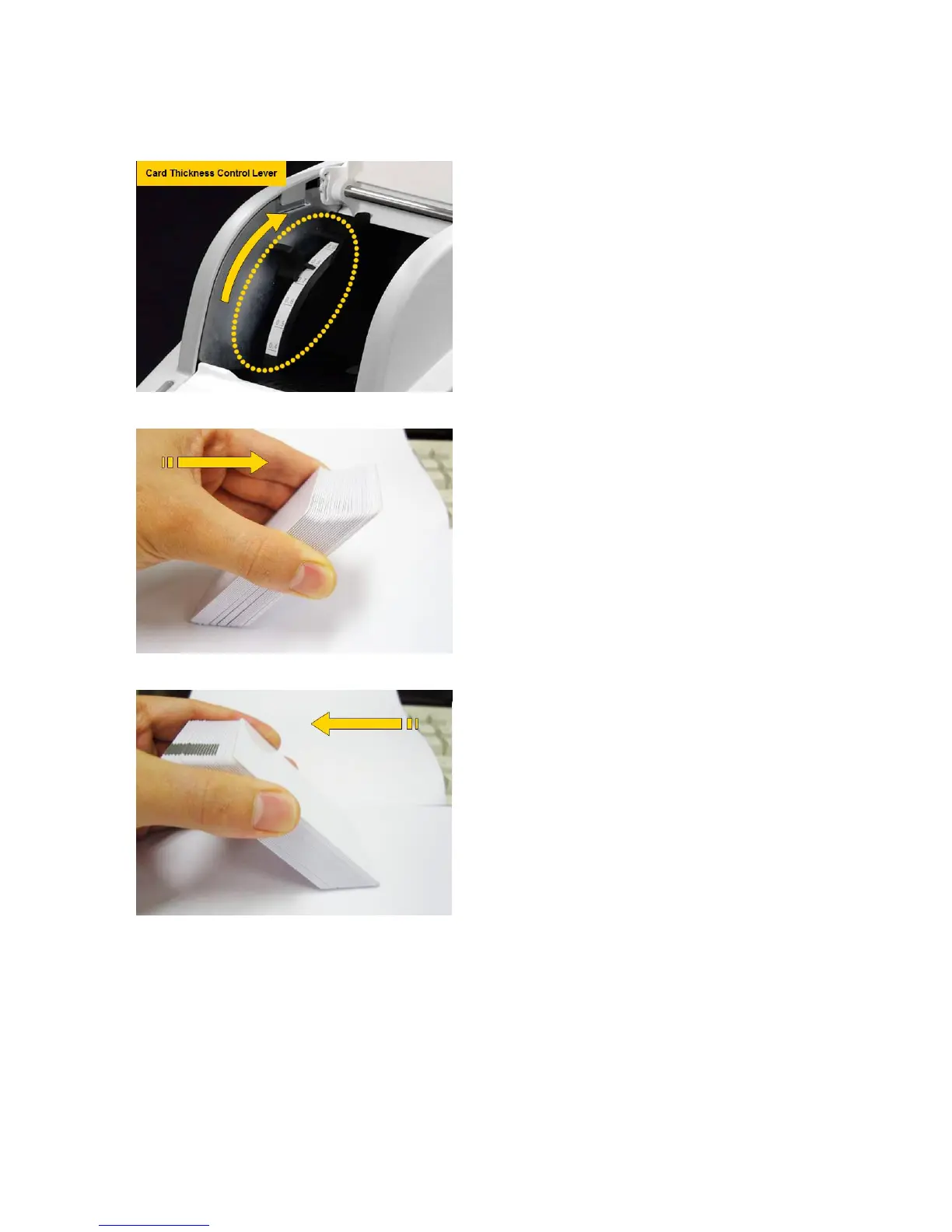

Pic.19 Adjusting the card thickness lever
2.2.1.
Open the input hopper
cover
.
2.2.2.
Adjust the card thickness with the
card thickness control lever.
(
Caution! If the adjustment is not correct, it will
make some error. Use the type of cards in
the
specification of this manual. Always keep the
card surface clean state.)
Pic.20 Preparing the card 1
Pic.21 Preparing the card 2
2.2.4.
To separate cards from each other,
push a stack of cards
back and
forth to an angle about 45 degrees
vertically.
(
Static charge makes cards stuck with
significant adhesive force. These cards must be
physically separated from each other before
inserted into the feeder. If not separated,
feeding or printing problems may occur.)
