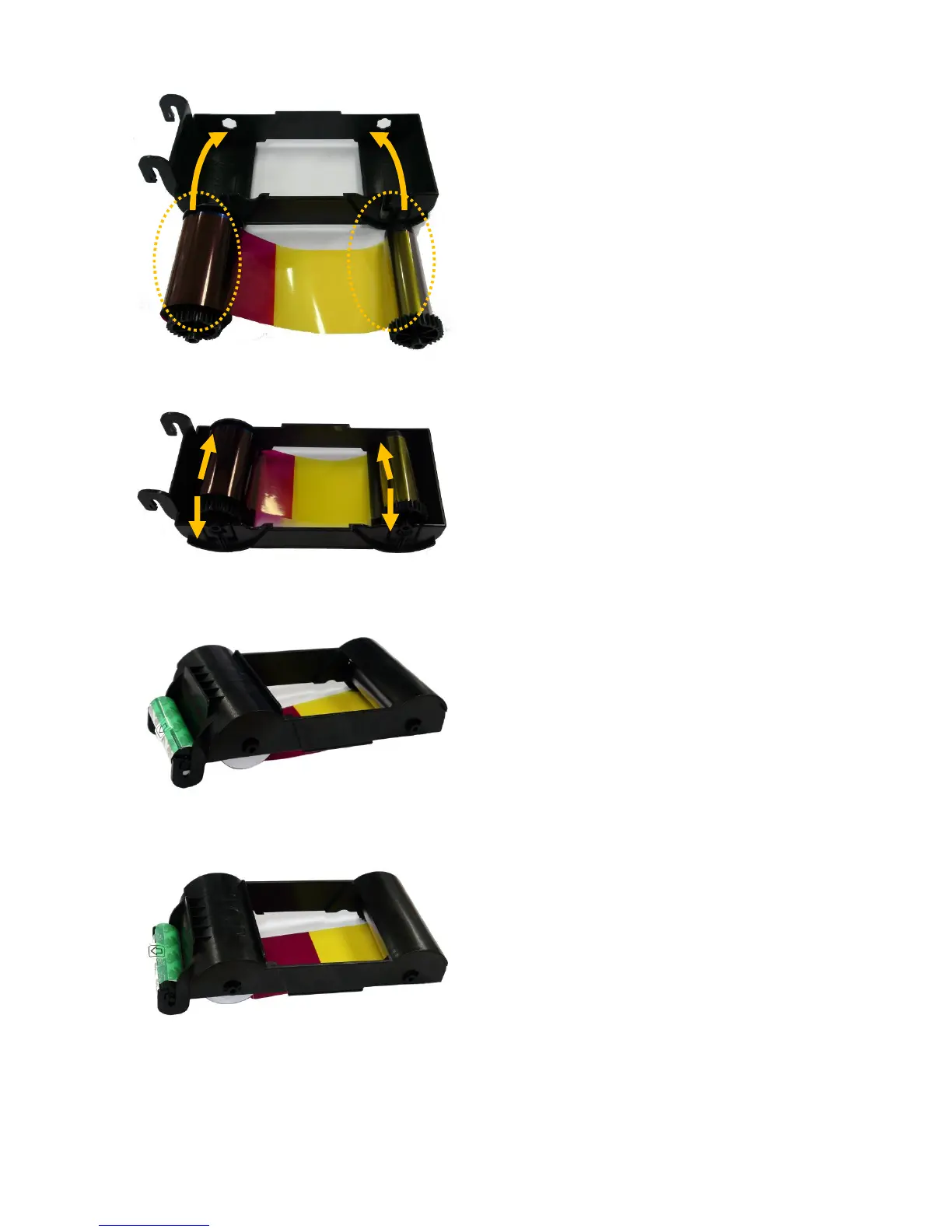

Pic.13 Loading the ribbon 1
2.1.4.
Install a
rib
bon into the ribbon
cartridge as left Pic. 13.
Pic.14 Loading the ribbon 2
2.1.5.
Insert
the supply side of the ribbon
to no.1 hole and press the opposite
(no.2). Insert the take-up side of the
ribbon same method to no.3 and
no.4. After inserting, tighten the
ribbon.
(Caution! If the ribbon is not tightened, a
rolling up error might be happened.)
Pic.15 Installing the cleaning roller
2.1.6.
Install the disposable cleaning
roller to the ribbon cartridge.
Pic.16 Peeling the protective wrapper
2.1.7.
Peel the protective wrapper
from
the cleaning roller.
After removing the protective wrapper, the
cleaning roller should be kept clean from
fingerprints, dust and foreign substances to
avoid contamination because it is adhesive.
(Caution! Do not use without peeling off the
protective wrapper because the cleaning
roller cannot perform its function.)
