7.3.3 Process data of the AS-i slaves
17584

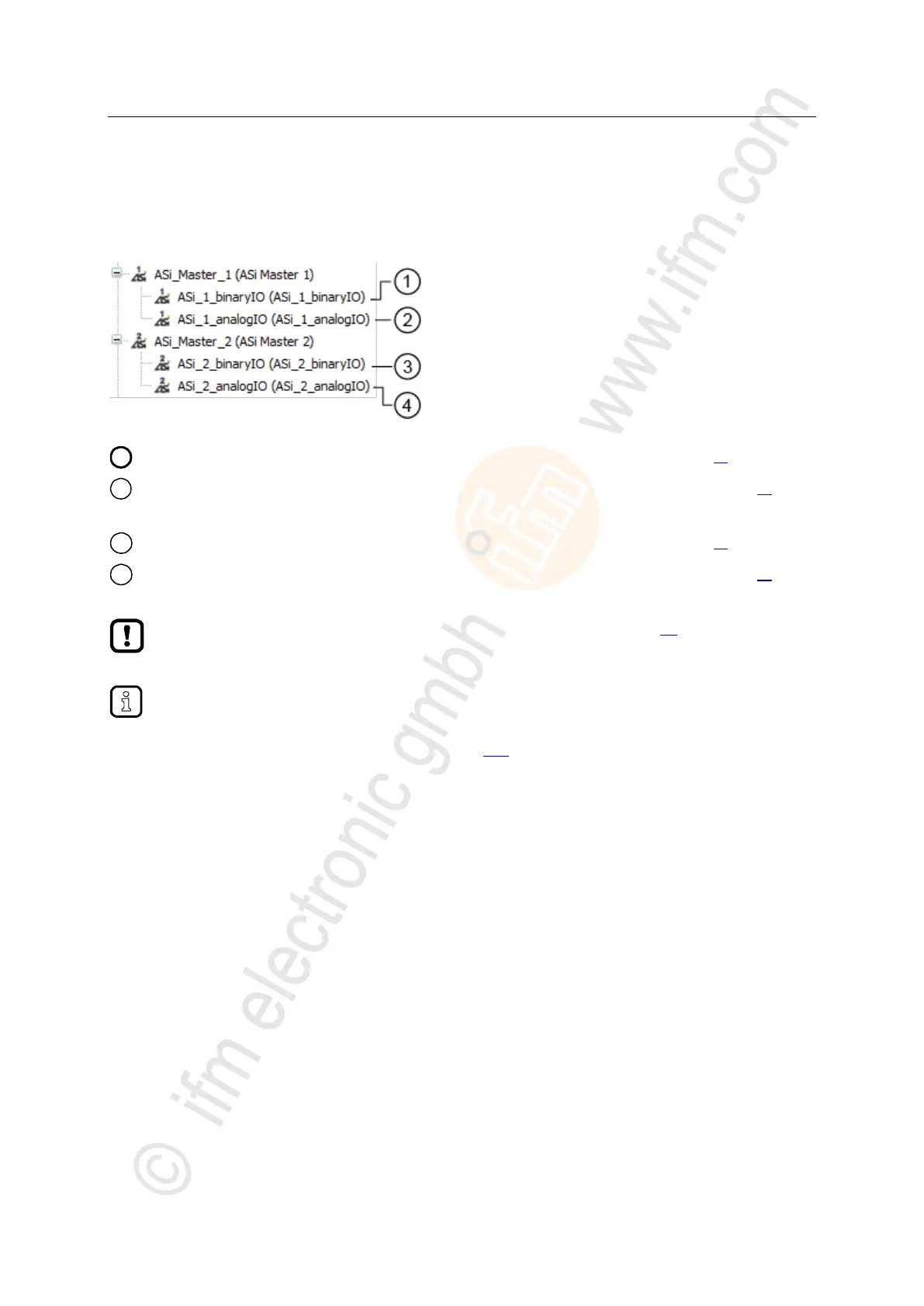

The project tree offers direct access to the cyclically updated process images of the inputs and outputs
of the AS-i slaves.
1
Digital input and output data of the slave at AS-i master 1: → Digital input and output data (→ p. 30)
2
Analogue input and output data of the slaves at AS-i master 1: → Analogue input and output data (→ p. 30)
3
Digital input and output data of the slave at AS-i master 2: → Digital input and output data (→ p. 30)
4
Analogue input and output data of the slaves at AS-i master 2: → Analogue input and output data (→ p. 30)
Consider validity of the interface data (→ Validity of the interface data (→ p. 28))!
The function library ACnnnn_Utils.library contains the complex variable ASi_NET. The
variable represents all inputs and outputs of a completely developed AS-i network. The
programmer can use this data structure to store the process images of the inputs and outputs
of an AS-i network. (→ ASI_NET (STRUCT) (→ p. 117))
