7.4.6 Send commands to the system and the AS-i master
17659
Similar to the acyclic transmission command channels and data sets of the device, the programmer
can send commands to the system or an AS-i master with the FB ACnnnn_SysCmd
(→ ACnnnn_SysCmd (→ p. 121)).
 System command overview: → Table: System commands (→ p. 122)
 Overview AS-i master commands: → Table: AS-i master commands (→ p. 123)
By default, the FB ACnnnn_SysCmd is hidden. To add the FB to a program module:

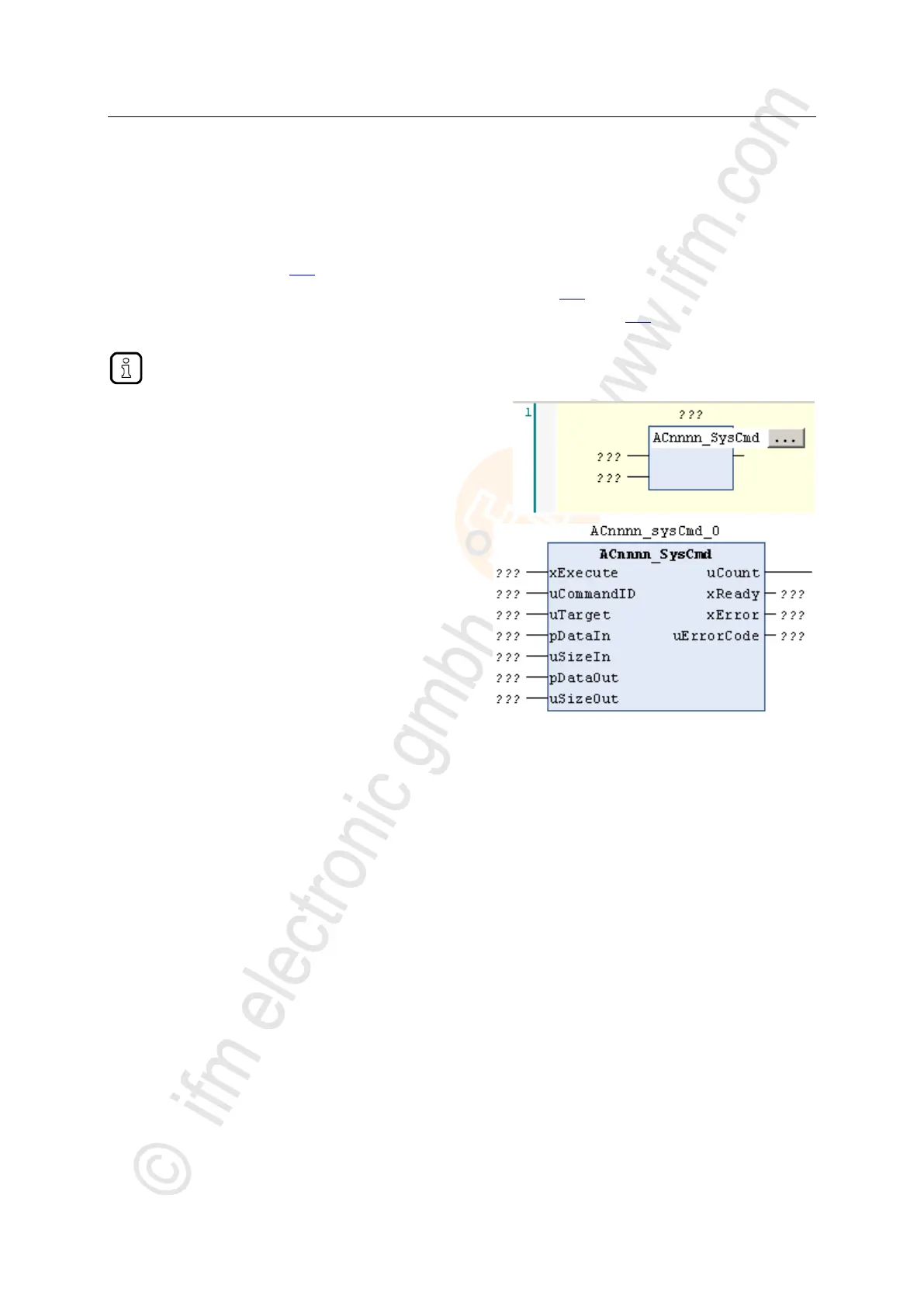

► Highlight the required network and add an empty function block with [FBD/LD/IL] > [Insert Empty Block].
> Network shows empty FB.
► Double-click on the name field of the FB
► Enter designation ACnnnn_SysCmd and
confirm with [ENTER].
> FB has inputs and outputs of the
ACnnnn_SysCmd.
► Adjust inputs and outputs of the FB in
accordance with the required command.
