Ihse Draco User Manual

Draco KVM Extender
12 2011-03-09

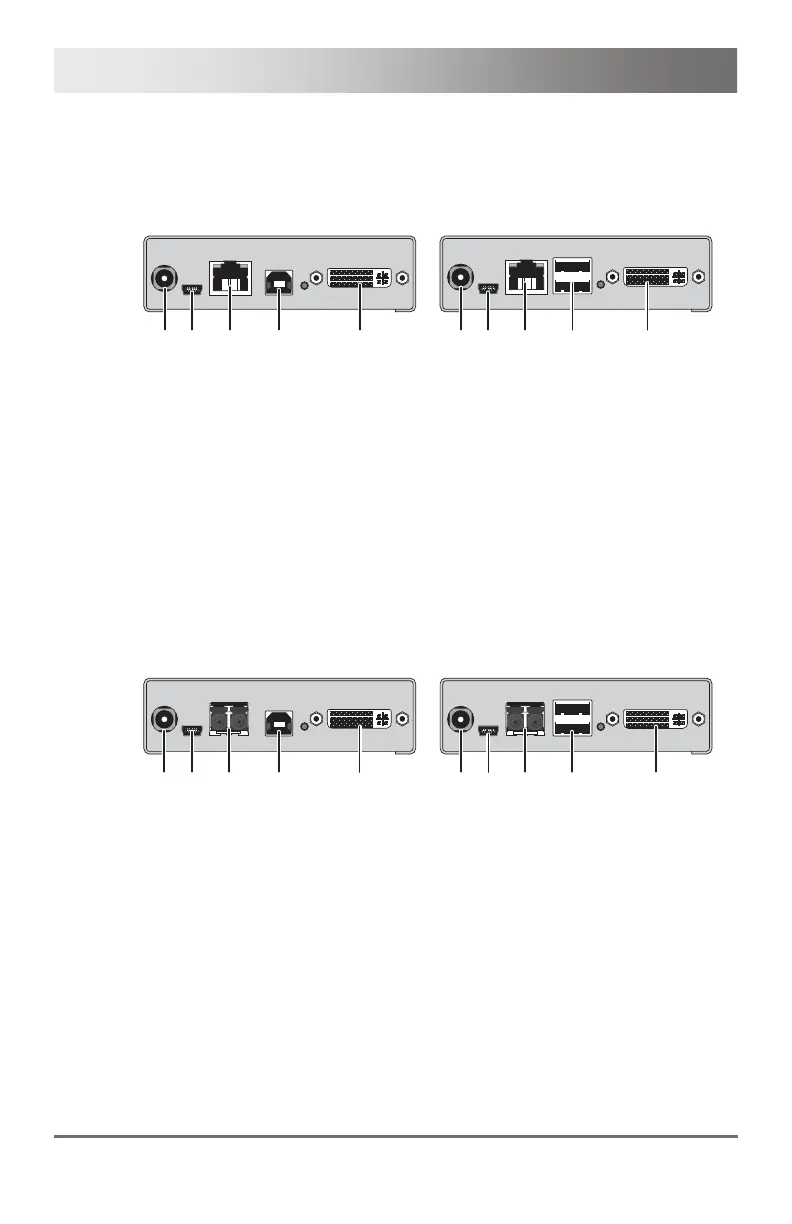

3.6 Device Views
Pos: 10 /806-IHSE/Besc hreibung/Gerätea nsichten/477- xx/1SHC (Single-Head Cat X) @ 5\mod_1278934284276_6. doc @ 42920 @ 3
3.6.1 Model K477-1SHC (Single-Head Cat X)
CPU Unit CON Unit
1
2
3
4
5
1 2
3
4
5
Rear View Rear View
1 Connect to 5VDC power
supply
2 Service port
3 Connect to interconnect cable
4 To CPU: USB-HID
5 To CPU: DVI-D
1 Connect to 5VDC power
supply
2 Service port
3 Connect to interconnect cable
4 Connect to USB-HID devices
5 Connect to DVI monitor
Pos: 11 /806-IHSE/Besc hreibung/Gerätea nsichten/477- xx/1SHM _1SHS (Single-Head Glasfaser) @ 5\mod_12789348 61511_6.doc @ 42940 @ 3
3.6.2 Model K477-1SHM / -1SHS (Single-Head Fiber)
CPU Unit CON Unit
1
2
3
4
5
1
2
3
4
5
Rear View Rear View
1 Connect to 5VDC power
supply
2 Service port
3 Connect to interconnect cable
4 To CPU: USB-HID
5 To CPU: DVI-D
1 Connect to 5VDC power
supply
2 Service port
3 Connect to interconnect cable
4 Connect to USB-HID devices
5 Connect to DVI monitor
Pos: 12 /806-IHSE/Besc hreibung/Gerätea nsichten/477- xx_COMP/1S4CA (mit Analog- Audio / Seriell) @ 5\mod_129 1647476005_6.doc @ 45820 @ 3
