Ihse Draco - Model K477-1 SHCV (Single-Head Cat X with VGA)

Description
2011-03-09 19

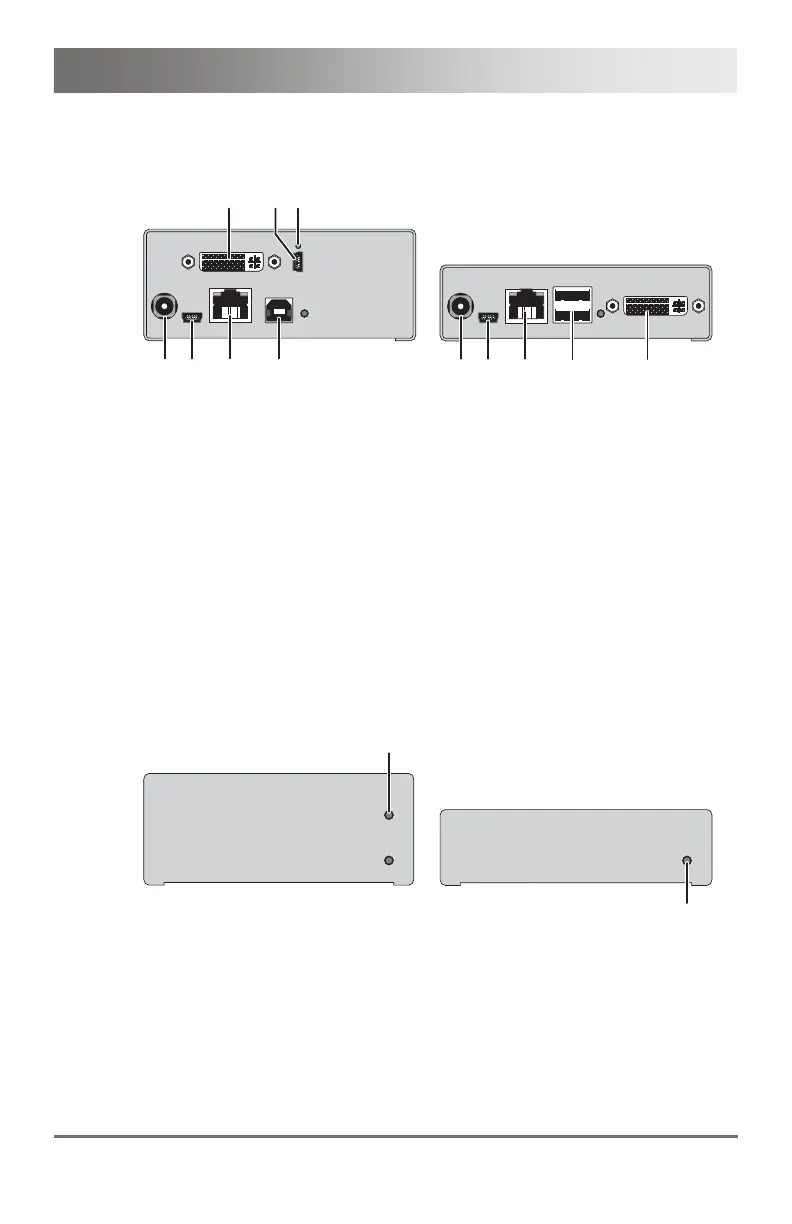

3.6.9 Model K477-1SHCV (Single-Head Cat X with VGA)
CPU Unit CON Unit
6
5
1
2
3
4
7
1 2
3
4
5
Rear View Rear View
1 Connect to 5VDC power
supply
2 Service port (KVM)
3 Connect to interconnect cable
4 To CPU: USB-HID
5 To CPU: DVI-I (VGA / DVI)
6 Service port (DVI-I)
7 IR receiver for remote control
1 Connect to 5VDC power
supply
2 Service port
3 Connect to interconnect cable
4 Connect to USB-HID devices
5 Connect to DVI monitor
CPU Unit CON Unit
1
1
Front View Front View
1 IR receiver for remote control 1 IR receiver for remote control
