Draco KVM Extender
24 2011-03-09
3.7.1 Status Digital Audio (Option)

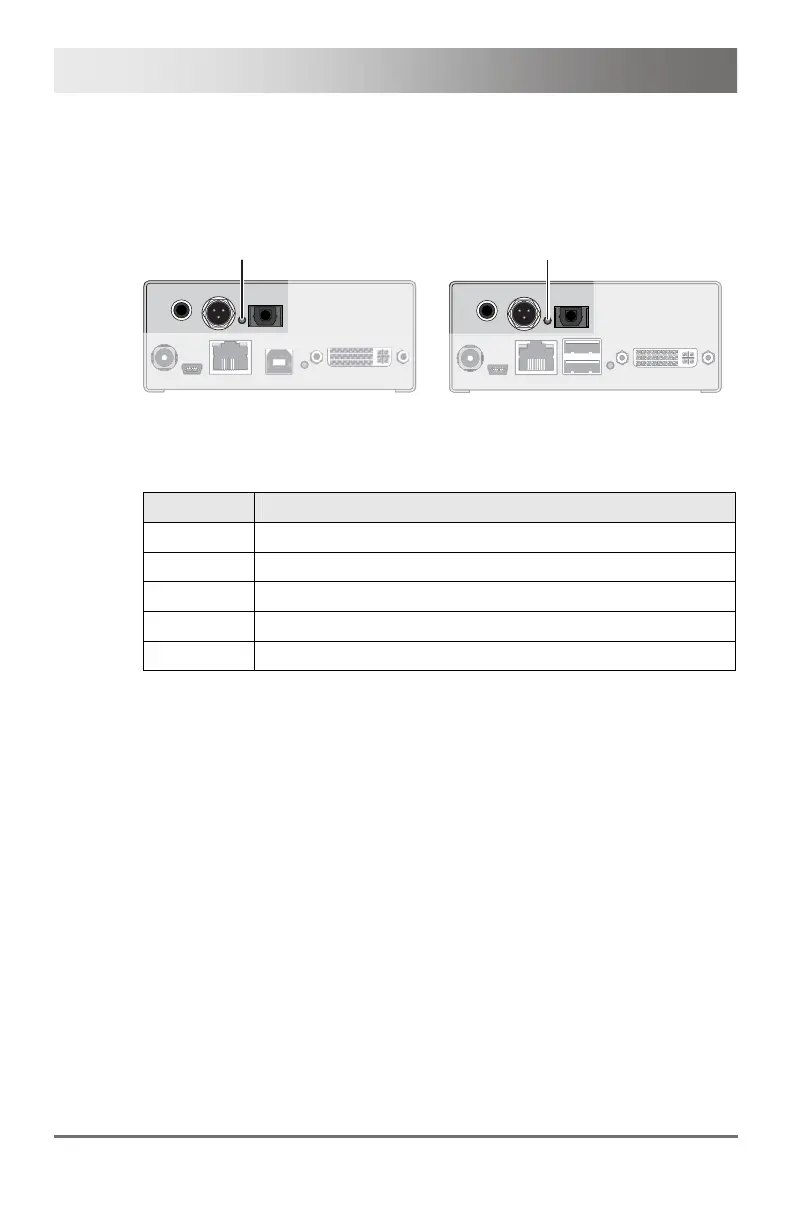

The KVM Extender with optional digital audio is fitted with a further multi-
color LED on the rear side for indication of the connection status:
CPU Unit CON Unit
1
1
Rear View Rear View
LED 1: Digital Audio Status
LED color Description
Red No signal
Cyan CPU Unit: RCA signal available
Violet CPU Unit: XLR signal available
Blue CPU Unit: TOSLINK signal available
Green CON Unit: Signal available
