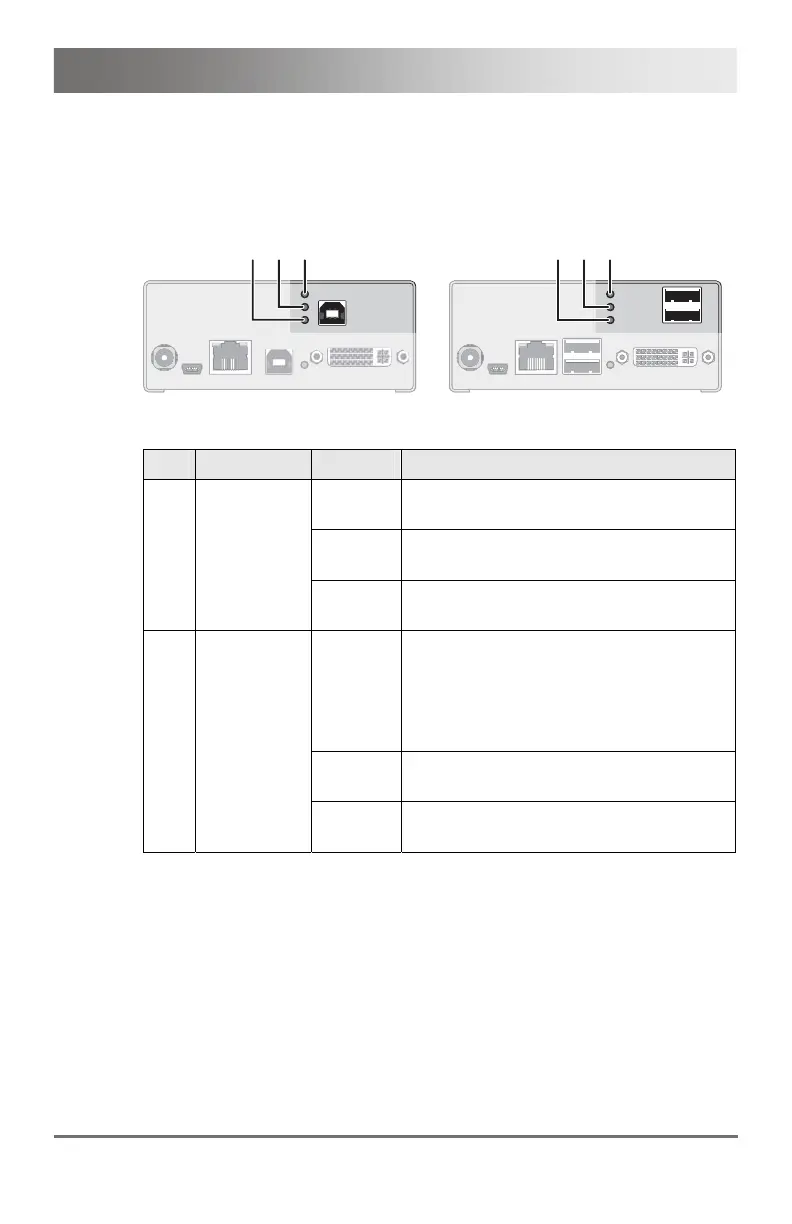

3.7.2 Status USB-HID Add-On (Option)
The KVM Extender with optional USB-HID is fitted with three further LEDs
on the rear side for indication of the connection status:
CPU Unit CON Unit
123
1
2
3
Rear View Rear View
Pos. LED Status Description
Off
No USB-HID device or not supported
USB device connected
Flashing
fast
USB-HID device active
1, 2
Device LED
(orange)
On
USB-HID device ready or KVM
Extender in command mode
Off No power supply voltage
CPU Unit: KVM Extender in
command mode or no connection
CON Unit: Keyboard in command
mode
Flashing
slowly
CON Unit: KVM Extender in command
mode or no connection
3
Status LED
(orange)
Flashing
fast
Operating status
