Description
2011-03-09 13

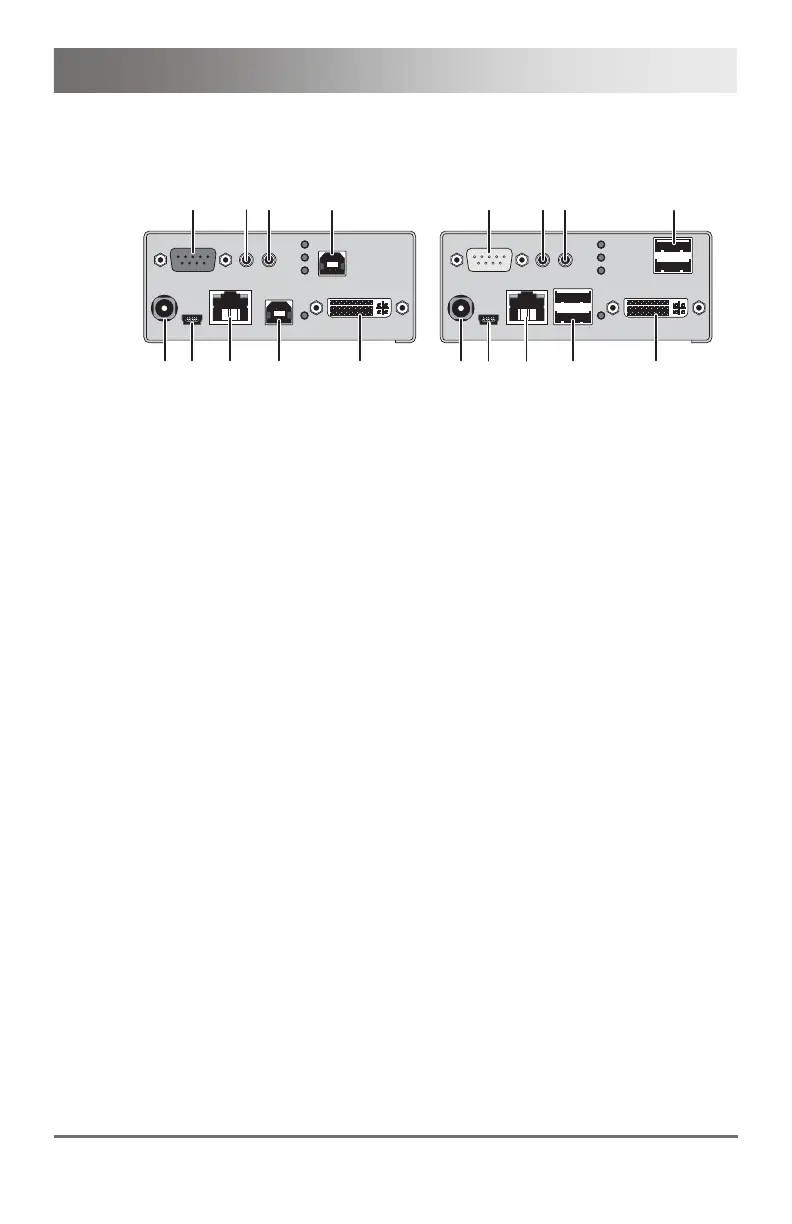

3.6.3 Model K477-1S4CA (Analog Audio / Serial)
CPU Unit CON Unit
6 7 8
1
2
3
4
5
9
6 7 8
9
1
2
3
4
5
Rear View Rear View
1 Connect to 5VDC power
supply
2 Service port
3 Connect to interconnect cable
4 To CPU: USB-HID 1
5 To CPU: DVI-D
6 Connect to serial (D-Sub 9)
7 Audio IN
8 Audio OUT
9 To CPU: USB-HID 2
1 Connect to 5VDC power
supply
2 Service port
3 Connect to interconnect cable
4 Connect to USB-HID devices 1
5 Connect to DVI monitor
6 Connect to serial (D-Sub 9)
7 Audio IN
8 Audio OUT
9 Connect to USB-HID devices 2
Pos: 13 /806-IHSE/Besc hreibung/Gerätea nsichten/477- xx_COMP/1S4MA / -1S4SA (mit Anal og-Audio / Seriell) @ 5\ mod_1291647640927_6. doc @ 45838 @ 3
