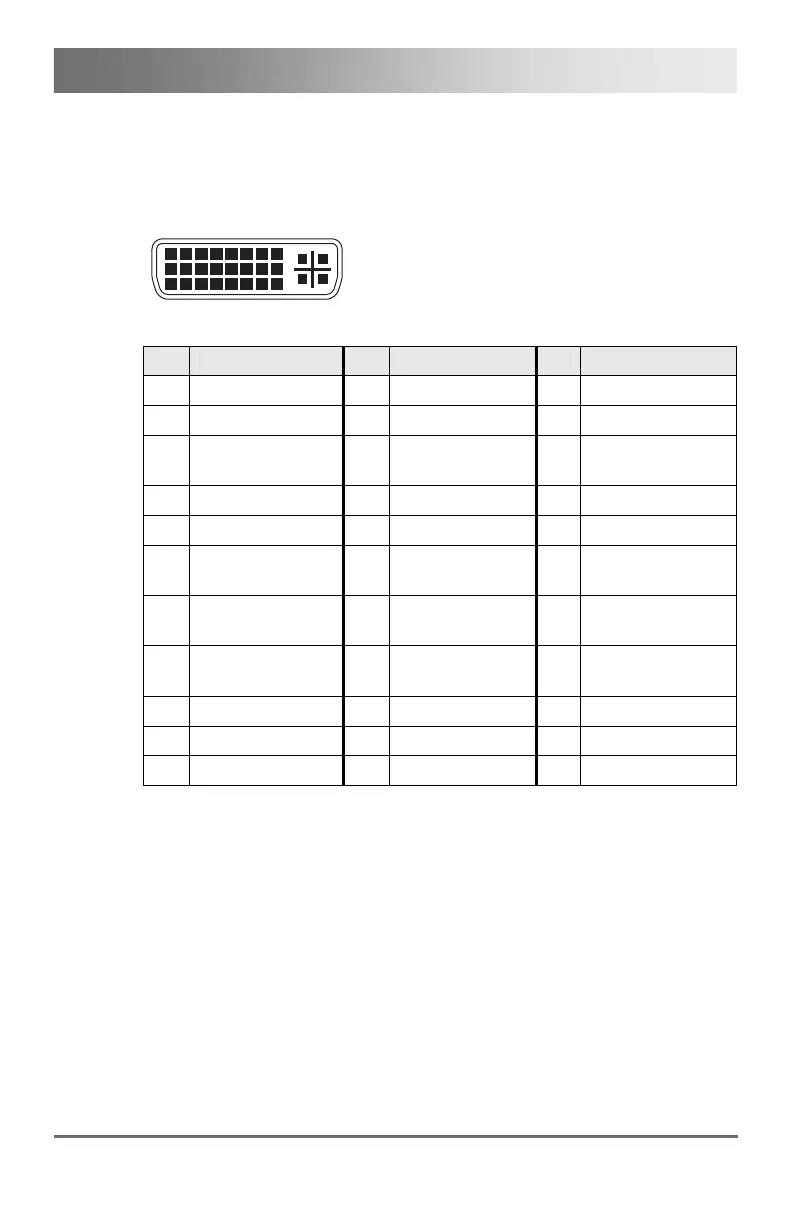

Specifications
2011-03-09 45
7.4 Connector Pinouts
Pos: 54 /806-IHSE/ Technische Daten/Pinbe legungen/Buchse DVI- D Single-Link @ 5\mod_12785 78723073_6.doc @ 42333 @
Connector DVI-D Single-Link
1.............................8 C1 C2
C5
17...........................24
C3 C4
Pin Signal Pin Signal Pin Signal
1 T.M.D.S data 2– 9 T.M.D.S data 1– 17 T.M.D.S data 0–
2 T.M.D.S data 2+ 10 T.M.D.S data 1+ 18 T.M.D.S data 0+
3
T.M.D.S data 2
GND
11
T.M.D.S data 1
GND
19
T.M.D.S data 0
GND
4 n.c. 12 n.c. 20 n.c.
5 n.c. 13 n.c. 21 n.c.
6 DDC Input (SCL) 14
+5VDC high
impedance
22
T.M.D.S clock
GND
7
DDC Output
(SDA)
15 GND 23 T.M.D.S clock +
8 Internal use 16
Hot Plug
recognition
24 T.M.D.S clock
C1 Internal use C3 Internal use
C2 n.c. C5 GND C4 Internal use
