Ihse Draco User Manual

Draco KVM Extender
46 2011-03-09

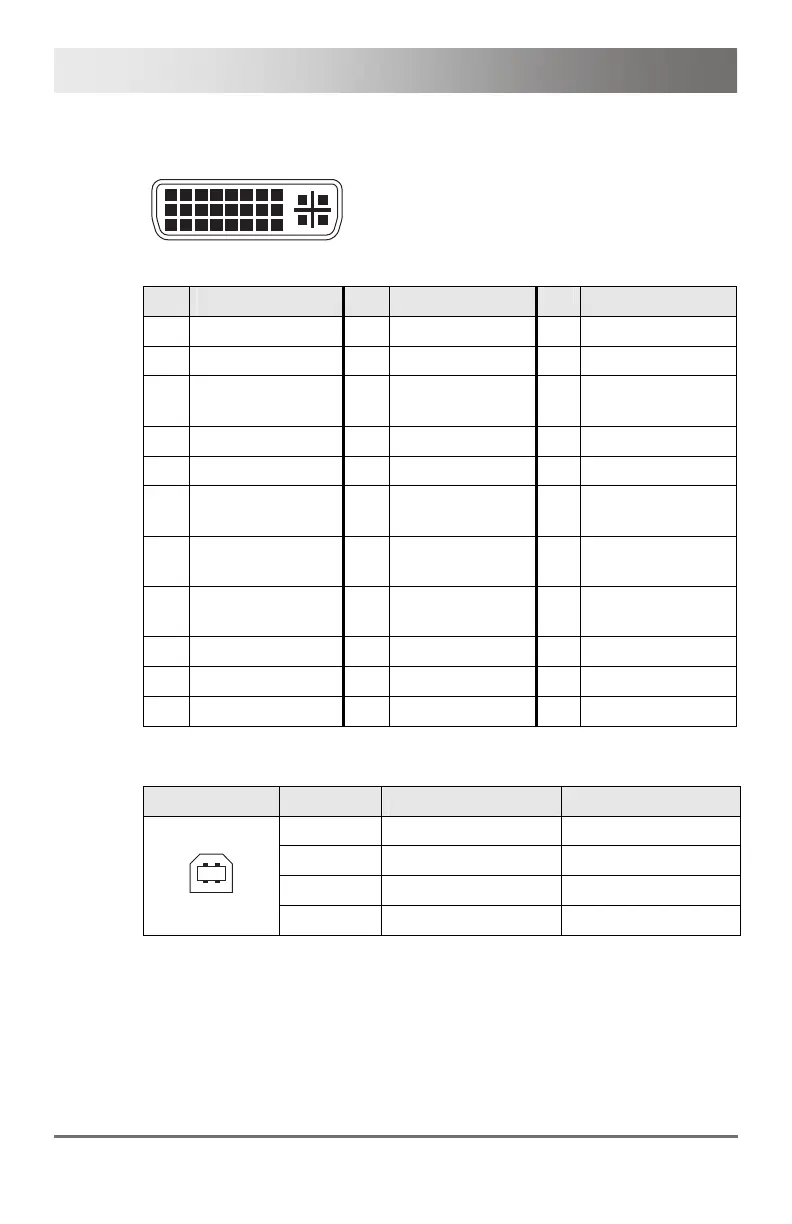

Connector DVI-I Single-Link
1.............................8 C1 C2
C5
17...........................24
C3 C4
Pin Signal Pin Signal Pin Signal
1 T.M.D.S data 2– 9 T.M.D.S data 1– 17 T.M.D.S data 0–
2 T.M.D.S data 2+ 10 T.M.D.S data 1+ 18 T.M.D.S data 0+
3
T.M.D.S data 2
GND
11
T.M.D.S data 1
GND
19
T.M.D.S data 0
GND
4 n.c. 12 n.c. 20 n.c.
5 n.c. 13 n.c. 21 n.c.
6 DDC Input (SCL) 14
+5VDC high
impedance
22
T.M.D.S clock
GND
7
DDC Output
(SDA)
15 GND 23 T.M.D.S clock +
8 Internal use 16
Hot Plug
recognition
24 T.M.D.S clock –
C1 Internal use C3 Internal use
C2 n.c. C5 GND C4 Internal use
Pos: 56 /806-IHSE/ Technische Daten/Pinbe legungen/Buchse USB Typ B @ 5\mod_1278578750464_6. doc @ 42351 @
Connector USB Type B
Picture Pin Signal Color
1 VCC (+5VDC) Red
2 Data – White
3 Data + Green
1
3
2
4
4 GND Black
Pos: 57 /806-IHSE/ Technische Daten/Pinbe legungen/Buchse USB Typ A @ 5\mod_1278578771214_6. doc @ 42369 @
