Ihse Draco User Manual

Specifications
2011-03-09 47

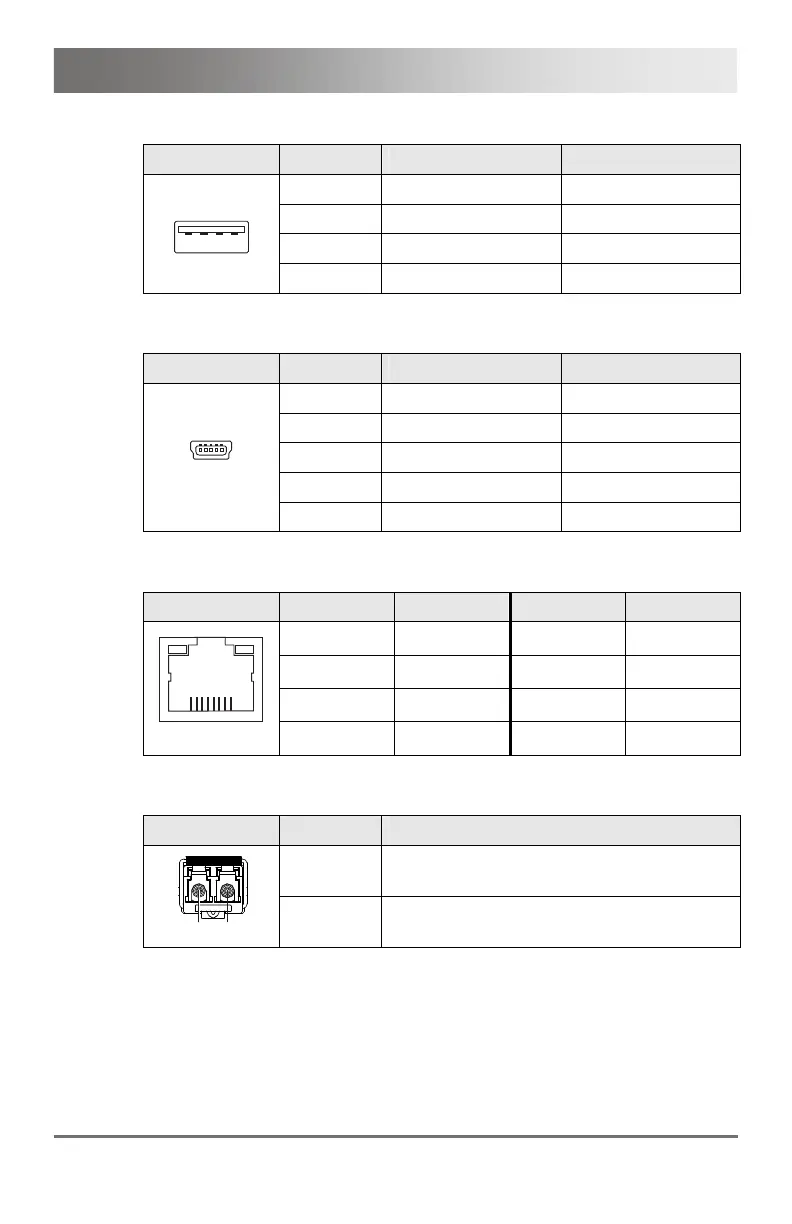

Connector USB Type A
Picture Pin Signal Color
1 VCC (+5VDC) Red
2 Data – White
3 Data + Green
1
3
2 4
4 GND Black
Pos: 58 /806-IHSE/ Technische Daten/Pinbe legungen/Buchse Mini -USB Typ B @ 5\mod_1278578794167 _6.doc @ 42387 @
Connector Mini USB Type B
Picture Pin Signal Color
1 VCC (+5VDC) Red
2 Data – White
3 Data + Green
4 n.c. –
....5
1
5 GND Black
Pos: 59 /806-IHSE/ Technische Daten/Pinbe legungen/RJ45 @ 5\mod_12785 78820011_6.doc @ 42405 @
RJ45
Picture Pin Signal Pin Signal
1 D1+ 5 D3–
2 D1– 6 D2–
3 D2+ 7 D4+
8..........1
4 D3+ 8 D4-
Pos: 60 /806-IHSE/ Technische Daten/Pinbe legungen/Glasfaser SFP Typ LC @ 5\mod_1278938501151 _6.doc @ 43210 @
Fiber SFP Typ LC
Picture Diode Signal
1 Data OUT
12
2 Data IN
Pos: 61 /806-IHSE/ Technische Daten/Pinbe legungen/Stromver sorgung @ 5\mod_127857884 9183_6.doc @ 42423 @
