Draco KVM Extender

48 2011-03-09

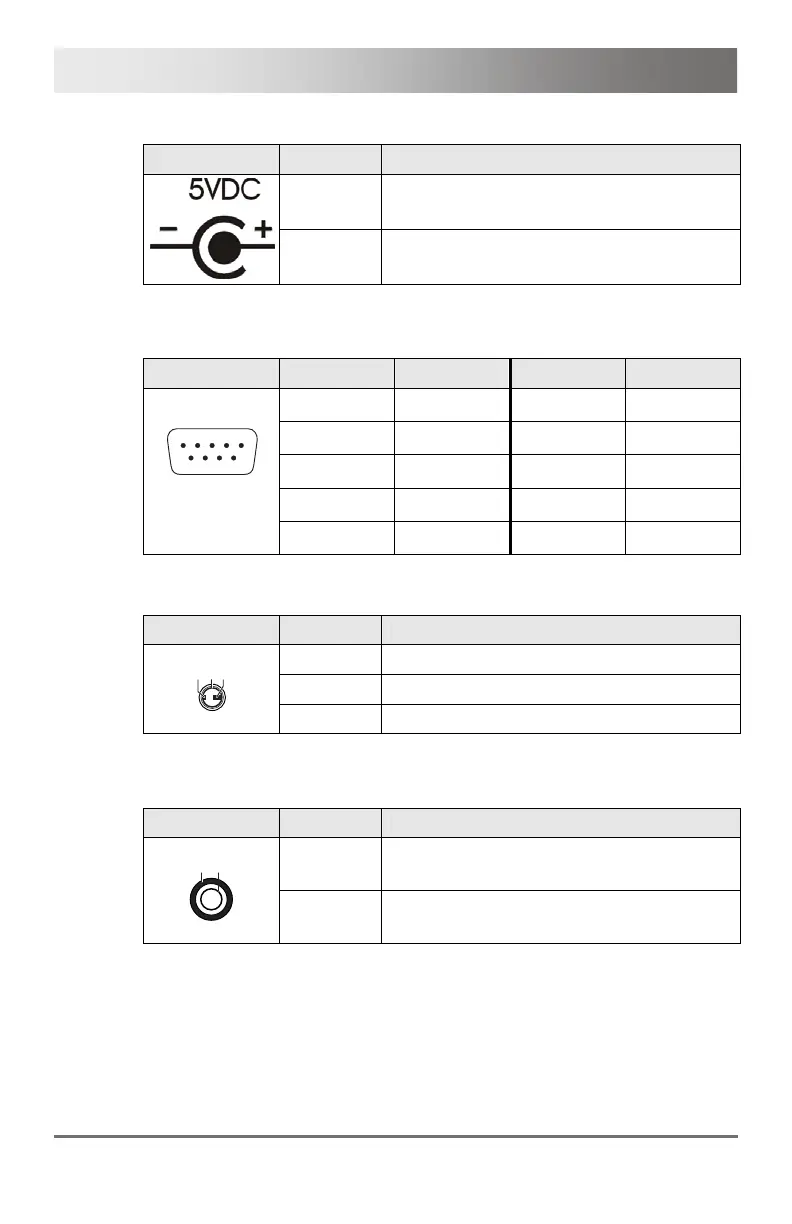

Power Supply

Picture Pin Signal

Inside VCC (+5VDC)

Outside GND

Pos: 62 /806-IHSE/ Technische Daten/Pinbe legungen/D-Sub 9 (Ser iell) @ 5\mod_12911286314 37_6.doc @ 44882 @

D-Sub 9 (Serial)

Picture Pin Signal Pin Signal

1 n.c. 6 DTR

2 CTS 7 TxD

3 RTS 8 RxD

4 DSR 9 n.c.

1.................5

6...........9

5 GND

Pos: 63 /806-IHSE/ Technische Daten/Pinbe legungen/Stereo- Klinkenbuchse 3,5 mm @ 5\mod_12911 28765156_6.doc @ 44901 @

3.5 mm Stereo Jack Plug

Picture Pin Signal

1 GND

2 Audio IN / OUT L

12 3

3 Audio IN / OUT R

Pos: 64 /806-IHSE/ Technische Daten/Pinbe legungen/RCA (Cinc h) @ 5\mod_1291128877593_6. doc @ 44920 @

RCA (Cinch)

Picture Pin Signal

1 GND

1 2

2 Data IN / OUT

Pos: 65 /806-IHSE/ Technische Daten/Pinbe legungen/Mini-XL R @ 5\mod_1291128998484_6. doc @ 44939 @
