Description
2011-03-09 23

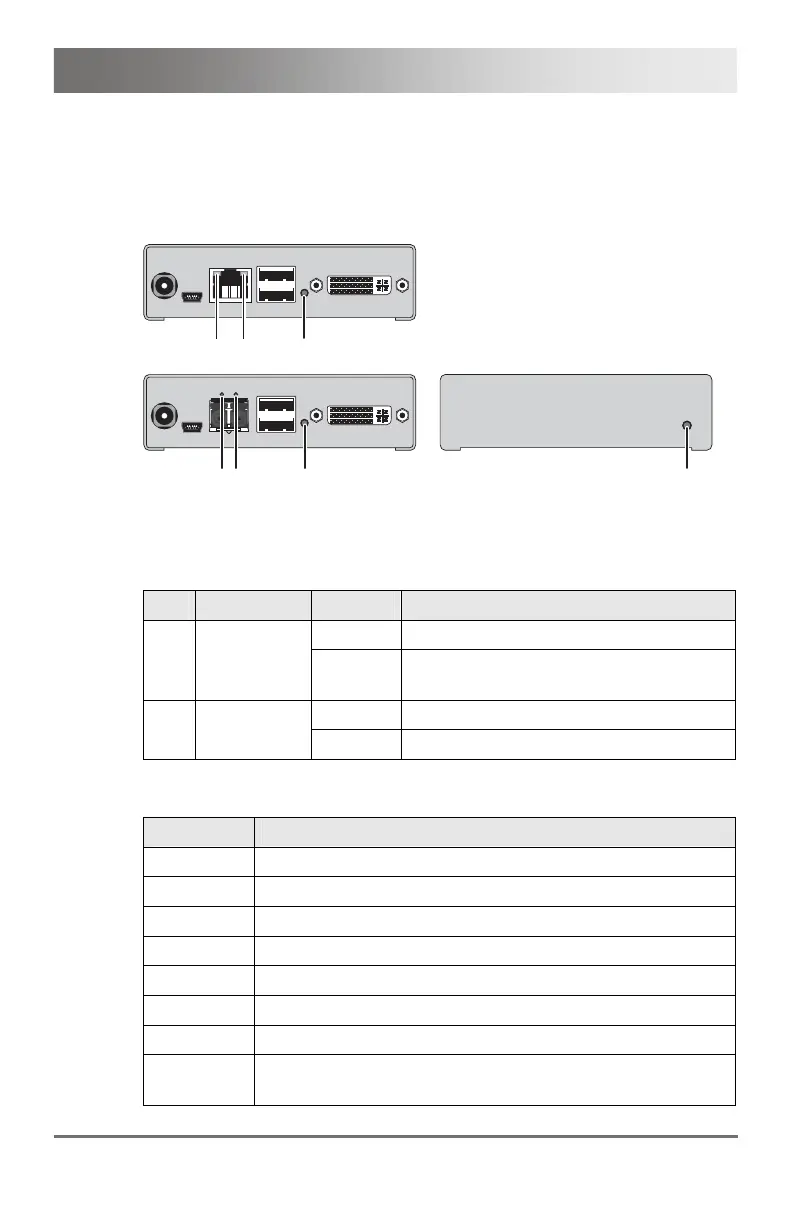

3.7 Status LEDs
The KVM Extender is fitted with a multi color LED on both sides for overall
status indication and with two further LEDs on the back side for indication
of the connection status.
1112
3
1
2
3
3
Rear View Front View
LED 1 and 2: Connection Status
Pos. LED Status Description
Off Connection available 1
Failure LED
(green)
On or
Flashing
Connection failure (flashing for about
20 s following a connection failure)
Flashing No connection via interconnect cable 2
Status LED
(green)
On Connection available
LED 3: USB and Video Status
LED color Description
Dark Red Device ready
Red Connection available
Blue USB connection available
Green Video available
Yellow Connection and USB signal available, no video
Violet Connection and video signal available, no USB signal
Light Blue USB and video signal available, no connection
Turquoise
Connection, USB and video signal available
(operating status)
