Draco KVM Extender
22 2011-03-09

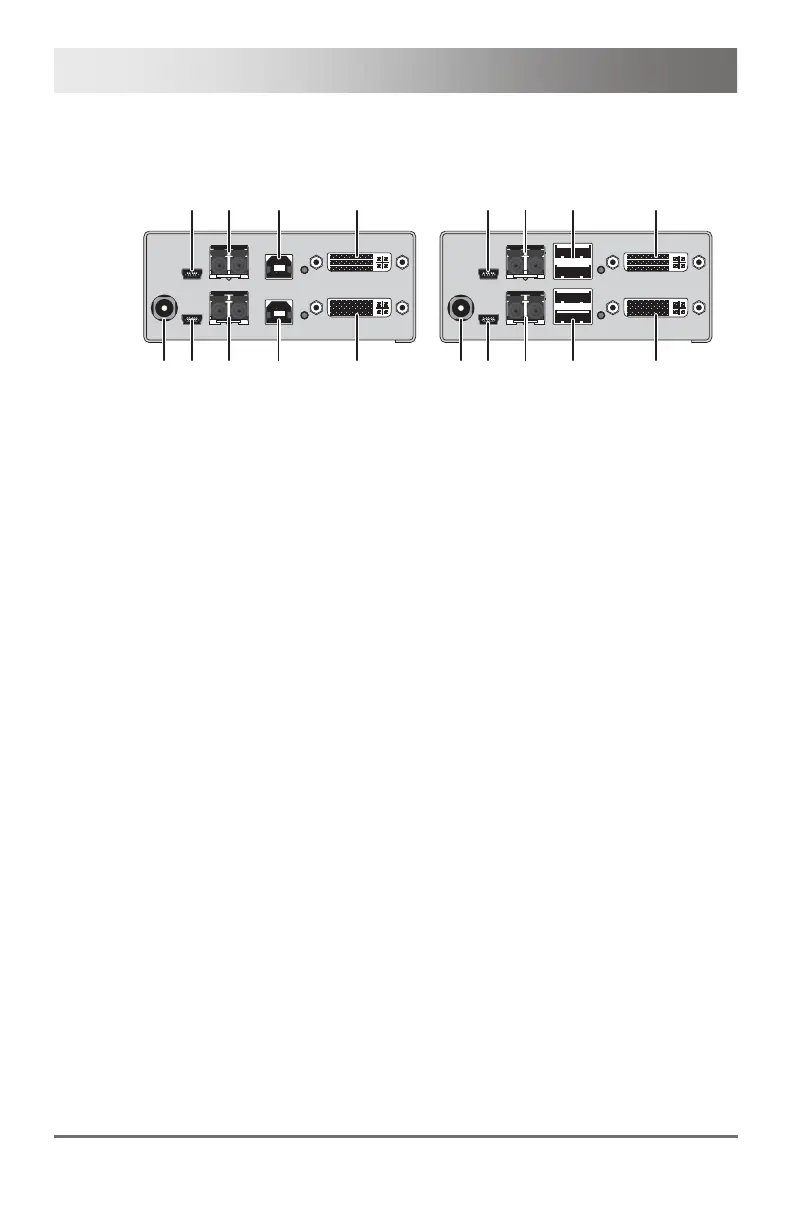

3.6.12 Model K477-2S4M / -2S4S (Dual-Head Fiber)
CPU Unit CON Unit
6
8
9
7
1
2
3
4
5
6
8
9
7
1
2
3
4
5
Rear View Rear View
1 Connect to 5VDC power
supply
2 Service port 1
3 Connect to interconnect
cable 1
4 To CPU: USB-HID 1
5 To CPU: DVI-D 1
6 Service port 2
7 Connect to interconnect
cable 2
8 To CPU: USB-HID 2
9 To CPU: DVI-D 2
1 Connect to 5VDC power
supply
2 Service port 1
3 Connect to interconnect
cable 1
4 Connect to USB-HID devices 1
5 Connect to DVI monitor 1
6 Service port 2
7 Connect to interconnect
cable 2
8 Connect to USB-HID devices 2
9 Connect to DVI monitor 2
