Ihse Draco User Manual

Specifications
2011-03-09 49

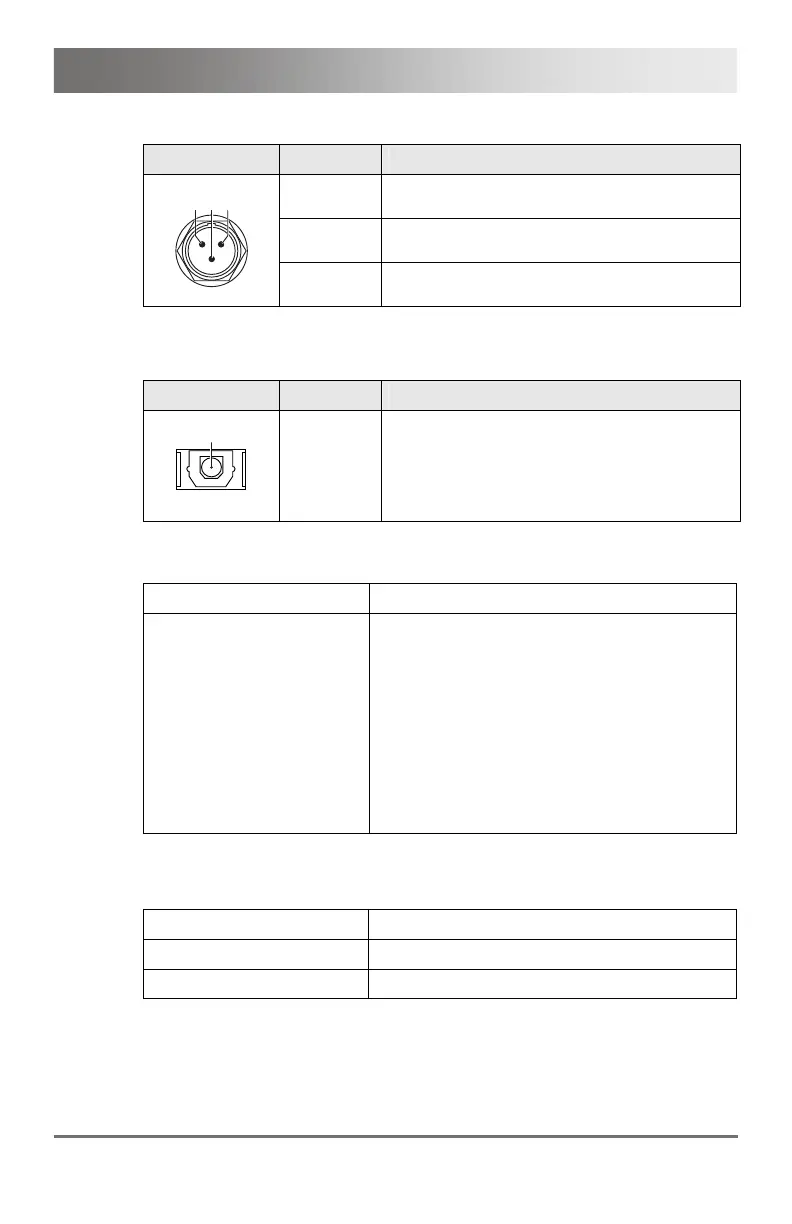

Mini-XLR
Picture Pin Signal
1 GND
2 Data +
132
3 Data –
Pos: 66 /806-IHSE/ Technische Daten/Pinbe legungen/TOSLINK @ 5\mod _1291129073656_6.doc @ 44958 @
TOSLINK
Picture Diode Signal
1
1 Data IN / OUT
Pos: 67 /806-IHSE/ Technische Daten/Stro mversorgung/477- xx_COMP @ 5\mod_129112923214 0_6.doc @ 44977 @ 2
7.5 Power Supply
Voltage
5VDC
Power Requirement
(per Unit)
 Single-Head devices: max. 800 mA
 Dual-Head devices: max. 1,600 mA
Optional Modules:
 Analog Audio / Serial: max. 300 mA
 Digital Audio: max. 300 mA
 USB-HID: max. 300 mA
 USB 2.0: max. 2,500 mA
 VGA: max. 900 mA
Pos: 68 /806-IHSE/ Technische Daten/Einsa tzbedingungen/A TB_Einsatzbedingungen @ 5\ mod_1278578980026 _6.doc @ 42480 @ 2
7.6 Environmental Conditions
Operating Temperature
41 to 113°F (5 to 45°C)
Storage Temperature
–13 to 140°F (–25 to 60°C)
Relative Humidity
Max. 80% non-condensing
Pos: 69 /806-IHSE/ Technische Daten/Abmessun gen/477-xx_COMP @ 5\ mod_1291129370218_6. doc @ 44996 @ 2

Ihse Draco Specifications

General

Brand	Ihse
Model	Draco
Category	Extender
Language	English
