Description
2011-03-09 17

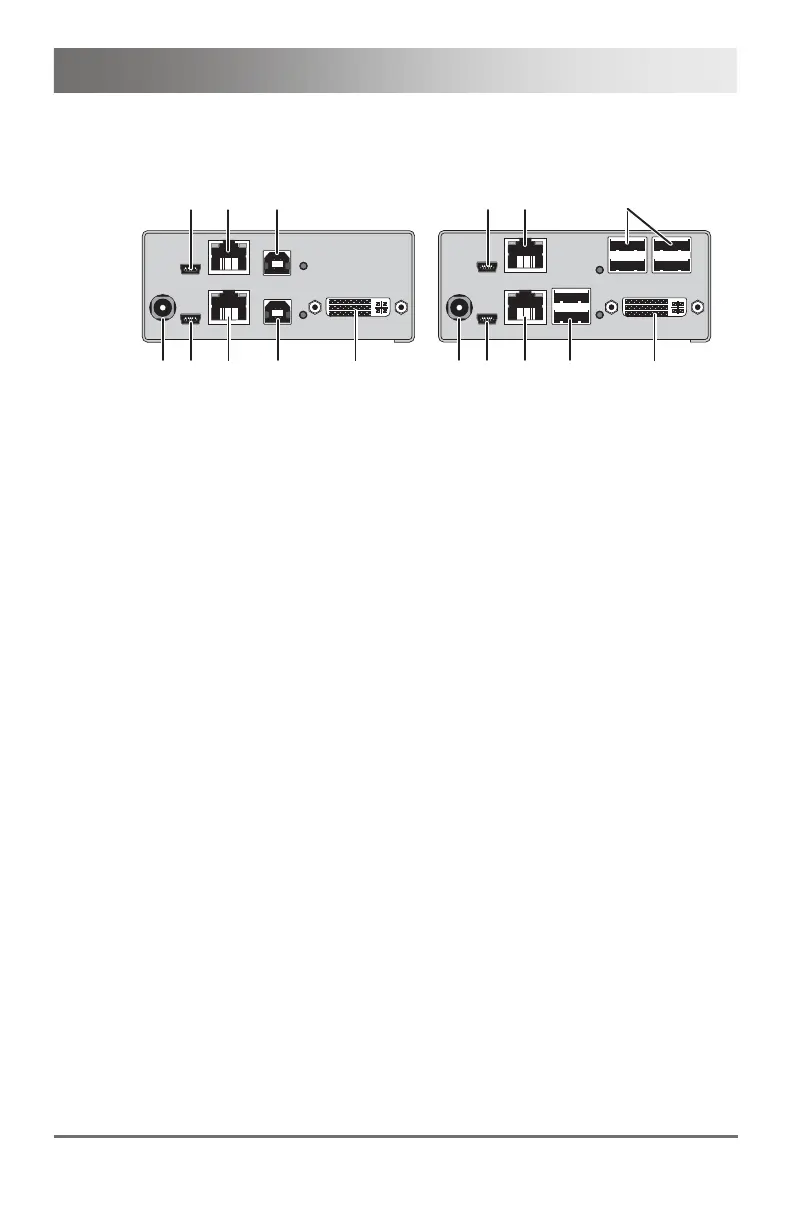

3.6.7 Model K477-1STC (USB 2.0 Cat X)
CPU Unit CON Unit
8
1
2
3
4 5
6 7
6 7
8
1
2
3
4
5
Rear View Front View
1 Connect to 5VDC power
supply
2 Service port 1
3 Connect to interconnect cable 1
4 To CPU: USB-HID
5 To CPU: DVI-D
6 Service port 2
7 Connect to interconnect cable 2
8 To CPU: USB 2.0
1 Connect to 5VDC power
supply
2 Service port 1
3 Connect to interconnect cable 1
4 Connect to USB-HID devices
5 Connect to DVI monitor
6 Service port 2
7 Connect to interconnect cable 2
8 Connect to USB 2.0 devices
Pos: 17 /806-IHSE/Besc hreibung/Gerätea nsichten/477- xx_COMP/1STM / -1STS (USB 2.0 Glasf aser) @ 6\mod_1299603305 359_6.doc @ 49208 @ 3
