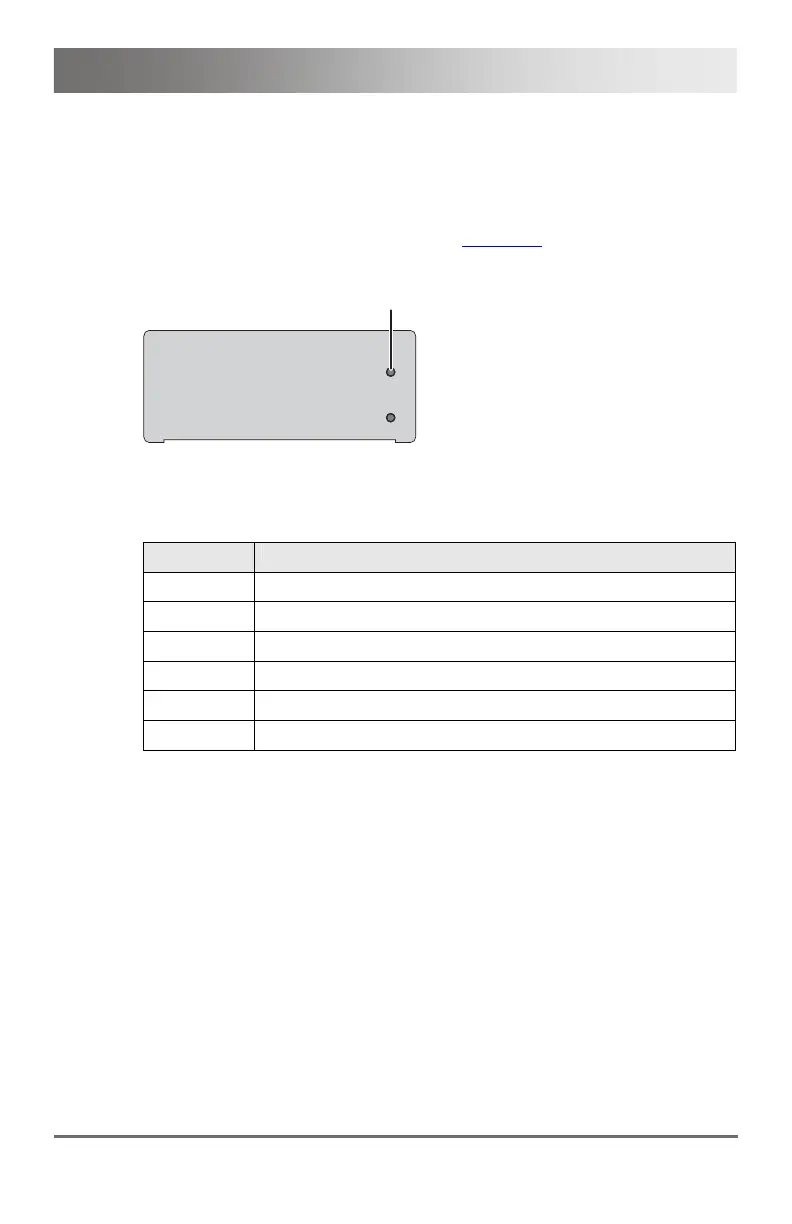

3.7.4 Status VGA / DVI-I (Option)
The KVM Extender with VGA / DVI-I input is fitted with a multi-color LED
on the front side of the CPU Unit for indication of connection status.
Further information are available via on screen display (OSD) (see manual
for the Media / DVI Converter K238-5V (Download)).
CPU Unit
1
Front View
LED 1: Connection Status VGA / DVI-I
LED Farbe Description
Dark Red No video signal; monitor not detected
Red Video signal not supported; monitor not detected
Green Video signal supported; monitor not detected
Blue No video signal; monitor detected
Violet Video signal not supported; monitor detected
Light Blue Video signal supported; monitor detected
